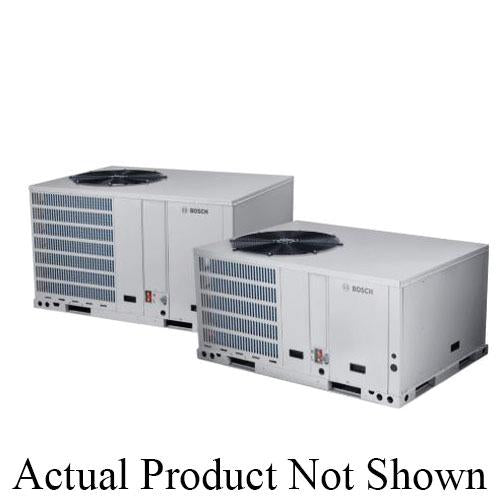

Bosch bpha-36rcb-m16s idp plus series bpha inverter ducted packaged heat pump 3 ton nominal

Product Description

The BOSCH BPHA-36RCB-M16S Inverter Ducted Packaged Heat Pump is designed for efficient heating and cooling, offering a 3 ton nominal capacity. This IDP Plus Series unit operates on 208/230 V, 1 ph, 60 Hz power, delivering 34200 Btu/hr cooling and 34600 Btu/hr heating. It features a modulating inverter drive and uses R-454B refrigerant, providing a 16 SEER and 8.1 HSPF rating for balanced efficiency and comfort.

• Utilizes R-454B refrigerant, meeting low-global warming potential (Low-GWP) requirements.
• Features a fully modulating inverter drive for precise temperature matching and reduced energy spikes.
• Achieves up to 16 SEER and 8.1 HSPF for high efficiency and whisper-quiet operation.

Product Highlights

This IDP Plus Series heat pump offers efficient, quiet, and precise climate control with a low-GWP refrigerant.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BPHA-36RCB-M16S

Technical Specifications

• Amperage Rating: 2.1 A
• CFM Rating: 1200 cfm
• Compressor Type: Rotary
• Configuration: Horizontal
• Connection Size: 3/4 in
• Connection Type: NPT
• Cooling BTU Rating: 34200 Btu/hr
• Drive Type: Modulating Inverter
• EER Rating: 9
• Finish: Powder-Painted
• Frequency Rating: 60 Hz
• Fuse Rating: 35 A
• HP Rating: 1/3 hp
• HSPF Rating: 8.1
• Heating BTU Rating: 34600 Btu/hr
• Material: Steel
• Model: BPHA
• Nominal Capacity: 3 ton
• Number of Stages: 4
• Phase: 1 ph
• Refrigerant Type: R-454B
• Rotational Speed: 200 to 1050 rpm
• SEER Rating: 16
• Series: IDP Plus Series
• Voltage Rating: 208/230 V
• Wattage: 3.07 kW
• Type: Inverter Ducted Package Unit
• Application: Heat Pump
