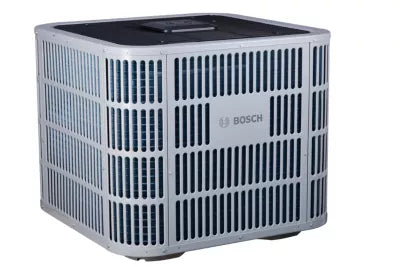

Bosch bovb-36rtb-m20s Heat Pump Inverter 20 SEER2 3 Ton

Product Description

The BOSCH bovb-36rtb-m20s is a 3-ton inverter-driven heat pump condensing unit rated up to 20 SEER2, designed for R454B refrigerant and built for high-efficiency residential and light-commercial applications. It runs on 208-230/1/60 power and uses an inverter-driven rotary compressor that modulates from 35% to 138% capacity in cooling and 34% to 130% in heating, adjusting in 1% increments for precise load matching. The outdoor coil uses copper tube construction with hydrophilic aluminum fins, and the 10-speed ECM outdoor fan motor keeps operation quiet and efficient. Licensed HVAC technicians perform the installation and commissioning of this unit.

This condensing unit is a component of the Bosch IDS Premium Connected Series and is sized for 3-ton applications. It supports optional communication with the Bosch BOVA20 and BIVA20 air handler units when paired correctly. The unit is compatible with most standard 24 VAC heat pump thermostats, making it a practical fit for new installations and like-for-like system upgrades where R454B refrigerant is specified. Its compact footprint of 29-1/8 inches wide by 29-1/8 inches deep simplifies placement in tight equipment yards and rooftop applications.

Key Features

• Inverter-driven rotary compressor with 35%-138% speed range in cooling and 34%-130% in heating, modulating in 1% increments
• Up to 20 SEER2 efficiency rating; designed for R454B refrigerant
• 10-speed ECM outdoor fan motor for whisper-quiet, efficient operation
• Outdoor coil rated for 1000-hour salt spray resistance per ASTM B117
• Multiple system protections: high-pressure switch, low-pressure transducer, compressor liquid return, high/low voltage, overcurrent, and IPM board thermal protection
• Intelligent Oil Return Technology and standard compressor sound blanket included
• AHRI certified and ETL listed

Compatibility

Designed for use within the Bosch IDS Premium Connected Series; supports optional communication with the Bosch BOVA20 and BIVA20 air handler units. Compatible with most standard 24 VAC heat pump thermostats.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R454B refrigerant. Disconnect and lock out all electrical power before servicing the unit. Follow all local mechanical and electrical codes, including applicable sections of the NEC, when routing wiring and sizing disconnect means. Do not operate the unit without verifying refrigerant charge, airflow, and crankcase heater energization per the manufacturer installation manual.

Technical Specifications

• Efficiency Rating: Up to 20 SEER2
• Capacity: 3 Ton
• Refrigerant: R454B
• Voltage: 208-230/1/60
• Compressor Type: Inverter-Driven Rotary
• Compressor Speed Range (Cooling): 35%-138%
• Compressor Speed Range (Heating): 34%-130%
• Outdoor Fan Motor: 10-Speed ECM
• Coil Construction: Copper tube with hydrophilic aluminum fins
• Unit Width: 29-1/8 inches
• Unit Depth: 29-1/8 inches
• Salt Spray Rating: 1000 hours per ASTM B117
• Certifications: AHRI Certified, ETL Listed
• Manufacturer Part Number (Alt): 8-733-982-679

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: bovb-36rtb-m20s
