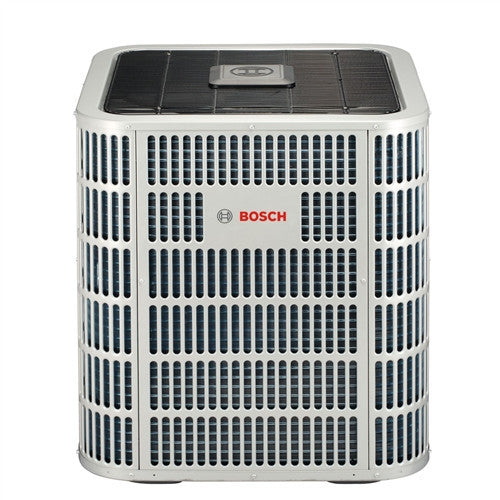

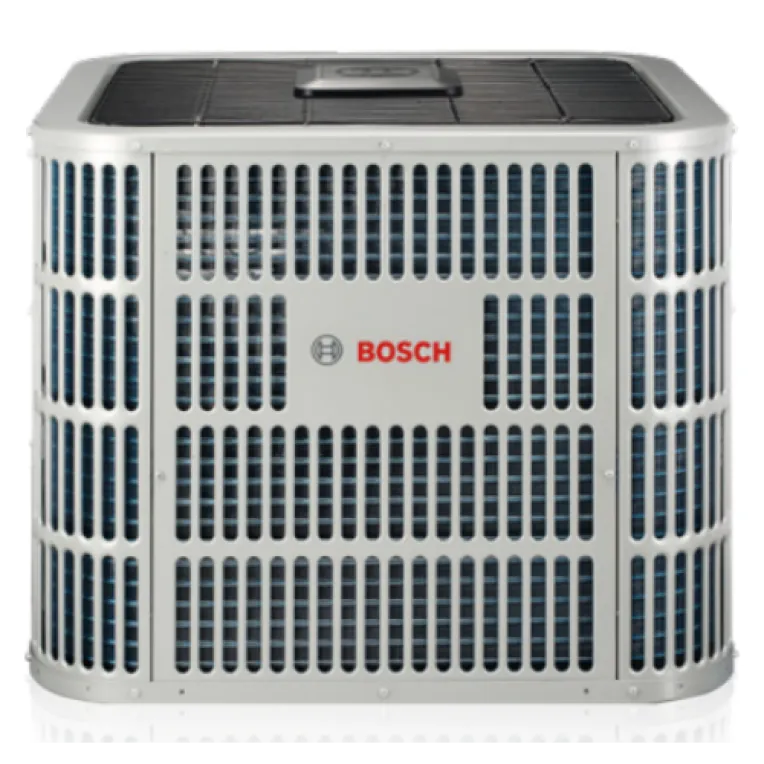

Bosch BOVA36HDN1M15G 3 Ton Heat Pump Inverter 15 SEER

Product Description

The Bosch BOVA36HDN1M15G is a 3 Ton Heat Pump Inverter from the Inverter Ducted Split Family (IDS) with 15 SEER and R410A refrigerant. It features an inverter-driven rotary compressor, a high-pressure switch, and a low-pressure transducer. Designed for residential applications, this unit offers efficient and reliable performance.

• Equipped with a crankcase heater and intelligent oil return technology.
• Features IPM and electronic control board high-temperature protection.
• Operates at 208/230V and includes a 10-year Residential Limited Warranty.

Product Highlights

This Bosch heat pump provides efficient heating and cooling with quiet operation and intelligent control features.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BOVA36HDN1M15G
• Country of Origin: CHINA

Technical Specifications

• Product code: BOVA36HDN1M15G
• Manufacturer: Bosch
• SKU: BOVA36HDN1M15G
• Dimensions (L x W x H): 28.00in x 28.00in x 25.00in
• Cooling BTU: 34,200
• EER: 10.0-12.5
• Electrical Voltage: 208/230V 1Ph, 60Hz
• Fuse: 45
• Heat Capacity: 35,000 Btu
• HSPF: 8.5-9.5
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Refrigerant Type: R-410A
• Tonnage: 3 Ton
• SEER2: 15
• Product Type: Condenser
• Operating Mode: Heat Pump
• Nominal Cooling (Tons): 36000
• Electrical Designation: 1-60-208/230
• Compressor Speed: Inverter
• Building Type: Residential
• Minimum Circuit Breaker: 22.9
• Rated Load Amperes (RLA): 19
• Locked Rotor Amperes (LRA): 45
• Length (inches): 28
• Height (inches): 24.9375
• Width (inches): 28
• BTU Cooling Rating: 36,000 BTU/h
• BTU Heating Rating: 36,000 BTU/h
• Compressor Type: Rotary
• Defrost Type: Demand / Sensor-Based
• Depth: 28 in
• EER (Custom): 10.0~11.0~12.0
• EER2 Range: 8.5-11.8
• EER2: 8.0~9.0~10.0~11.0
• Energy Star Certified: Yes
• HSPF (Custom): 8.0~9.0
• HSPF2 Range: 7.5-9.0
• HSPF2: 7.0~8.0~9.0
• Height: 24.938 in
• Liquid Line Size: 3/8 in
• Max Breaker Size: 45 A
• Minimum Circuit Ampacity (MCA): 26.7 A
• Number of Stages: Inverter
• Phase: 1 ph
• Product Family: IDS Light
• Product Weight: 134 lbs
• Shipping Weight: 162 lbs
• Sound Level: 78 dB(A)
• Suction Line Size: 3/4 in
• Voltage Rating: 208/230 V
• Brand Name: BOSCH
• Manufacturers: Robert Bosch
• MPN: BOVA36HDN1M15G
