Bosch BOVA36HDN1M15G 3 Ton Heat Pump Inverter 15 SEER

Brand: BOSCH
SKU: BOVA36HDN1M15G
Availability: Out Of Stock
Final Sale / No Returns
$2,785.77
$2,785.77

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 134 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

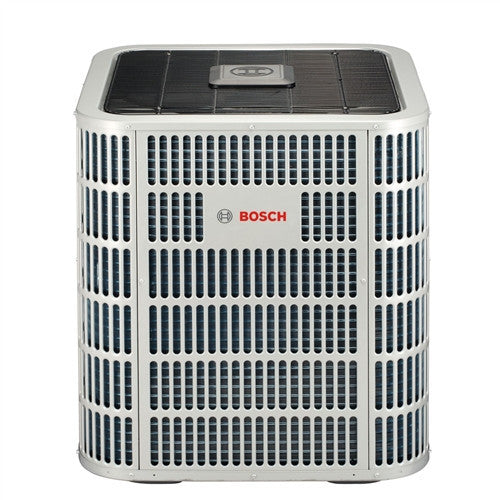

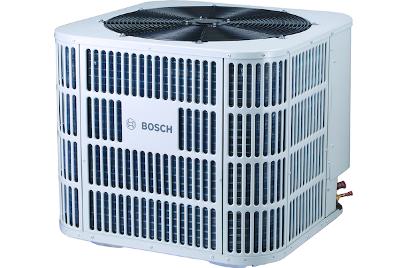

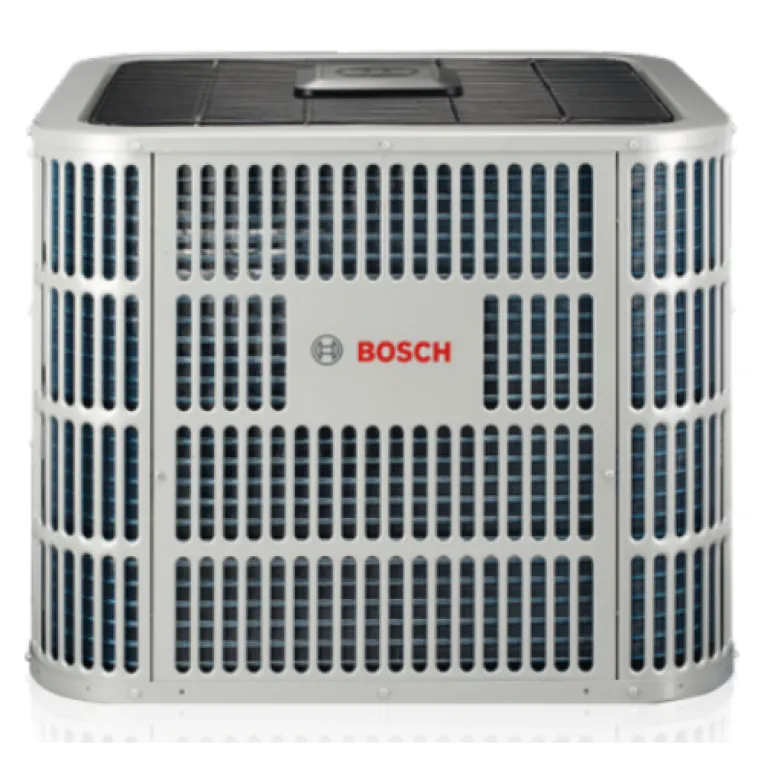

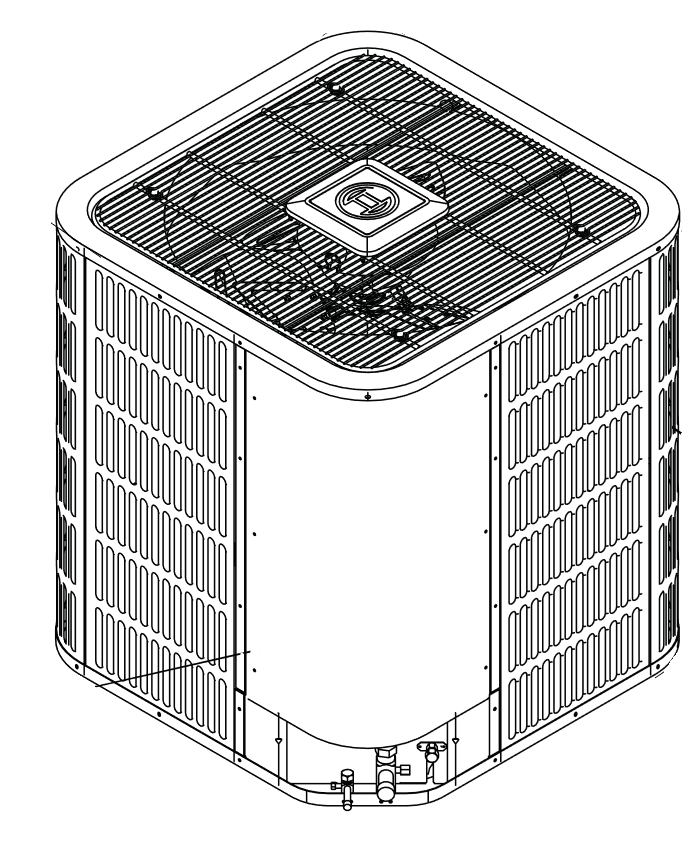

The Bosch BOVA36HDN1M15G is a 3 Ton Heat Pump Inverter from the Inverter Ducted Split Family (IDS) with 15 SEER and R410A refrigerant. It features an inverter-driven rotary compressor, a high-pressure switch, and a low-pressure transducer. Designed for residential applications, this unit offers efficient and reliable performance.

  • Equipped with a crankcase heater and intelligent oil return technology.
  • Features IPM and electronic control board high-temperature protection.
  • Operates at 208/230V and includes a 10-year Residential Limited Warranty.

Product Highlights

This Bosch heat pump provides efficient heating and cooling with quiet operation and intelligent control features.

Product Information

Standard Information

  • Brand: BOSCH
  • Manufacturer Part Number: BOVA36HDN1M15G
  • Country of Origin: CHINA
Technical Specifications
Product code
BOVA36HDN1M15G
Manufacturer
Bosch
SKU
BOVA36HDN1M15G
Dimensions (L x W x H)
28.00in x 28.00in x 25.00in
Cooling BTU
34,200
EER
10.0-12.5
Electrical Voltage
208/230V 1Ph, 60Hz
Fuse
45
Heat Capacity
35,000 Btu
HSPF
8.5-9.5
Liquid Line
3/8"
Suction Line
3/4"
Refrigerant Type
R-410A
Tonnage
3 Ton
SEER2
15
Product Type
Condenser
Operating Mode
Heat Pump
Nominal Cooling (Tons)
36000
Electrical Designation
1-60-208/230
Compressor Speed
Inverter
Building Type
Residential
Minimum Circuit Breaker
22.9
Rated Load Amperes (RLA)
19
Locked Rotor Amperes (LRA)
45
Length (inches)
28
Height (inches)
24.9375
Width (inches)
28
BTU Cooling Rating
36,000 BTU/h
BTU Heating Rating
36,000 BTU/h
Compressor Type
Rotary
Defrost Type
Demand / Sensor-Based
Depth
28 in
EER (Custom)
10.0~11.0~12.0
EER2 Range
8.5-11.8
EER2
8.0~9.0~10.0~11.0
Energy Star Certified
Yes
HSPF (Custom)
8.0~9.0
HSPF2 Range
7.5-9.0
HSPF2
7.0~8.0~9.0
Height
24.938 in
Liquid Line Size
3/8 in
Max Breaker Size
45 A
Minimum Circuit Ampacity (MCA)
26.7 A
Number of Stages
Inverter
Phase
1 ph
Product Family
IDS Light
Product Weight
134 lbs
Shipping Weight
162 lbs
Sound Level
78 dB(A)
Suction Line Size
3/4 in
Voltage Rating
208/230 V
Brand Name
BOSCH
Manufacturers
Robert Bosch
MPN
BOVA36HDN1M15G
