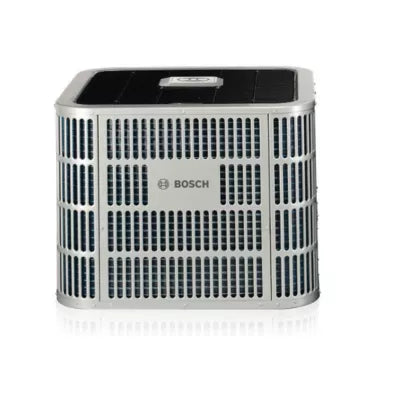

Bosch bova-60rxb-m15s 5 Ton 15 SEER2 Heat Pump Inverter R454B

Product Description

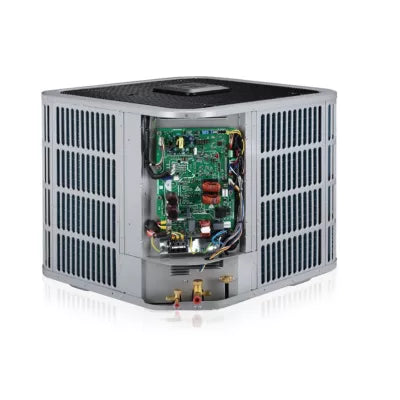

The BOSCH bova-60rxb-m15s is a 5-ton inverter-driven heat pump condensing unit from the BOVA Light Series, rated at 15 SEER2 and designed for R454B refrigerant. The unit uses an inverter-driven rotary compressor with a modulation range of 33% to 128% speed in 1% increments, allowing precise capacity matching to load conditions. A standard crankcase heater and compressor sound blanket are included. AHRI certification and ETL listing confirm the unit meets established efficiency and safety standards. Licensed HVAC technicians install and commission this type of equipment in residential and light-commercial split-system applications.

This condensing unit is engineered for split-system heat pump installations operating on 208-230/1/60 power. The BOVA series targets residential and light-commercial builds where inverter-driven variable-capacity performance is required. The unit is suited for new construction and retrofit projects where R454B low-GWP refrigerant compliance is a priority. Capacity range spans 2 through 5 tons across the BOVA platform, with this model representing the 5-ton configuration.

Key Features

• Inverter-driven rotary compressor with 33% to 128% speed range, modulating in 1% increments for precise load matching
• Intelligent Oil Return Technology supports compressor longevity across variable operating speeds
• Standard crankcase heater and compressor sound blanket included from the factory
• Multiple system protections: high-pressure switch, low-pressure transducer, liquid return protection, high and low compression ratio protection, compressor high-temperature protection, high and low voltage protection, overcurrent protection, and IPM and control board high-temperature protection
• Outdoor coil passes 1000-hour salt spray testing per ASTM B117, supporting use in coastal and corrosive environments
• AHRI certified and ETL listed

Compatibility

Designed for use in split-system heat pump configurations requiring R454B refrigerant and 208-230/1/60 electrical supply; intended for pairing with a compatible BOSCH air handler or fan coil unit rated for inverter-driven variable-capacity operation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for R454B refrigerant handling. Disconnect and lock out all electrical power before servicing the unit. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect sizing and ground-fault protection. Do not operate the unit without verifying correct refrigerant charge and system airflow per the manufacturer installation documentation.

Technical Specifications

• Capacity: 5 Ton
• SEER2 Rating: 15
• Refrigerant: R454B
• Voltage: 208-230 volts
• Phase: Single-phase
• Frequency: 60 Hz
• Compressor Type: Inverter-driven rotary
• Compressor Speed Range: 33% to 128%
• Certifications: AHRI certified, ETL listed
• Coil Salt Spray Rating: 1000 hours per ASTM B117
• UOM: Each

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: bova-60rxb-m15s
