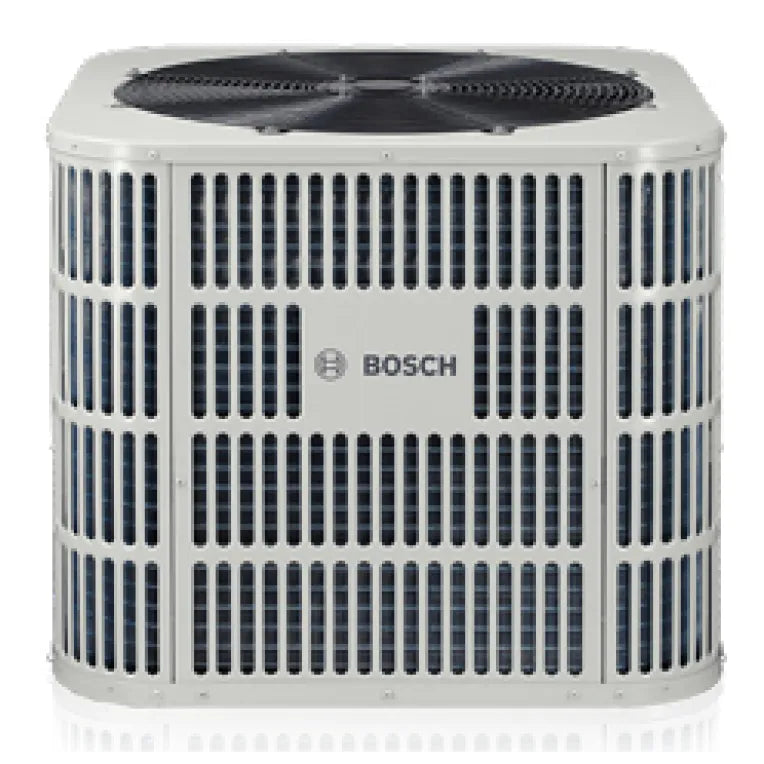

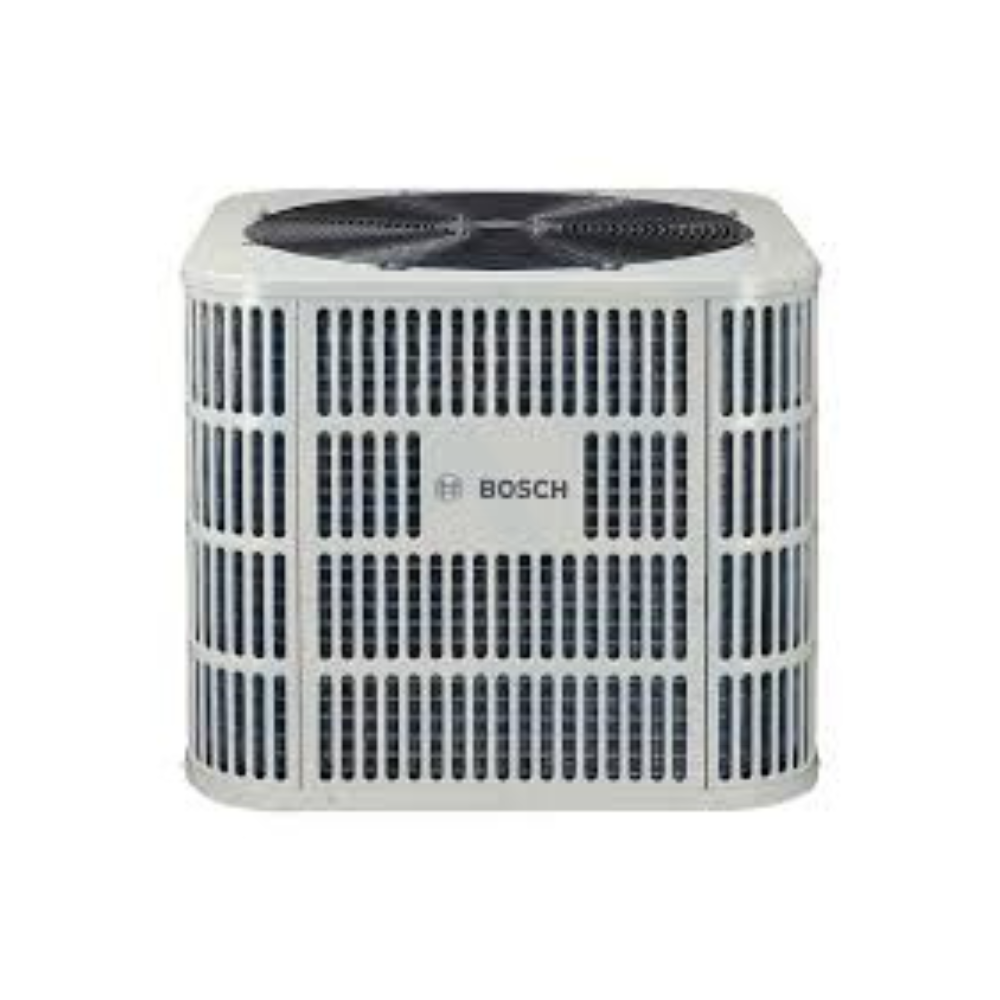

Bosch BOVA-24RXB-M15S 2 ton R-454B variable speed 15 SEER2 condensing unit 208/230 V

Product Description

The BOSCH BOVA-24RXB-M15S is a 2 Ton R-454B variable speed condensing unit designed for efficient climate control. It features an inverter compressor with 33%-128% speed modulation in 1% increments and intelligent oil return technology. This unit is AHRI certified and ETL listed, ensuring compliance with industry standards. Its robust design includes a baked-on powder paint finish and a steel louver coil guard, offering durability and protection.

• Designed to use R454B Refrigerant for environmental compliance.
• Features an Inverter Compressor with 33%-128% speed modulation in 1% increments.
• Includes multiple system protection features for enhanced operational safety and longevity.

Product Highlights

This 2 Ton condensing unit offers variable speed operation and robust protection for reliable performance.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BOVA-24RXB-M15S

Technical Specifications

• Product Code: BOVA-24RXB-M15S
• Manufacturer: Bosch
• SKU: BOVA-24RXB-M15S
• Phase: 1
• Input Voltage: 208/230
• SEER2: 15
• Refrigerant Type: R454B
• Tonnage: 2 Ton
• Application: Heat Pump
• Unit Type: Outdoor Unit
• Series: A Series
• Model: BOVA15
• Amperage: 21.8 A
• HP Rating: 1/3 hp
• Frequency: 60 Hz
• BTU/hr: 24000
• HSPF: 8.5
• Compressor Type: Rotary
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Fuse: 30 A
• Coil Rows: 1-Row
• Coil Area: 12.69 sq-ft
• FPI Coil Rating: 19 FPI
• Drive Type: Inverter
• Vent Type: Ducted
• Mounting Type: Ducted or Ductless, Floor/Surface Mount
• Material: Steel
• Finish: Baked-On Powder-Painted
• AHRI Certified: Yes
• AHRI Number: 215225088
• Product Type: Split System
• Operating Mode: Heat Pump
• Cabinet Width: 19.5"
• Product Line: Bosch IDS Light Series
• Heating Minimum Temperature: 3 F
• Cooling Minimum Temperature: 40 F
• Noise Level: 59-74.9 dB(A)
• Max Line Set Length: 100 ft
• Max Height Difference: 50 ft
