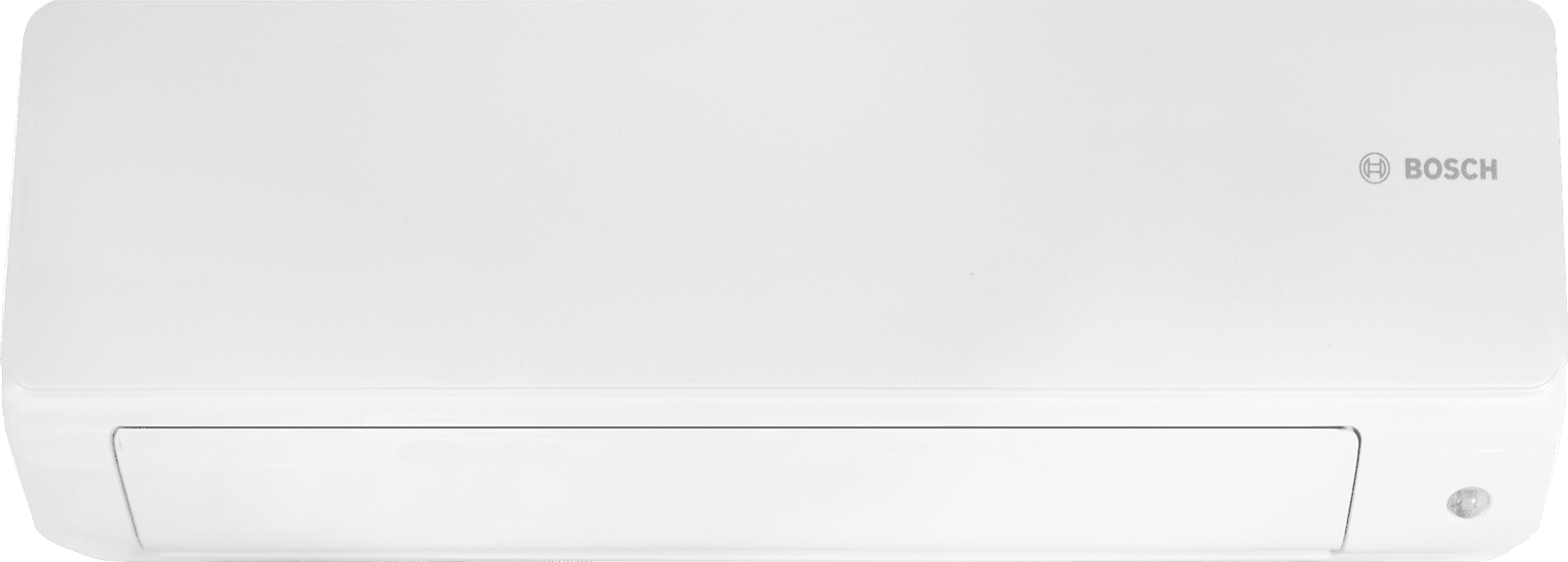

Bosch BMS500AAU0241AHWXB Climate 5000 2.0 Ton Wall-Mount Indoor Unit - R-410A 208/230V 1 ph

Product Description

The Bosch BMS500AAU0241AHWXB Climate 5000 wall-mount indoor unit provides a high-efficiency heating and cooling solution for single-zone applications. Achieving a 20.5 SEER rating, this ductless unit delivers consistent comfort with quiet operation. Designed for spaces where traditional ductwork is not feasible, it uses R-410A refrigerant and offers multiple control options to meet various comfort needs.

• High-efficiency heating and cooling solution
• 20.5 SEER rating
• Quiet operation

Product Highlights

High-efficiency, ductless indoor unit with R-410A refrigerant, multiple control options, and quiet operation.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAU0241AHWXB

Technical Specifications

• BTU Cooling Rating: 24,000 BTU/h
• BTU Heating Rating: 24,000 BTU/h
• CFM Airflow: 500-794 CFM
• Depth: 10.1 in
• EER: 13.0-13.7
• ENERGY STAR Certified: Yes
• HSPF: 10.0-12.0
• Height: 13.5 in
• Liquid Line Size: 3/8 in
• Max Breaker Size: 30 A
• Model Number: BMS500
• Motor Type: ECM
• Number of Speeds: 3
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Wall-Mount Indoor Unit
• Refrigerant Type: R-410A
• Refrigeration Control Type: EEV
• SEER: 20.5
• Sound Level: 48.5 dB(A)
• Suction Line Size: 5/8 in
• Tonnage: 2.0 Ton
• Voltage Rating: 208/230 V
• Width: 46.7 in
