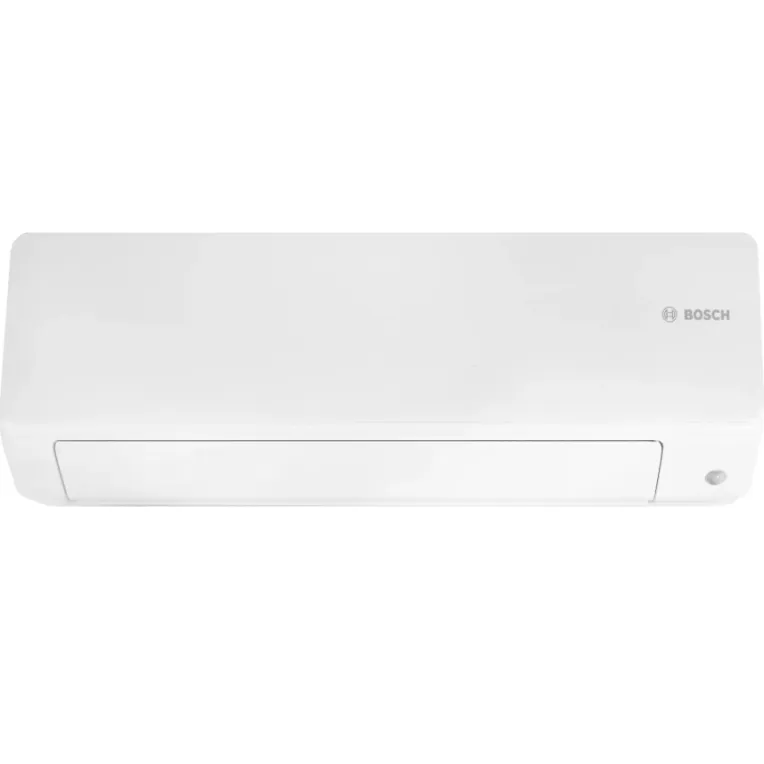

Bosch BMS500AAU0091AHWXC Wall-Mount Indoor Unit 0.75 Ton R-410A

Product Description

The Bosch BMS500AAU0091AHWXC Climate 5000 Series wall-mount indoor unit provides efficient and quiet heating and cooling for residential spaces. With a cooling capacity of 9,000 BTU/h and heating capacity of 10,000 BTU/h, it is an ideal solution for single-room applications or as part of a larger multi-zone system where ductwork is not feasible. Designed for easy installation and service, this unit offers multiple control options.

• Features an intelligent eye sensor to optimize operation and save energy.
• Operates at a low sound level of 23 dB(A) for minimal disruption.
• Designed for both single and multi-zone configurations, eliminating the need for ductwork.

Product Highlights

This ENERGY STAR certified unit delivers up to a 25.5 SEER2 rating for significant energy savings when installed as part of a matched system. Compatible with the Bosch Connected Control (BCC) Wi-Fi Thermostat family.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAU0091AHWXC
• Country of Origin: CHINA

Technical Specifications

• BTU Cooling Rating: 9,000 BTU/h
• BTU Heating Rating: 10,000 BTU/h
• CFM Airflow Range: 176.47-335.29 CFM
• CFM Airflow: 100~200~300~400 CFM
• Depth: 9.1 in
• EER: 15.0
• EER2: 25.0
• ENERGY STAR Certified: Yes
• HSPF: 12.3
• HSPF2: 12.0
• Liquid Line Size: 1/4 in
• Max Breaker Size: 15 A
• Model Number: BMS500
• Motor Type: ECM
• Number of Speeds: 3
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Wall-Mount Indoor Unit
• Refrigerant Type: R-410A
• Refrigeration Control Type: EEV
• SEER: 25.5
• SEER2: 25.0
• Shipping Weight: 30.64 lbs
• Sound Level: 38 dB(A)
• Suction Line Size: 3/8 in
• Tonnage: 0.75 Ton
• Voltage Rating: 208/230 V
• Width: 33.4 in
• Mounting: Wall Mounted
• BtuH Cooling: 9000
• BtuH Heating: 10000
• Liquid Conn.: 1/4"
• Nom. Capacity: 9,000
• Remote Included: Yes
• Sound Pressure Cooling dBA: 38
• Sound Pressure Heating dBA: 38
• Style: Wall Mounted
• Suction Fitting: 3/8"
• System #: AAU009-1AHWXC
• Unit Type: Wall Mounted
• Volts: 208/230
• Wifi Enabled: N
