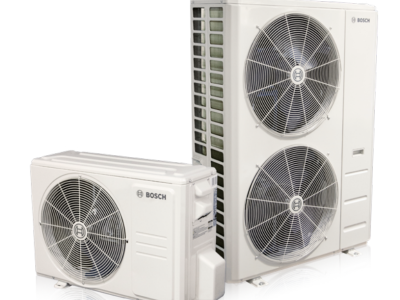

Bosch BMS500AAS0181CSXHC Climate 5000 1.5 Ton Outdoor Unit

Product Description

The Bosch Climate 5000 BMS500AAS0181CSXHC is a single-zone ductless mini-split outdoor heat pump designed for residential applications where ductwork is not an option. This ENERGY STAR certified unit delivers variable-stage performance for precise temperature control and energy savings. It maintains consistent heating capacity in freezing temperatures and provides cooling operation in sub-zero conditions, ensuring year-round comfort.

• Delivers 100% heating capacity in ambient temperatures between -5°F and 5°F, depending on system configuration.
• Provides reliable low-ambient cooling operation in temperatures down to -22°F without requiring an additional accessory kit.
• Includes a factory-installed base pan heater to prevent ice accumulation and ensure proper drainage in cold climates.

Product Highlights

This Bosch Climate 5000 heat pump offers efficient and reliable comfort with precise temperature control and energy savings. Engineered for superior performance in extreme weather conditions.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAS0181CSXHC

Technical Specifications

• BTU Cooling Rating: 18,000 BTU/h
• BTU Heating Rating: 18,000 BTU/h
• Compressor Type: Rotary
• Depth: 13.46 in
• EER: 12.5
• EER2 Range: 11.7-12.5
• ENERGY STAR Certified: Yes
• HSPF: 10.3-13.0
• HSPF2 Range: 9.5-11.3
• Height: 26.5 in
• Liquid Line Size: 1/4 in
• Max Breaker Size: 25 A
• Model Number: BMS500
• Number of Stages: Variable-Stage
• Number of Zones: 1
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Refrigerant Type: R-410A
• SEER: 21.5
• SEER2 Range: 18.0-21.5
• Suction Line Size: 1/2 in
• Tonnage: 1.5 Ton
• Voltage Rating: 208/230 V
• Width: 35.04 in
• Nominal Cooling: 18000
• Nominal Heating: 18000
• Compressor Speed: Inverter
• Building Type: Residential
• Circuit Breaker Capacity: 25.0
