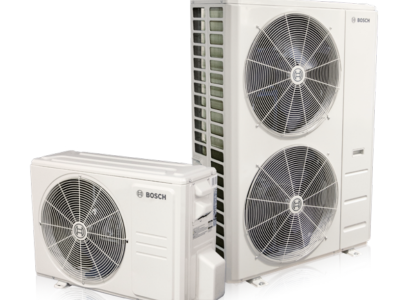

Bosch BMS500AAM0481CSXHC Climate 5000 Max Performance 4 Ton Five Zone Mini Split Heat Pump Outdoor Unit

Product Description

The Bosch BMS500AAM0481CSXHC Climate 5000 Max Performance is a ductless system that uses electricity to pump refrigerant and transfer heat. In cooling mode, the system efficiently moves heat from the inside to the outdoors, while in heating mode, it absorbs heat from outside and transfers it inside. It provides high efficiency comfort and can help lower energy costs with its advanced energy saving inverter drive technology.

• Minimum 2, maximum 5 indoor units.
• 4 ton cooling capacity - 48,000 BTU's heating capacity.
• 100% heating capacity between -5 degrees and 5 degrees, depending on system configuration.

Product Highlights

The Bosch Climate 5000 offers efficient heating and cooling with inverter technology, a wide operating range, and compatibility with Bosch Connected Control Wi-Fi thermostats.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500AAM0481CSXHC

Technical Specifications

• Nominal Cooling: 48000
• Nominal Heating: 49000
• Indoor Matchup: 5
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 21.8
• EER: 11.7
• HSPF: 9.8
• Compressor Speed: Inverter
• Suction Line Size: 3/8, 3/8, 3/8, 1/2, 1/2
• Suction Line Quantity: 5
• Liquid Line Size: 1/4
• Liquid Line Quantity: 5
• Circuit Breaker Capacity: 50.0
• Building Type: Residential
• Length (inches): 17.60
• Height (inches): 52.50
• Width (inches): 41.70
• BTU Cooling Rating: 48,000 BTU/h
• BTU Heating Rating: 49,000 BTU/h
• Compressor Type: Rotary
• EER2: 11.7
• ENERGY STAR Certified: Yes
• HSPF2: 9.8
• Max Breaker Size: 50 A
• Model Number: BMS500
• Number of Stages: Variable-Stage
• Number of Zones: 5
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Voltage Rating: 208/230 V
• Tonnage: 4.0 Ton
