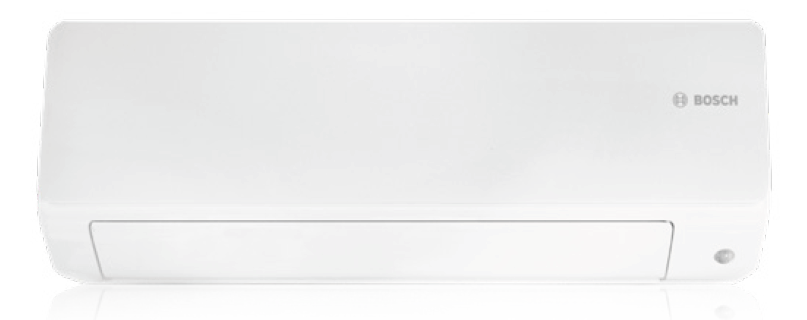

Bosch BMS500-AAU036-1AHWXC Ductless Mini-Split Systems 36000 BTU

Product Description

The BOSCH BMS500-AAU036-1AHWXC ductless mini-split system delivers 36000 BTU/h of heating and cooling for light commercial and residential applications. Designed for optimal indoor comfort, this wall-mounted unit maintains consistent temperature and humidity levels without ductwork. It features an intelligent eye sensor and is compatible with the Bosch Connected Control (BCC) Wi-Fi Thermostat family.

• 100% heating capacity between -5°F and 5°F, depending on system configuration
• No additional accessory needed for Low Ambient Cooling operation down to -22°F with MAX Performance System
• Whisper quiet operation: ODU as low as 53 dB, IDU as low as 23 dB(2)

Product Highlights

This ductless mini-split system is efficient, quiet, and easy to install, making it a versatile solution for various spaces.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500-AAU036-1AHWXC
• Country of Origin: CHINA

Technical Specifications

• BtuH Cooling: 36000
• BtuH Heating: 36000
• Depth: 11 in
• Height: 14.6 in
• Liquid Line Size: 3/8 in
• Nom. Capacity: 36,000
• Refrigerant: R-410A
• Remote Included: Yes
• Sound Pressure Cooling dBA: 47.5
• Sound Pressure Heating dBA: 47.5
• Style: Wall Mounted
• Suction Fitting: 5/8"
• System #: AAU036-1AHWXC
• Unit Type: Wall Mounted
• Volts: 208/230 V
• Width: 46.9 in
• Wifi Enabled: N
• Zone Type: Multi-Zone
• Nominal cooling: 36000
• Nominal Heating: 36000
• Electrical Designation: 1-60-208/230
• HSPF: 8.0
• Suction Line Size: 5/8 in
• Length (inches): 11.00
• Height (inches): 14.60
• Width (inches): 46.90
• Thermostat: Remote
• Configuration: Wall Mounted
• BTU Cooling Rating (Custom): 36,000 BTU/h
• BTU Cooling Rating: 36,000 BTU/h
• BTU Heating Rating (Custom): 36,000 BTU/h
• BTU Heating Rating: 36,000 BTU/h
• CFM Airflow (Custom): 300~400~500~600~700 CFM
• CFM Airflow: 382.35-639.41 CFM
• EER2 (Custom): 8.0
• EER2: 8.5
• ENERGY STAR Certified: No
• Max Breaker Size: 15 A
• Model Number: BMS500
• Motor Type: ECM
• Number of Speeds: 3
• Packaged Depth: 46.9 in
• Packaged Height: 14.6 in
• Packaged Width: 11 in
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Wall-Mount Indoor Unit
• Refrigerant Type: R-410A
• SEER2 (Custom): 20.0
• SEER2: 20.0
• Shipping Weight: 59.3 lbs
• Sound Level: 47.5 dB(A)
• Tonnage (Custom): 3.0 Ton
• Tonnage: 3.0 Ton
• Voltage Rating: 208/230 V
