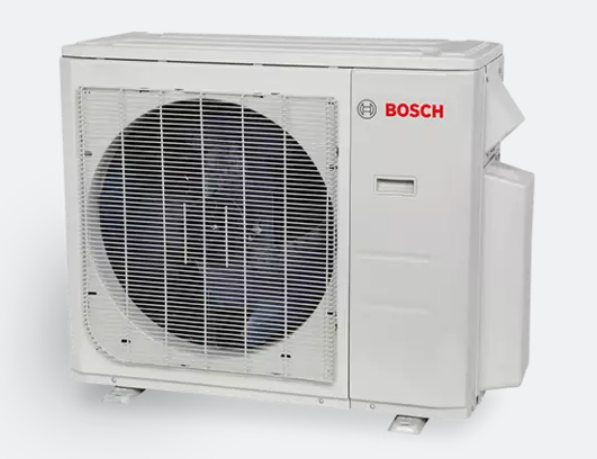

Bosch BMS500-AAS012-1CSXHB Climate 5000 Max Performance 1 Ton Mini Split Heat Pump Outdoor Unit

Product Description

The Bosch BMS500-AAS012-1CSXHB ductless system uses electricity to pump refrigerant and transfer heat. In cooling mode, it efficiently moves heat from inside to the outdoors. In heating mode, it absorbs heat from outside and transfers it inside. It provides high efficiency comfort and can help lower energy costs using advanced energy saving inverter drive technology, with sound levels as low as 55 dB.

• Can connect with 1 indoor unit
• 1 ton cooling capacity - 12,000 BTU's heating capacity
• 100% heating capacity between -5 degrees and 5 degrees, depending on system configuration

Product Highlights

This mini-split heat pump offers efficient heating and cooling with quiet operation and compatibility with Bosch Connected Control Wi-Fi thermostats.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500-AAS012-1CSXHB

Technical Specifications

• Nominal Cooling: 12000
• Nominal Heating: 12000
• Indoor Matchup: 1
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 22.50
• EER: 13
• HSPF: 12.0
• Compressor Speed: Inverter
• Suction Line Size: 1/2
• Suction Line Quantity: 1
• Liquid Line Size: 1/4
• Liquid Line Quantity: 1
• Building Type: Residential
• Length (inches): 13.10
• Height (inches): 21.80
• Width (inches): 31.50
• Amperage Rating: 9 A
• Compressor Type: Twin-Rotary
• Cooling BTU Rating: 12,000 Btu/hr
• Cooling CFM Rating: 1177 cfm
• Cooling Operating Temperature: -22 to 122 deg F
• Cooling Sound Level: 56 dBA
• Domestic/Import: Domestic
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• Heating BTU Rating: 12,000 Btu/hr
• Heating Operating Temperature: -22 to 86 deg F
• Mounting Type: Wall
• Overall Height: 21.8 in
• Overall Length: 13.1 in
• Overall Width: 31-1/2 in
• Phase: 1 ph
• Power Rating: 870 W
• Refrigerant Type: R-410A
• Series: Climate 5000 Series
• Tonnage: 1 Ton
• Voltage Rating: 208/230 V
