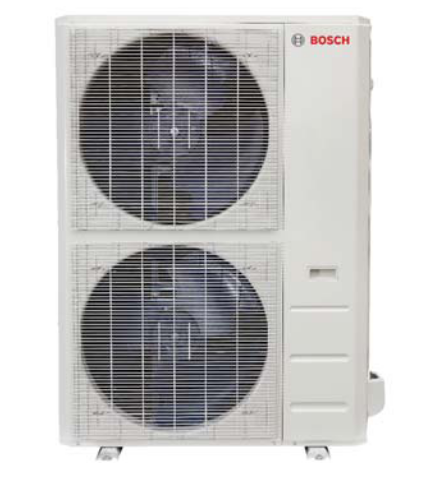

Bosch BMS500-AAM048-1CSXRA Climate 5000 4 Ton Five Zone Mini Split Heat Pump Outdoor Unit

Product Description

The Bosch BMS500-AAM048-1CSXRA Climate 5000 multi-zone heat pump provides efficient climate control for residential and light commercial applications. This 4 ton outdoor unit utilizes electricity to pump refrigerant and transfer heat. It features advanced energy saving inverter drive technology, with sound levels as low as 64 dB.

• Minimum 2 and maximum 5 number of indoor units
• 48,000 BTU's heating and cooling capacity
• Operating range for heating: -13 degrees to 86 degrees

Product Highlights

The Bosch Climate 5000 is ENERGY STAR certified and delivers reliable performance and energy savings. It connects with two to five indoor units for customized comfort.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500-AAM048-1CSXRA

Technical Specifications

• Nominal Cooling: 48000
• Nominal Heating: 48000
• Indoor Matchup: 5
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 20.5
• EER: 10.1
• HSPF: 11.5
• Compressor Speed: Inverter
• Suction Line Size: 3/8, 3/8, 3/8, 1/2, 1/2
• Suction Line Quantity: 5
• Liquid Line Size: 1/4 in
• Liquid Line Quantity: 5
• Building Type: Residential
• Length (inches): 16.30
• Height (inches): 52.50
• Width (inches): 41.10
• BTU Cooling Rating: 49,000 BTU/h
• BTU Heating Rating: 50,000 BTU/h
• Compressor Type: Rotary
• ENERGY STAR Certified: Yes
• Number of Stages: Variable-Stage
• Number of Zones: 5
• Phase: 1 ph
• Product Family: Climate 5000
• Product Type: Heat Pump
• Refrigerant Type: R-410A
• Sound Level: 64 dB(A)
• Tonnage: 3.0 Ton
• Voltage Rating: 208/230 V
