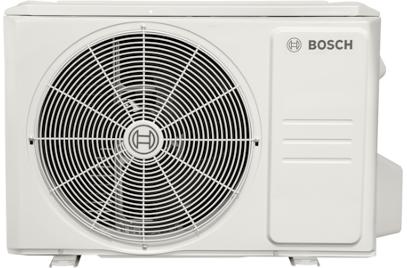

Bosch BMS500-AAM036-1CSXRC Climate 5000 3 Ton Four Zone Mini Split Heat Pump Outdoor Unit

Product Description

The Bosch BMS500-AAM036-1CSXRC ductless system transfers heat efficiently, moving it from inside to outside in cooling mode and vice versa in heating mode. It uses a 3-inch hole for electrical, refrigerant, and condensate lines. This system provides efficient comfort and can lower energy costs with its advanced inverter drive technology. Designed for residential buildings.

• Minimum 2, maximum 4 indoor units
• 3 ton cooling capacity with 37,000 BTU's heating capacity
• 100% heating capacity between -5 degrees and 5 degrees, depending on system configuration

Product Highlights

The Bosch BMS500-AAM036-1CSXRC offers efficient heating and cooling with its inverter technology and wide operating range. It is compatible with Bosch Connected Control Wi-Fi thermostats.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMS500-AAM036-1CSXRC
• Country of Origin: CHINA

Technical Specifications

• Nominal Cooling: 36000
• Nominal Heating: 37000
• Indoor Matchup: 4
• Electrical Designation: 1-60-208/230
• Refrigerant: R410A
• SEER: 23.9
• EER: 11.7
• HSPF: 8.7
• Compressor Speed: Inverter
• Suction Line Size: 3/8, 3/8, 3/8, 1/2
• Suction Line Quantity: 4
• Liquid Line Size: 1/4
• Liquid Line Quantity: 4
• Circuit Breaker Capacity: 40.0
• Building Type: Residential
• Length (inches): 17.90
• Height (inches): 31.89
• Width (inches): 40.55
• Cooling Temperature Range °F: - 13 - 122
• Heating Temperature Range °F: - 13 - 86
• Max. # of Connectable Indoor Units: 4
• Volts: 230
• Max. Fuse Size: 40
• Unit Type: HMSV-A-CB
• Zone Type: Multi
• BtuH Cooling: 36,000
• BtuH Heating: 37,000
• CFM High: 2,147
• EER2 Ducted: 11.00
• EER2 Mixed: 11.40
• EER2 Non-Ducted: 11.70
• Energy Star: Y
• HSPF2 Ducted: 9.20
• HSPF2 Mixed: 9.40
• HSPF2 Non-Ducted: 9.50
• Liquid Conn.: 1/4"
• Max. Connectable Capacity: 48
• Max. Cooling Capacity BtuH: 40,555
• Max. Heating Capacity BtuH: 44,632
• Max. Total Pipe Length: 262.00
• Min. # of Connectable Indoor Units: 1
• Min. Connectable Capacity: 24
• Min. Cooling Capacity BtuH: 8,209
• Min. Heating Capacity BtuH: 8,008
• Min. Total Pipe Length: 25.00
• Nom. Capacity: 36,000
• SEER2 Ducted: 20.00
• SEER2 Mixed: 22.00
• SEER2 Non-Ducted: 23.90
• Sound Pressure Cooling dBA: 63
• Sound Pressure Heating dBA: 63
• Suction Fitting: 3/8"
