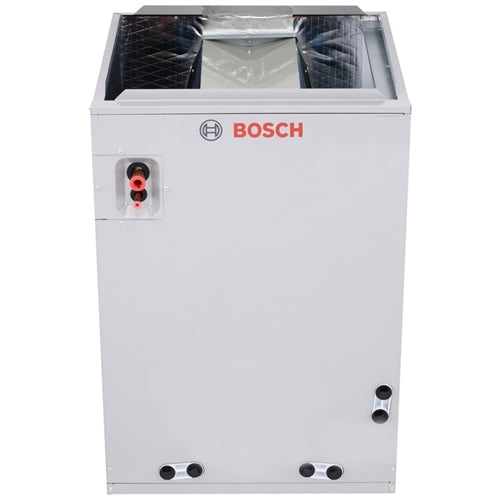

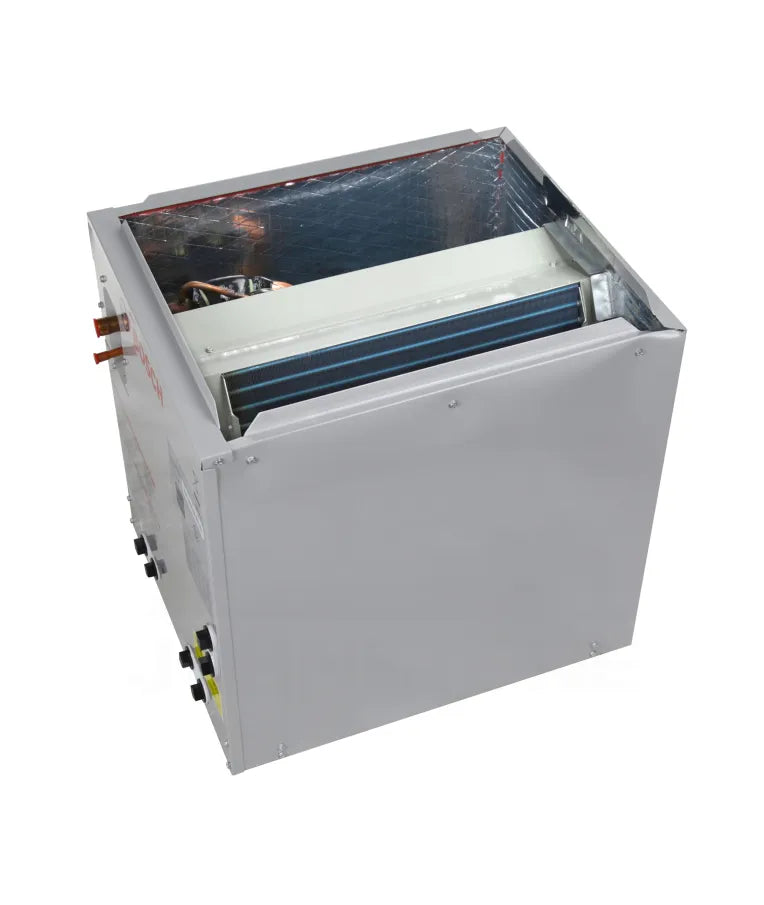

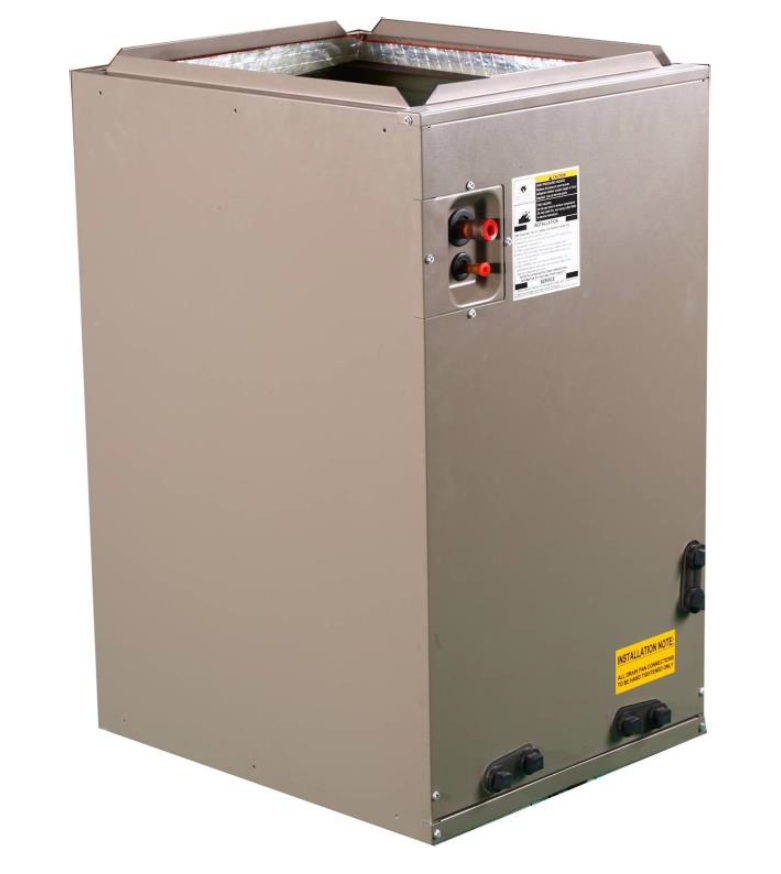

Bosch BMAC4860DNTF Coil Multi-Positioned Cased 5 Ton 24.5 inches Width

Product Description

The BOSCH BMAC4860DNTF is a multi-position cased coil with a 5-ton capacity and a 24.5" width, compatible with cooling and heat pump systems. Approved for upflow, downflow, vertical, and horizontal installation, it must be installed downstream of the furnace in furnace applications. This coil delivers comfort and efficiency when paired with a Bosch furnace and IDS outdoor condensing section.

• Approved for upflow or downflow, vertical and horizontal installation
• Must be installed downstream of the furnace in furnace applications
• Pairs with Bosch Outdoor Unit Model BOVA-60 (5 Ton)

Product Highlights

The BOSCH BMAC4860DNTF coil is designed for versatile installation and efficient performance in various HVAC configurations.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMAC4860DNTF

Technical Specifications

• Model: BMAC4860DNTF

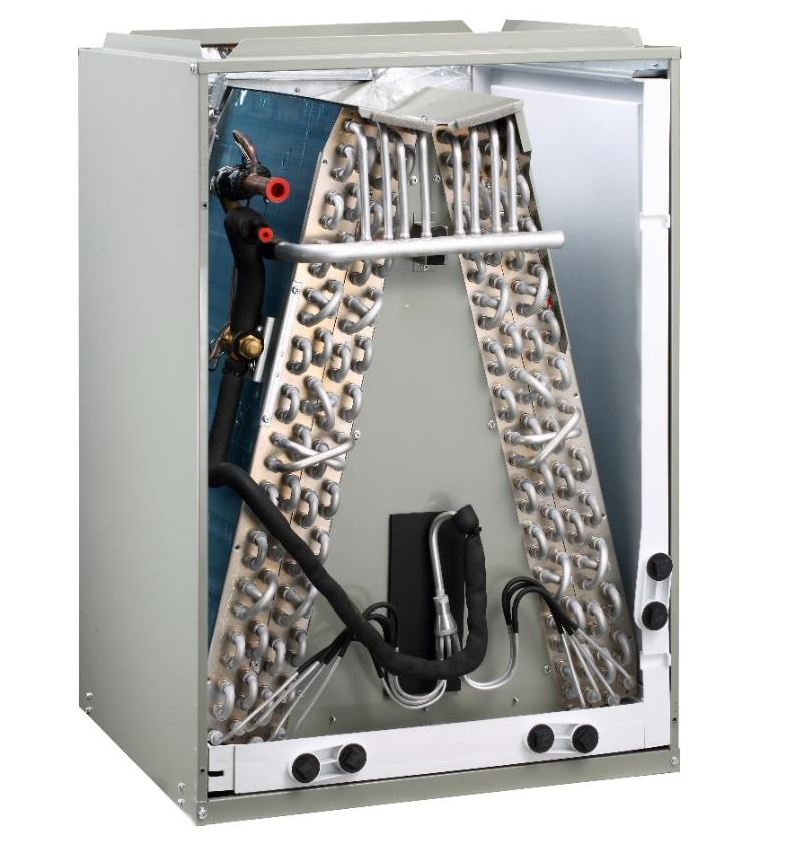

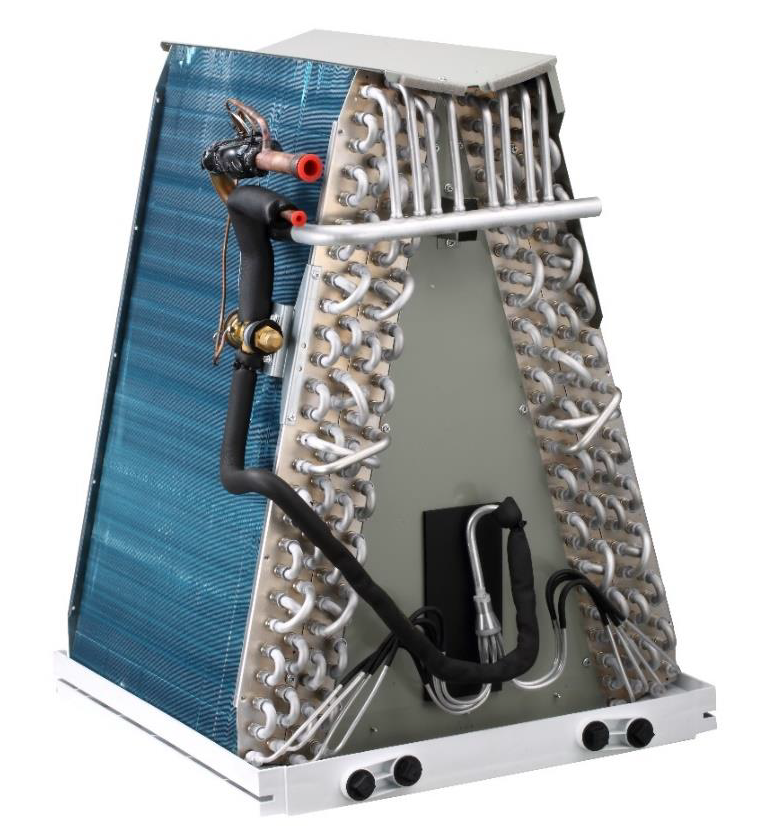

• Evaporator coil: cased, multi-poised, TXV installed
• Liquid Connection: 3/8"
• Suction Fitting: 7/8"
• Height: 30"
• Depth: 21"
• Width: 24.5"
• Product Type: Cased Coil
• Tonnage: 5.0 Ton
• Refrigerant Type: R-410A
• Airflow Direction: Multi-Position
• Cabinet Width: 24.5"
• Type: Cooling
• Material: Aluminum
• Refrigerant: R410
• Cased: Yes
• Nominal Capacity (Tons): 5
• Configuration: Multiposition
• Inlet Size: 3/8
• Outlet Size: 7/8
• Rows: 4
• EER at 95 Degrees: 10.50
• Air Flow Direction: Upflow~Downflow~Horizontal~Multi-Position
• Coil Casing: Cased
• Coil Material: Aluminum Fin~Aluminum Tube
• Drain Pan Material: Plastic
• Liquid Line Size: 3/8 in
• Product Family: BMAC Series
• Suction Line Size: 7/8 in
• Packaged Depth: 25 in
• Packaged Height: 37 in
• Packaged Width: 28 in
• Shipping Weight: 111.3 lbs
• Refrigeration Control Type: TXV
