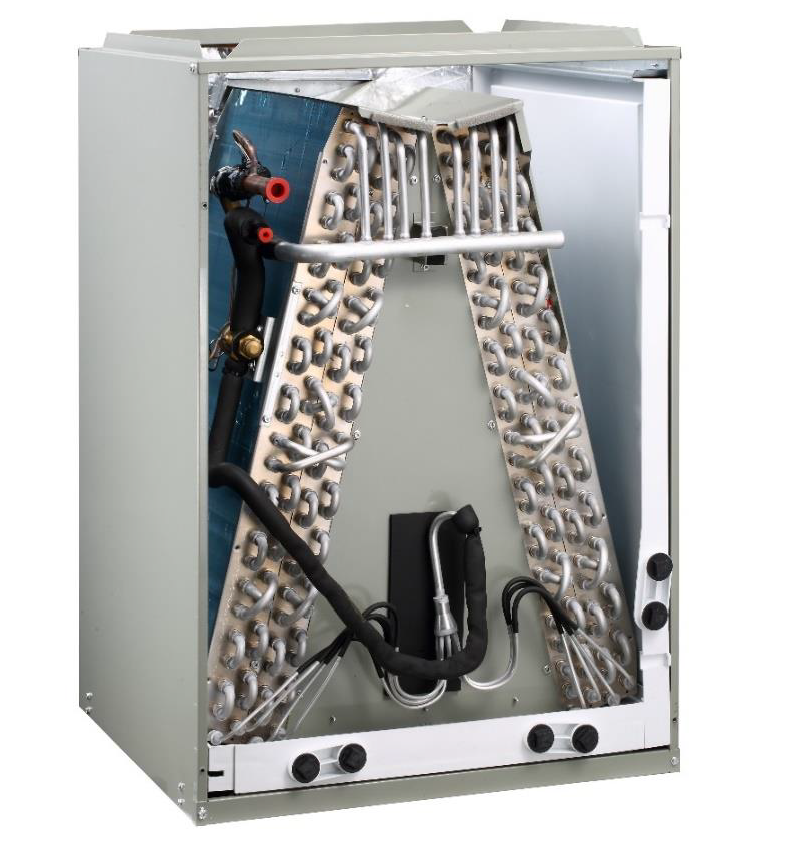

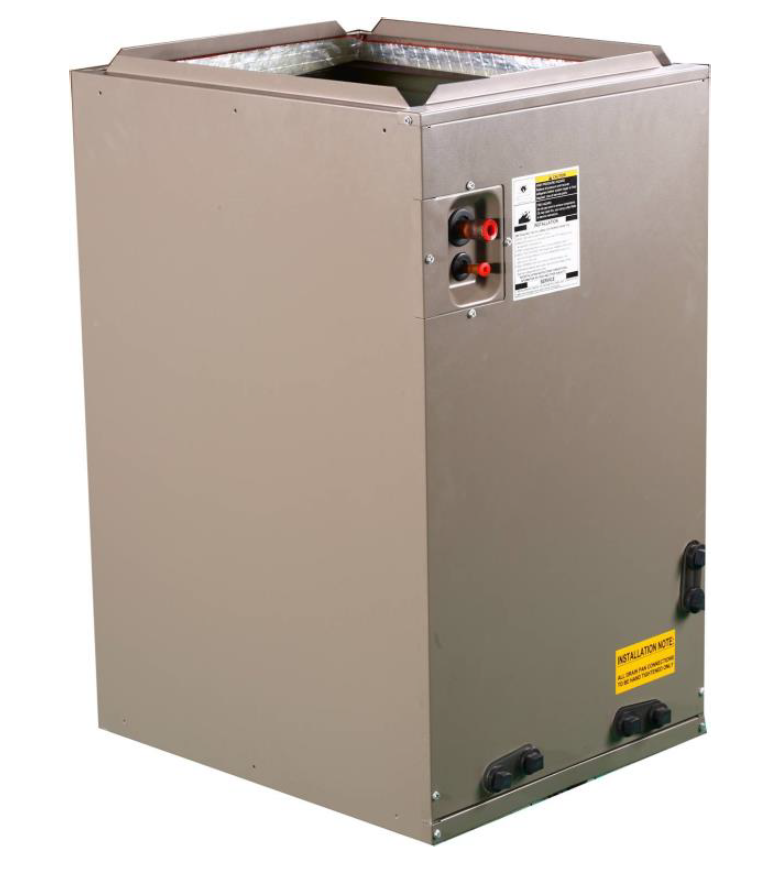

Bosch BMAC3036CNTD Bmac Coil, Multi-Positioned, Cased, 3 Ton, 21 inches Width

Product Description

The BOSCH BMAC3036CNTD BMAC Coil is a multi-positioned, cased coil with a 3-ton capacity and a 21" width, compatible with cooling and heat pump systems. Designed for use in vertical, downflow, and horizontal applications, this coil provides both comfort and peace of mind. It is designed to pair easily with Bosch ASHP Condensing Section (BOVA2.0), Bosch 96% AFUE Furnace (BGH96) or Bosch WSHP Condensing Section (SM Split).

• 21 inch cabinet width
• 2-1/2 or 3 ton cooling
• Foil faced insulation for easy cleaning

Product Highlights

The Bosch BMAC coil delivers performance and efficiency. It features a formicary corrosion resistant all aluminum coil and a factory installed TXV valve.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BMAC3036CNTD
• Country of Origin: CHINA

Technical Specifications

• Model: BMAC3036CNTD
• Manufacturer: BOSCH
• Type: Cooling
• Material: Aluminum
• Refrigerant: R410
• Height (inches): 20
• Width (inches): 21
• Depth (inches): 21
• Cased: Yes
• BTU: 35000
• Nominal Capacity (Tons): 3
• Configuration: Multiposition
• Inlet Size: 3/8
• Outlet Size: 3/4
• Rows: 4
• EER at 95 Degrees: 10.0
• Coil Type: Cased
• Liquid Connection: 3/8"
• Suction Fitting: 7/8"
