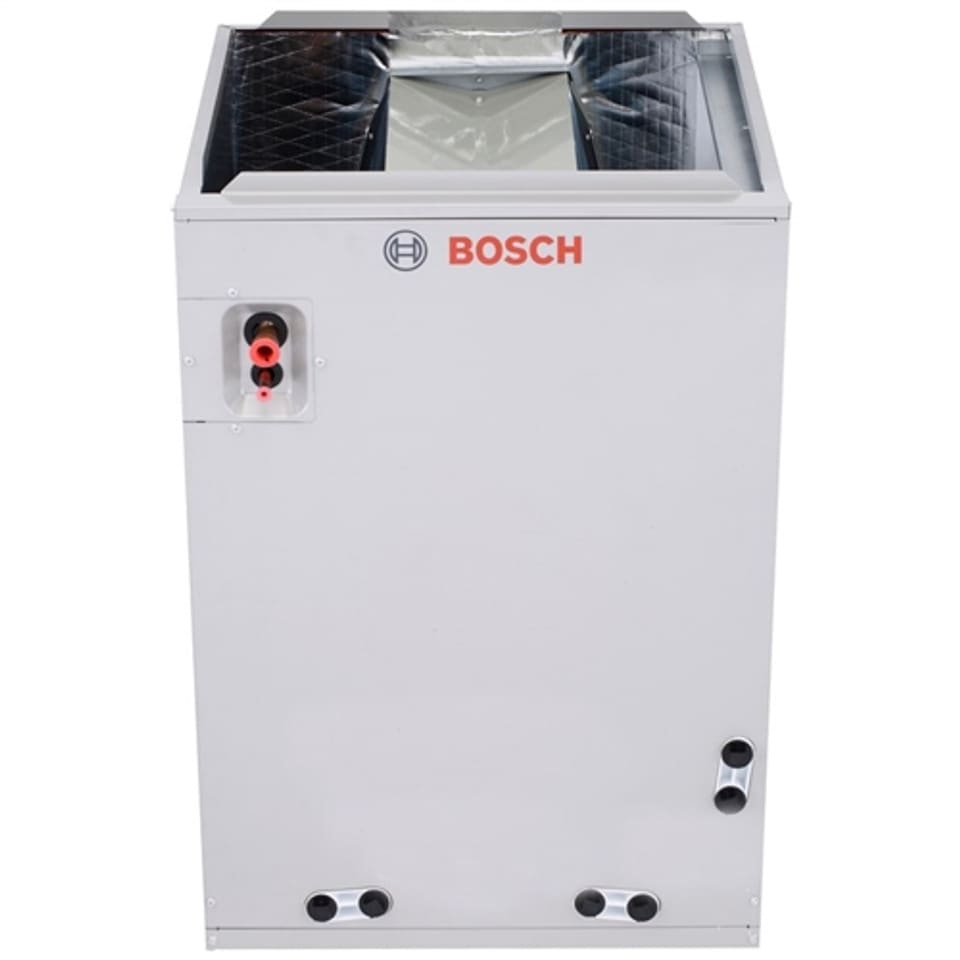

Bosch bmac2430antd Cased Evaporator Coil 2 Ton

Product Description

The BOSCH bmac2430antd is a cased evaporator coil designed for residential split-system air conditioning and heat pump applications. Rated at 2 tons of cooling capacity, this coil serves as the indoor heat-exchange component where refrigerant absorbs heat from supply air before it is distributed through the duct system. Licensed HVAC technicians install this coil inside an air handler or on top of a furnace cabinet as part of a matched system. The cased enclosure provides structural support and a sealed housing that integrates directly with standard duct flanges, reducing the need for field fabrication during installation.

This coil is suited for residential installations where a 2-ton indoor evaporator section is required. The cased design is appropriate for upflow or downflow furnace-top applications depending on cabinet orientation, and the unit is sized to work with standard residential air handlers in single-family and light-commercial settings. Consult system engineering data to confirm matched outdoor unit compatibility before installation.

Key Features

• 2-ton cooling capacity suited for residential split-system applications
• Cased enclosure eliminates the need for a separate sheet-metal cabinet or field-built housing
• Designed for use with a matched outdoor condensing unit or heat pump
• Indoor coil construction facilitates heat exchange between refrigerant and supply air

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for 2-ton residential split-system air conditioning and heat pump systems. Verify outdoor unit match and refrigerant type with BOSCH system documentation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this work involves a sealed refrigerant system. Disconnect and lock out electrical power to the air handler and outdoor unit before beginning coil installation or replacement. Ensure the drain pan, condensate line, and coil connections are fully sealed to prevent air bypass and moisture intrusion. Refer to BOSCH installation instructions and applicable mechanical codes for torque procedures and refrigerant handling requirements.

Technical Specifications

• Cooling Capacity: 2 tons
• Coil Type: Cased evaporator coil
• Application: Residential split-system air conditioning and heat pump

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: bmac2430antd
