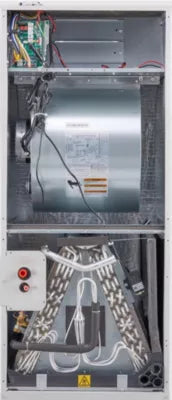

Bosch biva-24rxb-m15x Biva Series Air Handler 2 Ton

Product Description

The BOSCH biva-24rxb-m15x is a multi-position air handler from the BIVA Series, engineered for residential heat pump systems using R454B refrigerant. Rated up to 15.2 SEER2 and up to 8.5 HSPF2, this unit is built around an all-aluminum evaporator coil for long-term corrosion resistance. It ships with a factory-installed TXV metering device and a factory-installed A2L refrigerant sensor, reducing field labor on startup. A PSC blower motor with three selectable speeds handles airflow demands across a range of duct systems. Licensed HVAC technicians perform installation and startup.

This air handler suits residential new-construction and replacement applications where a multi-position cabinet is required. The unit installs in upflow or horizontal-right orientation as standard, and is field-convertible to horizontal-left or downflow. The 208-230/1/60 electrical configuration covers the most common residential single-phase services. Supplemental or emergency electric heat is supported through accessory kits rated at 5, 7.5, 10, 15, or 20 kW, ordered separately. The unit is compatible with most standard 24 VAC heat pump thermostats, keeping control wiring straightforward on retrofit jobs.

Key Features

• Up to 15.2 SEER2 and up to 8.5 HSPF2 efficiency ratings
• All-aluminum evaporator coil for superior corrosion resistance
• Factory-installed TXV metering device and A2L refrigerant sensor
• PSC motor with 3 selectable speeds for flexible airflow balancing
• Multi-position cabinet: upflow, horizontal-right standard; field-convertible to horizontal-left or downflow
• Integrated filter rack with tool-less door access and blower and coil easy slide-out for serviceability
• Factory-sealed cabinet certified at 2% or less air leakage at 1.0 inch water column
• AHRI and ETL Listed; fully insulated cabinet with polymer condensate drain pan with UVC inhibitor

Compatibility

Compatible with most standard 24 VAC heat pump thermostats. Accepts Bosch accessory electric heat kits at 5, 7.5, 10, 15, and 20 kW for supplemental or emergency heating. Designed for use with R454B refrigerant systems.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before opening the cabinet or servicing the blower assembly. R454B is an A2L mildly flammable refrigerant; follow applicable safety procedures and local regulations for handling and leak detection. Verify condensate drain routing and trap depth before startup, and confirm electric heat accessory kit wiring matches the available supply voltage.

Technical Specifications

• Series: BIVA
• Cooling Capacity: 2 Ton
• Efficiency Rating: Up to 15.2 SEER2
• HSPF2 Rating: Up to 8.5 HSPF2
• Refrigerant: R454B (A2L)
• Voltage: 208-230/1/60
• Metering Device: Factory-installed TXV
• Motor Type: PSC, 3 optional speeds
• Cabinet Positions: Upflow, Horizontal-Right standard; field-convertible to Horizontal-Left or Downflow
• Electric Heat Accessory Options: 5, 7.5, 10, 15, 20 kW (sold separately)
• Air Leakage Rate: 2% or less at 1.0 inch water column
• Certifications: AHRI Listed, ETL Listed
• Manufacturer Part Number (alternate): 8-733-965-419
• Unit of Measure: Each

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: biva-24rxb-m15x
