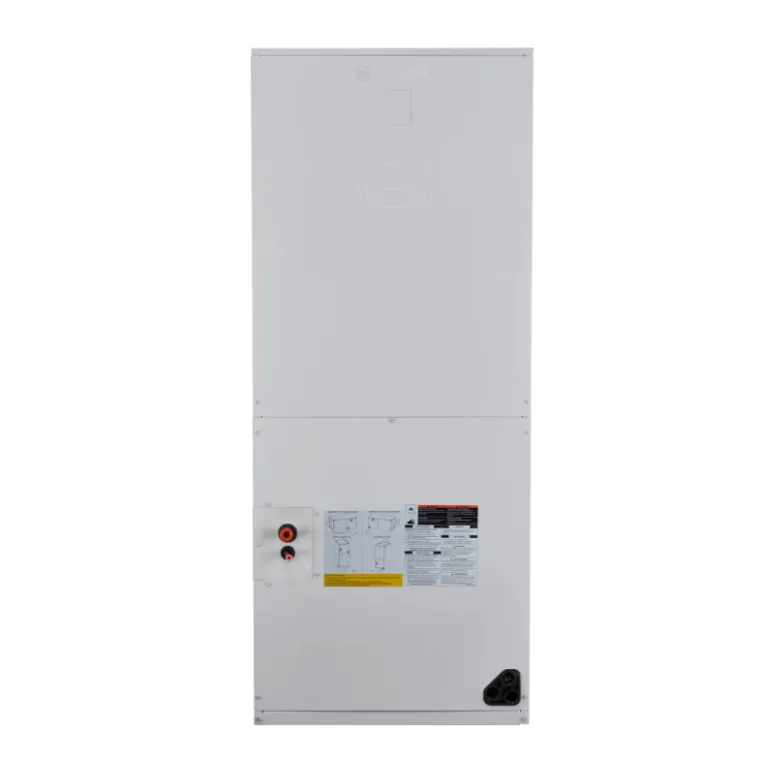

Bosch BIVA-24RCB-M20X Premium Connected R-454B Air Handler 2 Ton

Product Description

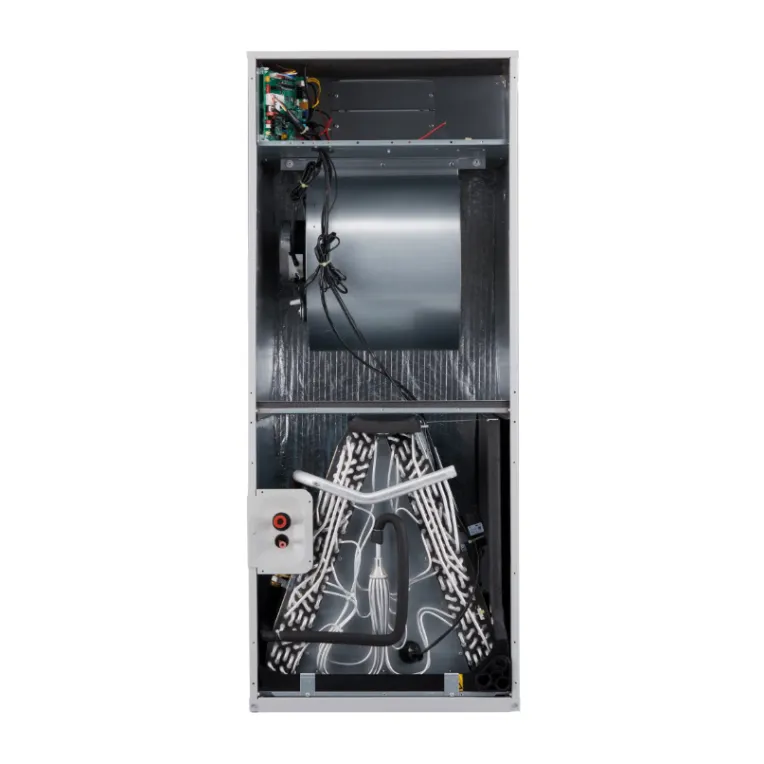

The BOSCH BIVA-24RCB-M20X is a 2 Ton Premium Connected R-454B Air Handler designed for maximum efficiency and minimal sound levels. This multi-position unit features an all-aluminum coil, a two-stage ECM motor, and a painted galvanized steel cabinet. It includes integrated horizontal and vertical primary drain pans, making it suitable for upflow, horizontal left or right, and downflow installations. The air handler offers robust performance and connected features like remote monitoring and EasyAir App access for system fault notifications.

• All-aluminum coil for enhanced durability and corrosion resistance.
• Two-stage ECM motor ensures efficient and quiet operation.
• Integrated horizontal and vertical primary drain pans for versatile installation.

Product Highlights

This 2 Ton R-454B air handler offers high efficiency, multi-position installation, and smart connectivity for remote monitoring.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BIVA-24RCB-M20X

Technical Specifications

• Manufacturer: Bosch
• SKU: 52185
• Product Type: Air Handler
• Tonnage: 2 Ton
• Refrigerant Type: R-454B
• Cabinet Width: 19.5"
• Item Number: BTC8733965415
• Manufacturer Part Number: 8-733-965-415
• Cooling Capacity: 24,000 Btu/hr
• Heating Capacity: 24,000 Btu/hr
• Filter Size: 18 x 20 in
• Liquid Line Size: 3/8 in
• Motor Horsepower: 1/3 HP
• Mounting Type: Floor
• Phase: 1
• SEER2 Rating: 20
• Series: BIVA20
• Sound Level: 55.8 to 66.9 dBA
• Suction Line Size: 3/4 in
• Voltage Rating: 208 / 230 V
• Internal Part Number: 6932320
• Minimum Circuit Amps: 3.3
• TXV Included: Yes
• Motor Type: ECM
• CFM at 0.5 ESP: 897
• CFM High at 0.3 ESP: 975
• Nominal CFM: 897
• Maximum Fuse Size: 15
• Configuration: Multi-Position
