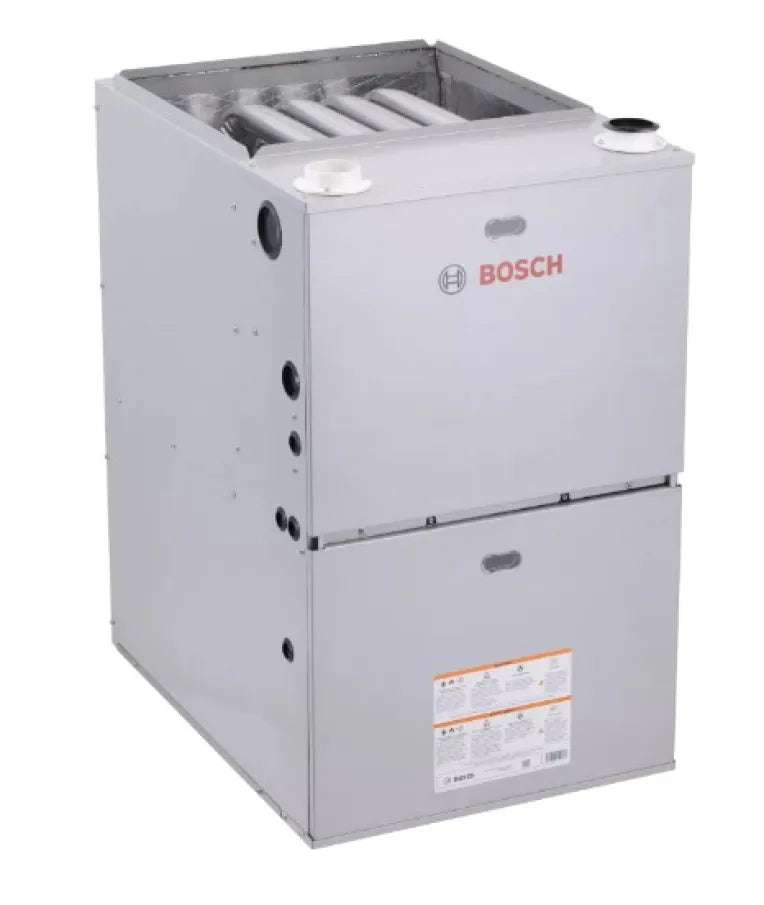

Bosch BGH96M080C4B 96% 80k Btu 21 inches Cabinet Gas Furnace

Product Description

The Bosch BGH96M080C4B 96% 80k Btu 21" Cabinet Gas Furnace features a two-stage gas valve that switches between high and low fire settings to meet load demands, allowing for efficient operation. It converts up to 96% of the fuel purchased for heating, enhancing comfort and energy savings.

• Up to 96% efficiency, Energy Star rated
• Easy integration with Bosch Heat Pumps for high efficient heating and cooling
• Multi-Poise allows for easy replacement

Product Highlights

This gas furnace has a two-stage gas valve, is Energy Star rated, and is easy to integrate with Bosch heat pumps.

Product Information

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: BGH96M080C4B

Technical Specifications

• AFUE Rating: 96%
• Fuel Type: Natural Gas / Propane Gas
• Input Capacity: 80,000 BTU/hr
• Output Capacity: 76,000 BTU/hr
• Flow Rate: 1312 cfm
• Number of Burners: 4
• Temperature Rating: 165 degF
• Type: Upflow / Horizontal
• Motor Type: ECM
• Stages: Two-Stage
• Min. Circuit Amps: 7.8
• LoNox: Yes
• Vent Size: 2"
• Product Height (in.): 33.75"
• Product Width (in.): 21"
• Product Depth (in.): 28.5"
• Manufacturer: Bosch
• AHRI Certificate: Yes
• AHRI Number: 207454628
• Cabinet Width: 21 in
• Efficiency (AFUE): 96.0
• ENERGY STAR Certified: Yes
• Can Integrate Hot Water Heating: No
• Markets: United States, Canada
• ENERGY STAR Unique ID: 2401799
