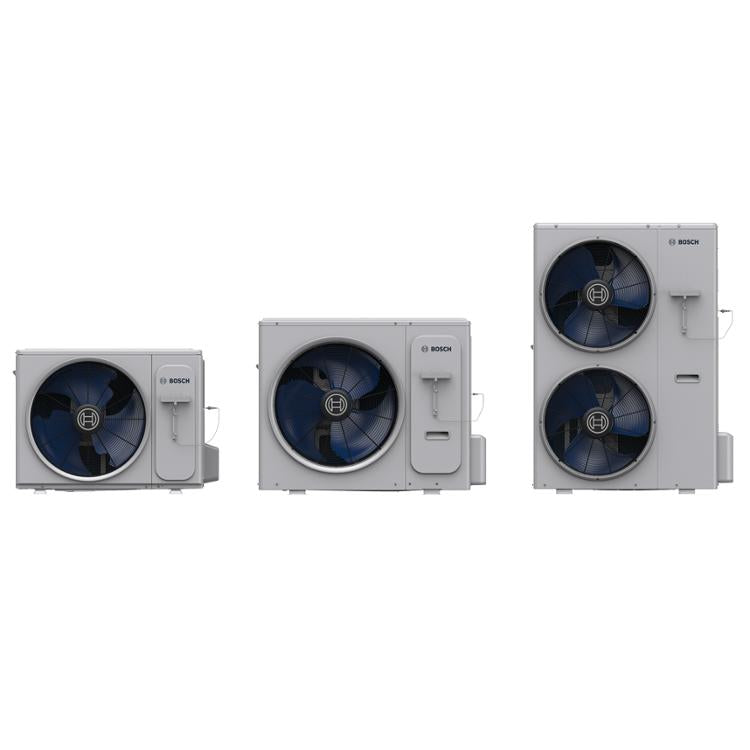

Bosch 8733982283 Heat Pump Outdoor Unit 2 Ton R454B

Product Description

The BOSCH 8733982283 is a 2-ton inverter-driven ducted split heat pump outdoor unit designed for residential and light-commercial HVAC applications. It operates on R454B refrigerant and delivers up to 19 SEER2 efficiency and 10.8 HSPF2, making it suitable for both cooling-dominated and heating-dominated climates. The inverter-driven compressor modulates capacity continuously rather than cycling on and off, which reduces energy consumption and improves indoor comfort. This unit is part of the IDS Edge Max platform, which is engineered for cold-climate heating performance. Licensed HVAC technicians handle installation and commissioning.

The 8733982283 is designed for ducted split-system installations in residential and light-commercial settings. Its compact side-discharge configuration makes it well suited for installations where space constraints or aesthetic considerations limit equipment placement options. The VRF-based platform supports both single-zone and multi-zone applications, giving contractors flexibility when designing systems for new construction or replacement work. Cold-climate capability means the unit maintains meaningful heating output at low outdoor ambient temperatures without relying solely on supplemental heat strips.

Key Features

• Up to 19 SEER2 cooling efficiency rating
• Up to 10.8 HSPF2 heating efficiency rating
• Inverter-driven compressor for continuous capacity modulation and reduced cycling
• Cold-climate capable heating performance for low-ambient operation
• Compact side-discharge outdoor unit design for flexible placement
• VRF-based platform supporting single-zone and multi-zone configurations

Compatibility

Designed for use within the Bosch IDS Edge and IDS Edge Max ducted split-system platform, supporting both single-zone and multi-zone inverter ducted applications using R454B refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation documentation. Disconnect and lock out power to the system before making any electrical or refrigerant connections. R454B is an A2L mildly flammable refrigerant — follow all applicable safety protocols and local code requirements when handling, recovering, or charging this refrigerant. Verify refrigerant line sizing, line set length, and elevation change against the equipment specifications before commissioning.

Technical Specifications

• Capacity: 2 Ton
• Refrigerant: R454B
• Cooling Efficiency: Up to 19 SEER2
• Heating Efficiency: Up to 10.8 HSPF2
• Compressor Type: Inverter-driven
• Discharge Configuration: Side discharge
• System Type: Ducted split

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733982283
