Bosch 8733980530 36000 Btu 5-zone Mini-split Kit

Product Description

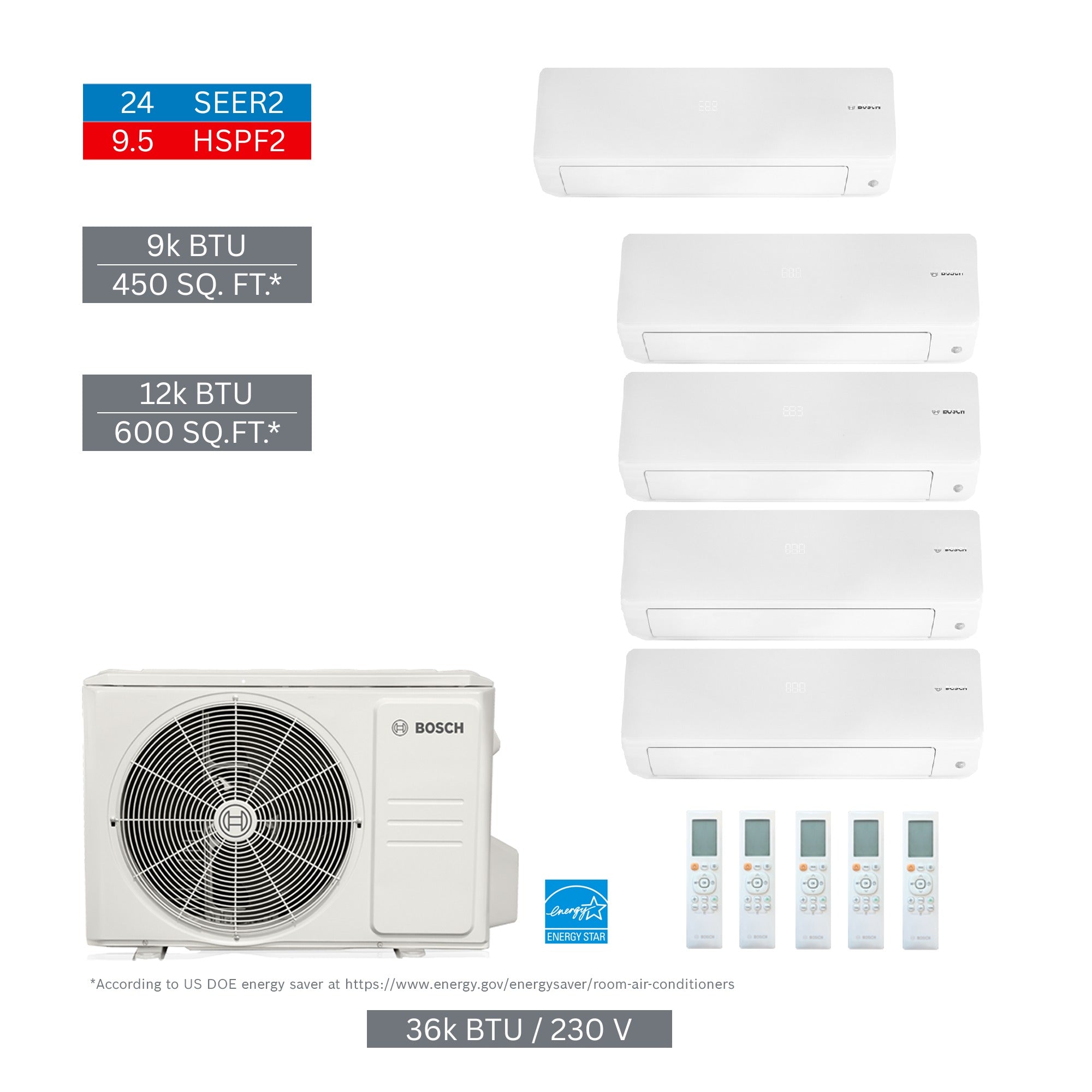

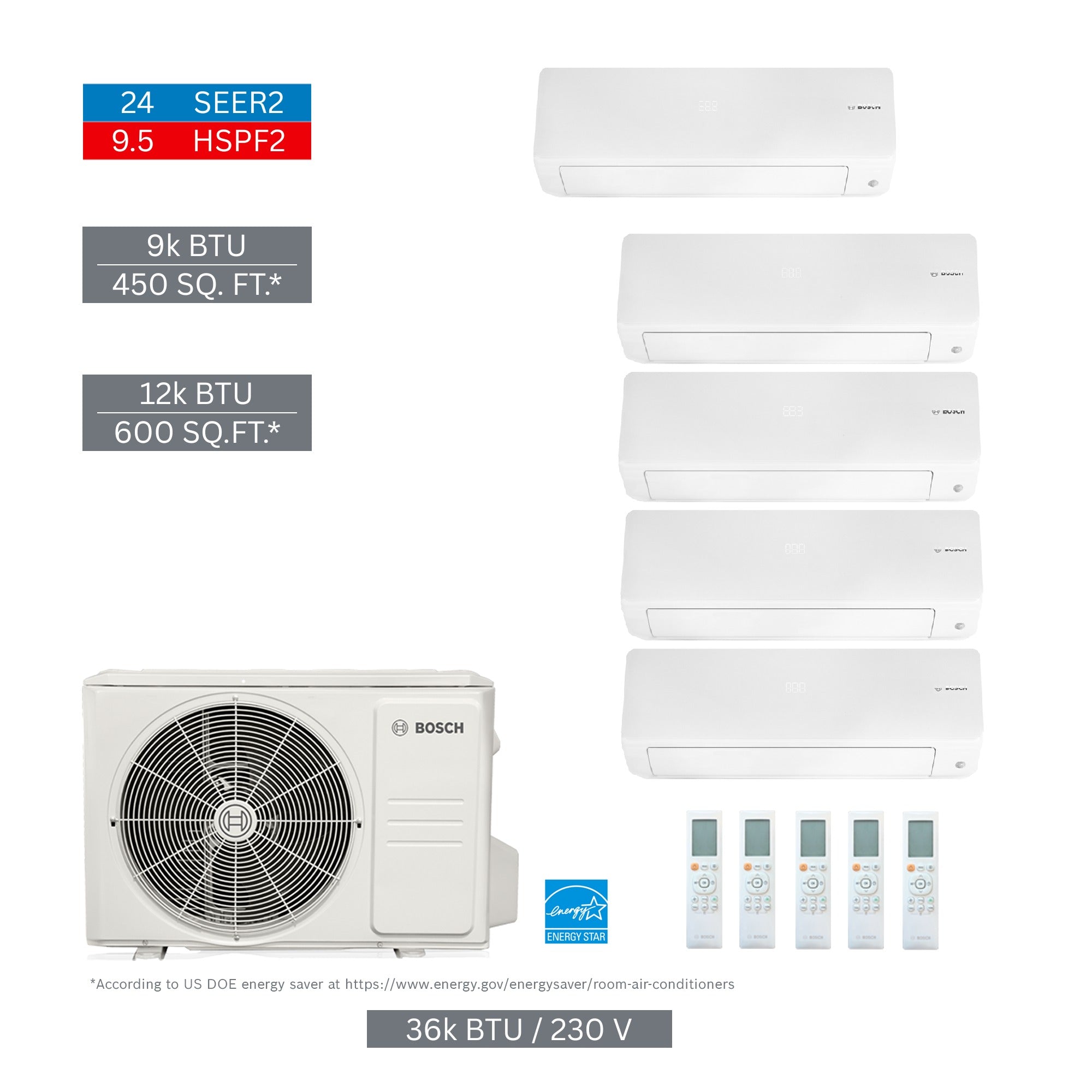

The BOSCH 8733980530 is a complete five-zone ductless mini-split system kit designed for multi-room or multi-zone residential and light commercial comfort applications. The kit pairs one outdoor condensing unit with five indoor air handlers, delivering a combined 36,000 BTU capacity across all zones. Four of the indoor units are 9,000 BTU wall-mounted heads, and the fifth is a 12,000 BTU unit. The kit ships as a matched-component set, with each indoor unit and the outdoor unit pre-specified to work together. HVAC technicians install this system in applications where a single outdoor unit must serve multiple independent zones with individual temperature control.

This kit is suited for residential multi-zone installations such as multi-room apartments, additions, or light commercial spaces where ducted systems are impractical. The five-zone configuration allows each indoor unit to operate independently, making it appropriate for buildings with varied occupancy schedules or differing thermal loads by room. The included outdoor unit and all five indoor air handlers are engineered as a matched system to meet rated capacity and efficiency targets across the full zone load.

Key Features

• Complete five-zone kit includes all indoor and outdoor unit components
• 36,000 BTU total system capacity across five zones
• Four 9,000 BTU indoor units (IDU model 8733962672) for individual zone control
• One 12,000 BTU indoor unit (IDU model 8733962673) for higher-load zone
• One matched outdoor condensing unit (ODU model 8733962697)
• Net kit weight 215.17 pounds; gross kit weight 274.42 pounds for freight planning

Compatibility

This kit is factory-configured as a matched five-zone ductless mini-split system. Included components are IDU 8733962672 (qty 4), IDU 8733962673 (qty 1), and ODU 8733962697 (qty 1). Mixing these components with other indoor or outdoor units outside of BOSCH-specified configurations is not recommended and may affect rated performance.

Installation Notes

Installation of a multi-zone mini-split system must be performed by an EPA Section 608-certified HVAC technician due to refrigerant handling requirements. Power to all circuits must be disconnected before making any electrical connections to indoor or outdoor units. Line set sizing, refrigerant charge, and electrical supply should be confirmed against the equipment documentation provided with each component. Local mechanical and electrical codes govern disconnect placement, circuit sizing, and line set insulation requirements.

Technical Specifications

• System Capacity: 36,000 BTU/h
• Number of Zones: 5
• Indoor Unit 1 (qty 4): 9,000 BTU/h, model 8733962672
• Indoor Unit 2 (qty 1): 12,000 BTU/h, model 8733962673
• Outdoor Unit (qty 1): model 8733962697
• Kit Net Weight: 215.17 pounds
• Kit Gross Weight: 274.42 pounds

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980530
