Bosch 8733980528 Mini-split Kit 27000 Btu 4-zone

Product Description

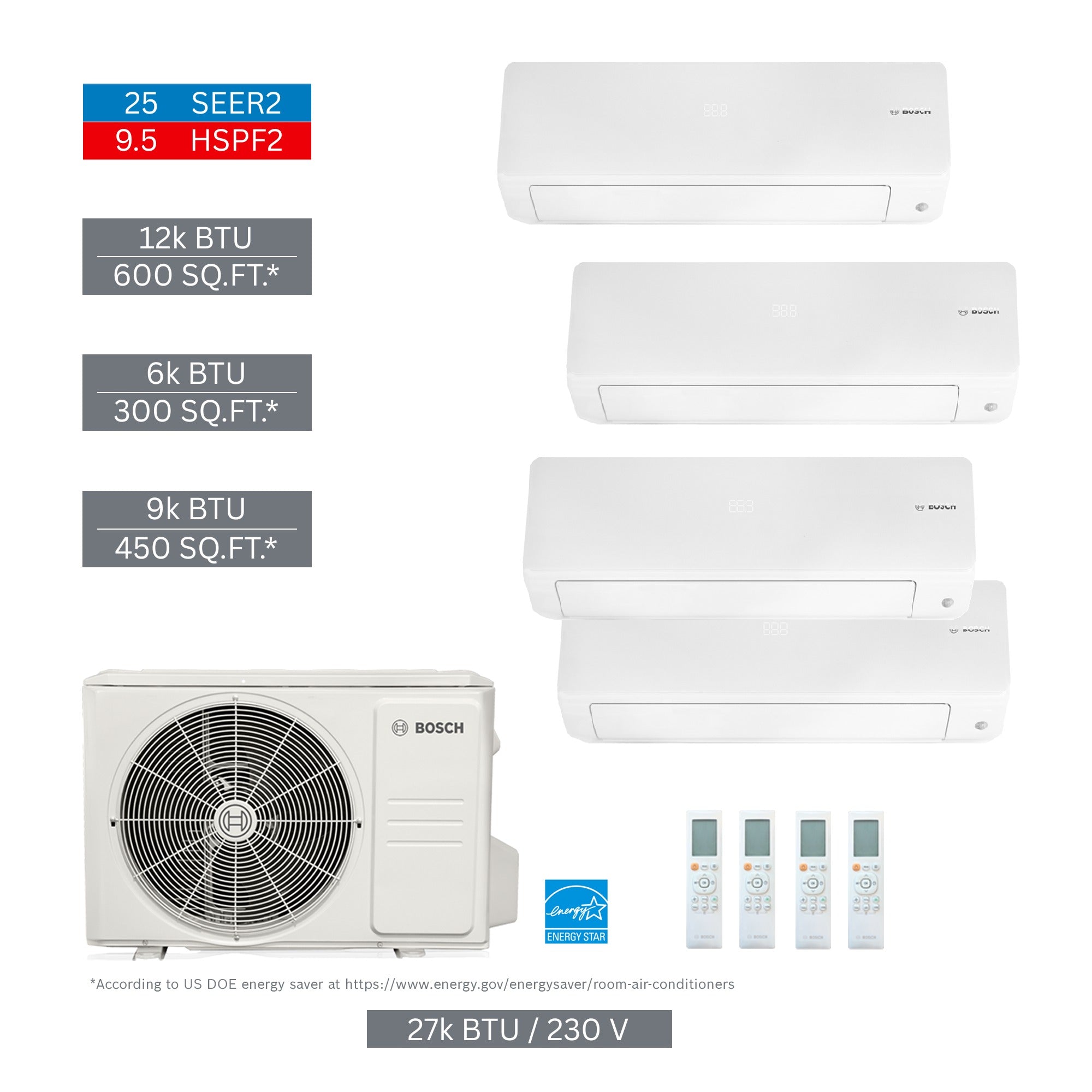

The BOSCH 8733980528 is a 4-zone ductless mini-split system kit rated at 27,000 BTU/h. The kit ships as a complete set of indoor and outdoor units, giving HVAC technicians everything needed to configure a multi-zone installation in a single order. The system includes two 9,000 BTU/h indoor units, one 6,000 BTU/h indoor unit, one 12,000 BTU/h indoor unit, and one matched outdoor condensing unit. Net kit weight is 208.56 pounds. This kit does not include line sets.

The 8733980528 kit is suited for residential and light-commercial ductless applications where up to four zones require independent comfort control. Typical installations include multi-room residential retrofits, additions, or new construction where running ductwork is impractical. Each indoor unit operates independently, allowing zone-by-zone temperature management from a single outdoor unit. The absence of included line sets means field refrigerant piping must be sourced separately to match actual job-site run lengths.

Key Features

• 4-zone configuration supporting simultaneous independent zone control
• Total system capacity of 27,000 BTU/h across all indoor units
• Includes two 9,000 BTU/h indoor units (part 8733962672), one 6,000 BTU/h indoor unit (part 8733962676), and one 12,000 BTU/h indoor unit (part 8733962673)
• Matched outdoor condensing unit (part 8733962696) included in kit
• Kit net weight: 208.56 pounds; kit gross weight: 273.97 pounds
• No line sets included — field refrigerant piping sourced separately

Compatibility

This kit is assembled around BOSCH component part numbers 8733962672 (x2), 8733962676 (x1), 8733962673 (x1), and outdoor unit 8733962696 (x1). These components are matched at the factory for this kit configuration. Do not substitute indoor or outdoor units without verifying system matching with BOSCH documentation.

Installation Notes

Installation of multi-zone ductless mini-split systems must be performed by an EPA Section 608 certified HVAC technician. Shut off all electrical power to the installation area before making any wiring connections. Refrigerant line sizing, evacuation, and charge verification must follow the manufacturer's installation manual and applicable mechanical codes. Line sets are not included and must be sized per job-site requirements prior to ordering.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Number of Zones: 4
• Indoor Unit 1 (qty 2) Part Number: 8733962672 — 9,000 BTU/h
• Indoor Unit 2 (qty 1) Part Number: 8733962676 — 6,000 BTU/h
• Indoor Unit 3 (qty 1) Part Number: 8733962673 — 12,000 BTU/h
• Outdoor Unit Part Number: 8733962696
• Kit Net Weight: 208.56 pounds
• Kit Gross Weight: 273.97 pounds
• Line Sets Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980528
