Bosch 8733980527 Mini Split 27000 Btu 4-zone Kit

Product Description

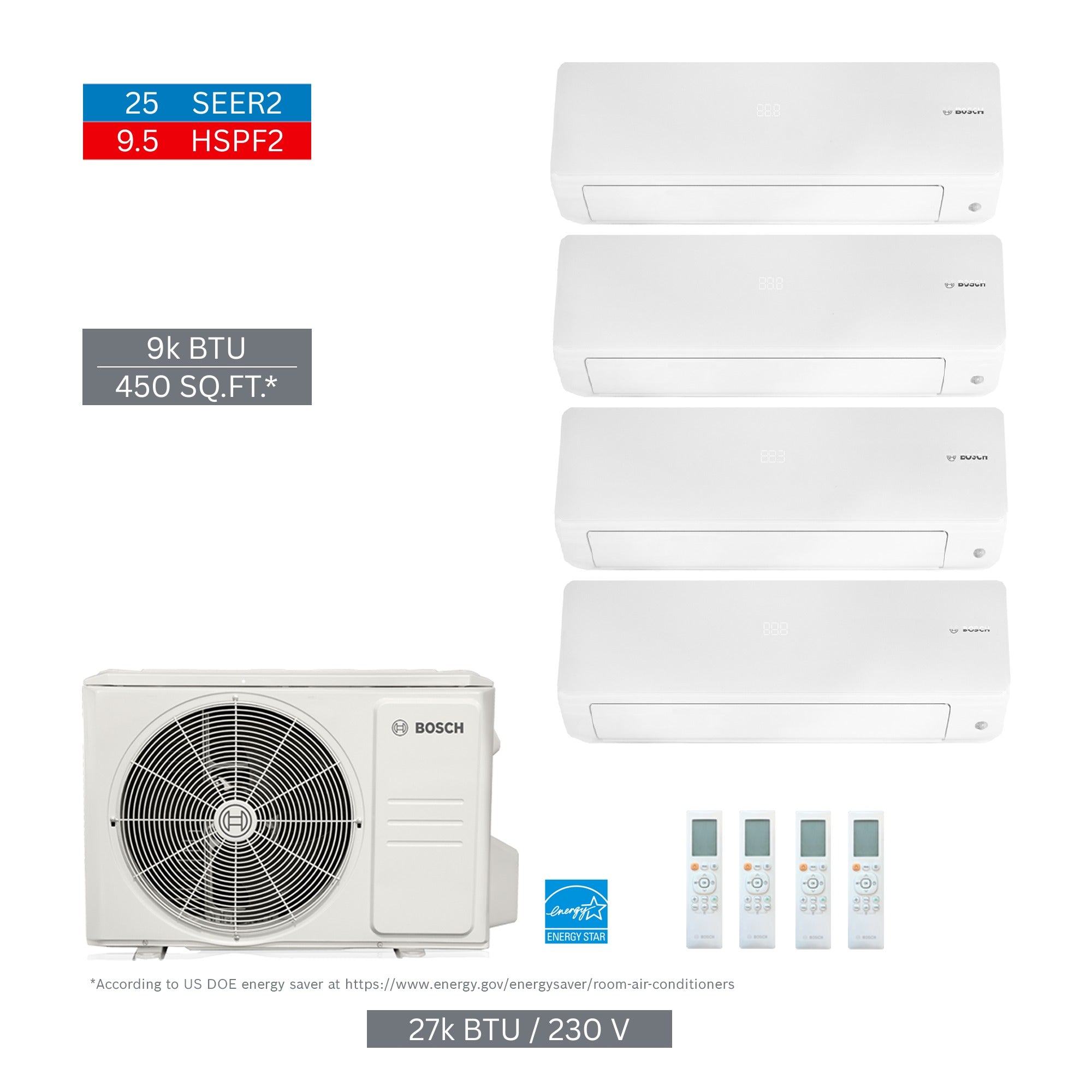

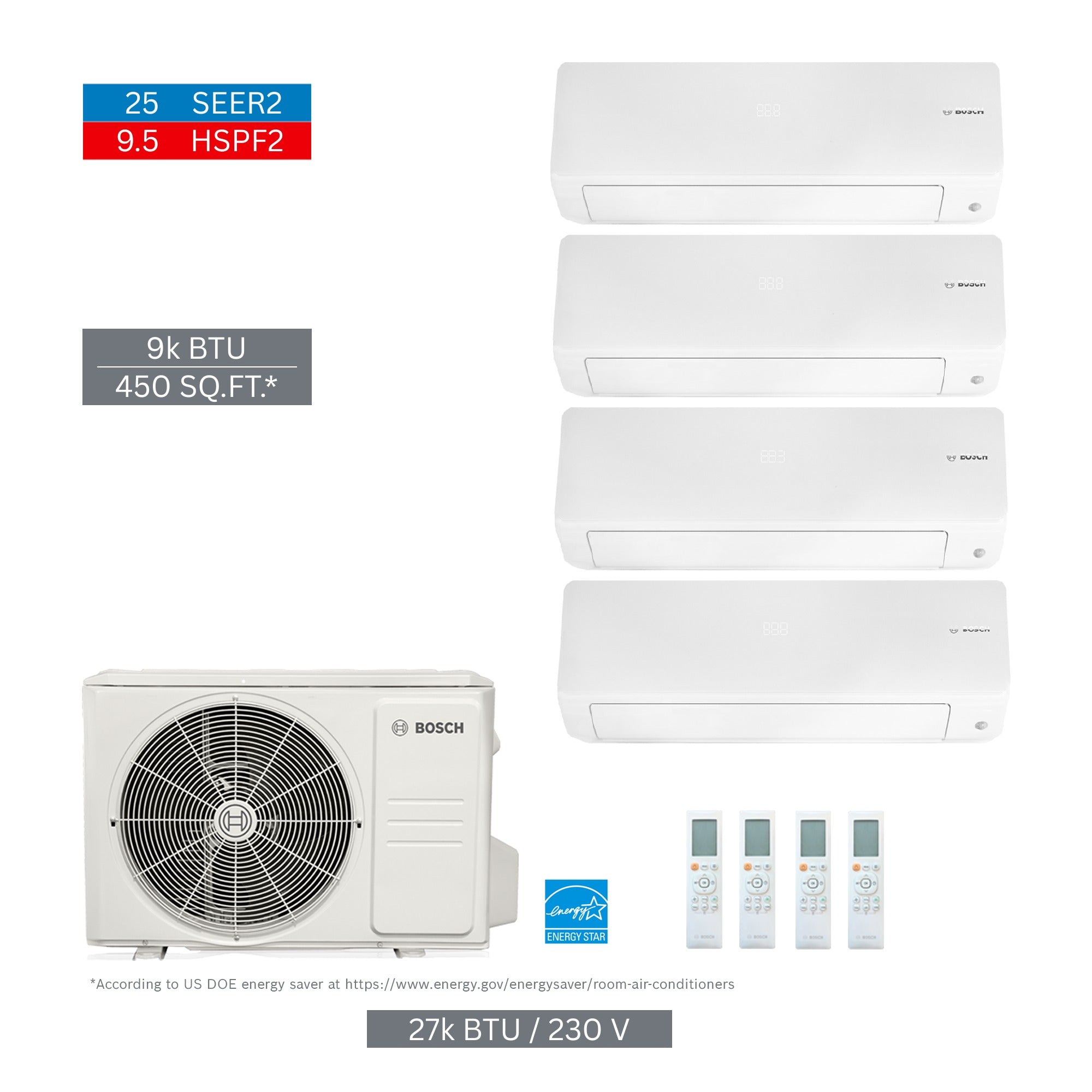

The BOSCH 8733980527 is a 4-zone mini split system kit rated at 27,000 BTU/h, designed for multi-zone ductless heating and cooling applications. The kit includes four 9,000 BTU/h indoor air handlers and one compatible outdoor condensing unit, providing all primary components needed for a complete multi-zone installation. This type of system is installed by licensed HVAC technicians in residential and light commercial settings where independent zone control is required without ductwork. The kit ships as a matched set, reducing sourcing complexity for the installing contractor.

This kit is suited for residential applications where up to four separate zones require independent temperature control. Typical installations include multi-room residential builds, additions, or retrofit projects where running duct is not practical. The four indoor units included in this kit are each rated at 9,000 BTU/h, making them appropriate for small-to-medium sized rooms or zones. The outdoor unit is matched to the indoor units as a factory-configured set.

Key Features

• Complete 4-zone kit — includes four indoor air handlers (IDU 8733962672 x4) and one outdoor unit (ODU 8733962696 x1)
• Total system capacity of 27,000 BTU/h across four zones
• Each indoor unit rated at 9,000 BTU/h for individual zone control
• Factory-matched indoor and outdoor components for system compatibility
• Ductless design supports installation in spaces without existing ductwork

Compatibility

This kit contains BOSCH indoor units 8733962672 (quantity 4) and outdoor unit 8733962696 (quantity 1), configured as a matched 4-zone ductless mini split system.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to refrigerant handling requirements. Power to all circuits must be disconnected before beginning any wiring or refrigerant line work. Line sets, electrical disconnects, and circuit sizing should be selected per the equipment installation manual and applicable local codes. Do not commission the system without verifying refrigerant line integrity and proper electrical supply to both indoor and outdoor units.

Technical Specifications

• System Capacity: 27,000 BTU/h
• Number of Zones: 4
• Indoor Unit Capacity (each): 9,000 BTU/h
• Indoor Unit Part Number: 8733962672 (quantity 4)
• Outdoor Unit Part Number: 8733962696 (quantity 1)
• Kit Net Weight: 162.26 pounds
• Kit Gross Weight: 214.67 pounds

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980527
