Bosch 8733980522 Mini-split System Kit 12000 Btu/h 25 Ft

Product Description

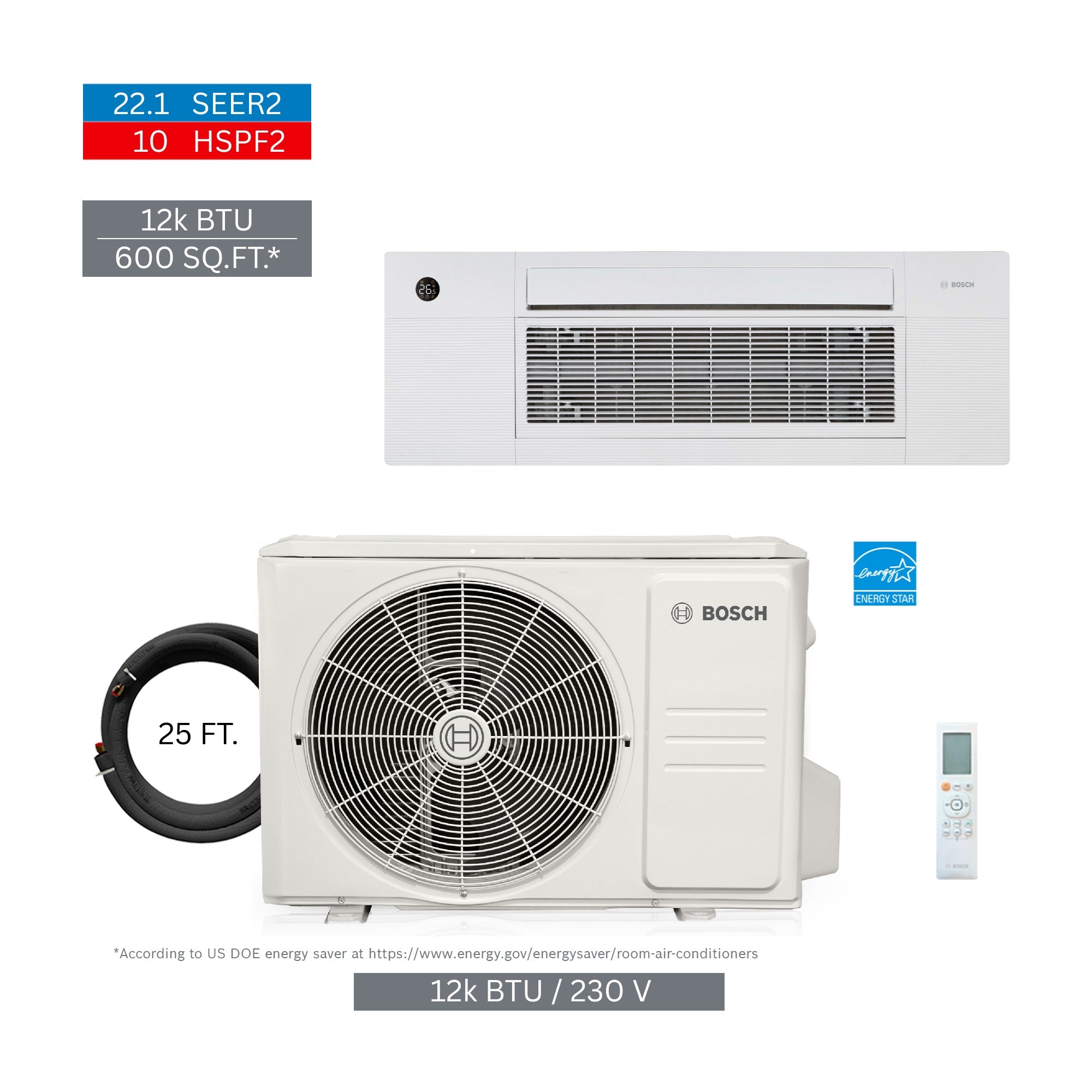

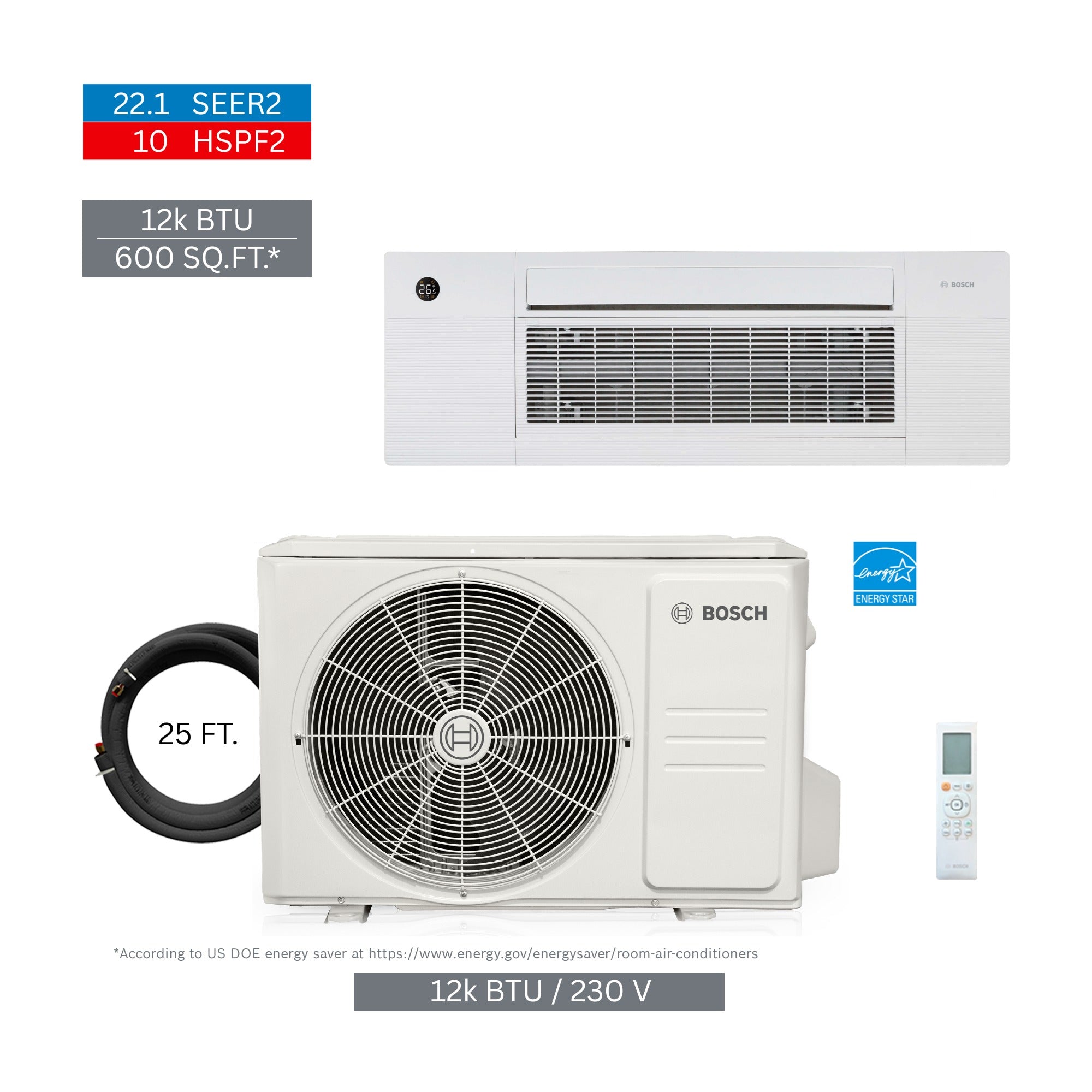

The BOSCH 8733980522 is a single-zone cassette mini-split system kit rated at 12000 BTU/h, designed for residential and light-commercial comfort conditioning applications. The kit ships as a matched assembly including one cassette indoor unit, one outdoor unit, and a 25-foot line set, allowing installers to arrive with everything needed for a complete installation. Performance ratings are AHRI-certified at SEER2 22.1 and EER2 12.3 for cooling, with an HSPF2 of 10.0 for heating — figures that satisfy Energy Star qualification thresholds. Licensed HVAC technicians handle installation of this equipment.

This kit is suited for single-zone applications in residential living spaces, server rooms, additions, or light-commercial areas where a ceiling-cassette supply pattern is preferred over a wall-mounted unit. The cassette indoor unit delivers 360-degree airflow distribution from a ceiling-flush profile. The included 25-foot line set eliminates the need to source refrigerant lines separately, making this a streamlined solution for straightforward single-zone jobs where the condensing unit is positioned within that line-run distance from the indoor unit.

Key Features

• AHRI-rated 12000 BTU/h capacity with SEER2 22.1 cooling efficiency
• HSPF2 10.0 heating efficiency rating qualifies for Energy Star designation
• Complete kit includes matched indoor cassette unit (8733962667), outdoor unit (8733962685), and line set (8733951011)
• 25-foot line set included — no separate line set sourcing required on standard single-zone installs
• Ceiling-cassette indoor unit delivers multi-directional airflow distribution
• COP at 47 degrees F of 3.4 indicates strong low-ambient heating performance

Compatibility

This kit contains matched components: indoor cassette unit 8733962667, outdoor unit 8733962685, and line set 8733951011. No additional compatible model or system family data was provided in the product record beyond these kit components.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off all electrical power to the installation area before mounting or making electrical connections. The outdoor unit location must allow adequate airflow clearance per the manufacturer installation manual and local mechanical codes. Do not exceed the rated line set length or deviate from the matched-component configuration without consulting the equipment installation documentation.

Technical Specifications

• Cooling Capacity: 12000 BTU/h
• SEER2: 22.1
• EER2: 12.3
• HSPF2: 10.0
• COP at 47 degrees F: 3.4
• Energy Star Certified: Yes
• Included Line Set Length: 25 feet
• Kit Net Weight: 117.21 pounds
• Kit Gross Weight: 194.98 pounds
• Indoor Unit Part Number: 8733962667
• Outdoor Unit Part Number: 8733962685
• Line Set Part Number: 8733951011

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980522
