Bosch 8733980513 Mini Split 12000 Btu 4-zone 230V

Product Description

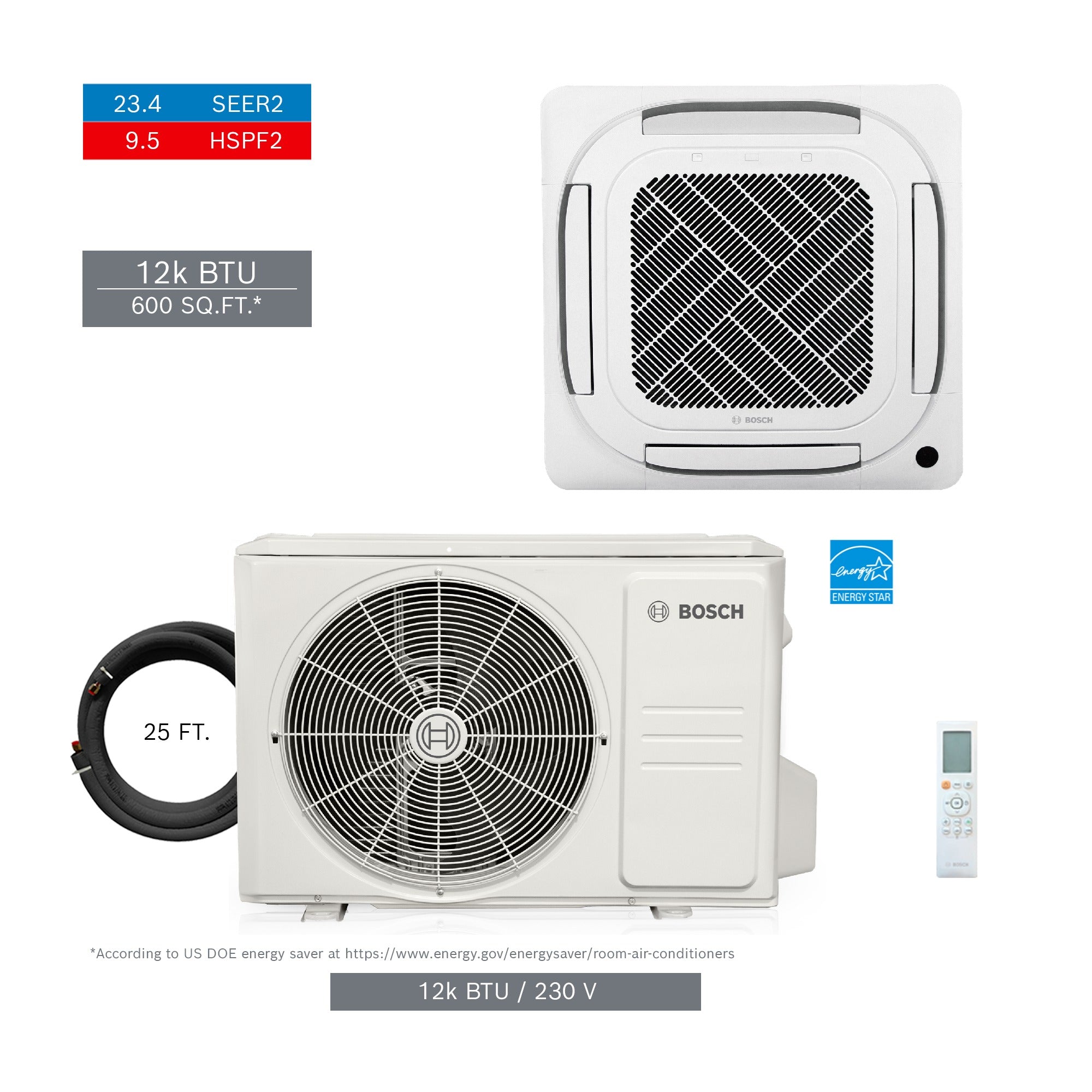

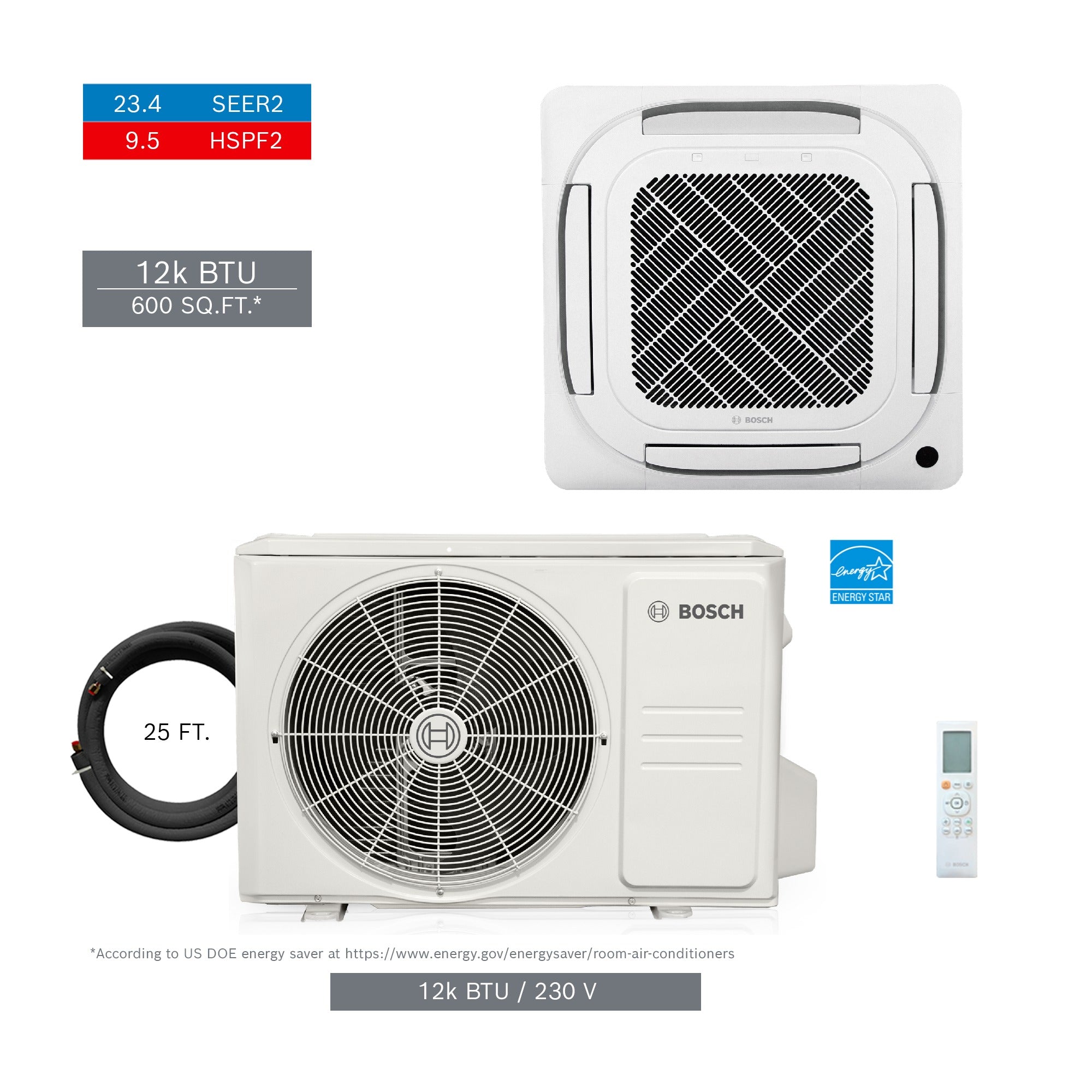

The BOSCH 8733980513 is a 12,000 BTU, 4-zone cassette-style mini split system designed for residential and light commercial ductless HVAC applications. Operating at 230 volts, this kit includes indoor cassette units, an outdoor condensing unit, and a 25-foot line set, delivering everything needed for a complete system installation. The cassette configuration includes a grille for ceiling-flush mounting, making it well suited for open-plan spaces where aesthetics and airflow distribution both matter. Licensed HVAC technicians handling ductless system installations are the primary installers of this equipment.

This system is configured for a 4-zone cassette setup and ships as a matched-component kit. The 25-foot line set is included, reducing field procurement steps on straightforward installs. The 230-volt power requirement suits typical dedicated single-phase circuits found in residential and small commercial construction. Ceiling cassette indoor units deliver multi-directional airflow distribution across each zone, making this kit appropriate for open rooms, server rooms, restaurants, or similar spaces requiring even air distribution without ductwork.

Key Features

• Complete kit includes two indoor cassette units, one outdoor unit, and one 25-foot line set
• 12,000 BTU capacity for effective multi-zone temperature control
• Cassette-style indoor units with grille for ceiling-flush installation
• 230-volt operation compatible with standard dedicated single-phase circuits
• Matched-component kit reduces sourcing errors and ensures OEM compatibility between components

Compatibility

This kit includes indoor units 8733962717 and 8733962708, outdoor unit 8733962685, and line set 8733951011, all as matched OEM components. These components are factory-matched and intended for use together as a complete system.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Disconnect and lock out all power before handling any electrical connections or refrigerant lines. Ceiling cassette units require structural backing adequate to support the unit weight, and refrigerant line routing should follow manufacturer guidelines and local mechanical codes. Do not mix refrigerants or reuse line sets from previous installations without proper inspection and flushing.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Voltage: 230 volts
• Number of Zones: 4
• Line Set Length: 25 feet
• Kit Net Weight: 113.24 pounds
• Kit Gross Weight: 163.9 pounds
• UPC: 52575024134

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980513
