Bosch 8733980510 Mini Split 27000 Btu 2-zone System

Product Description

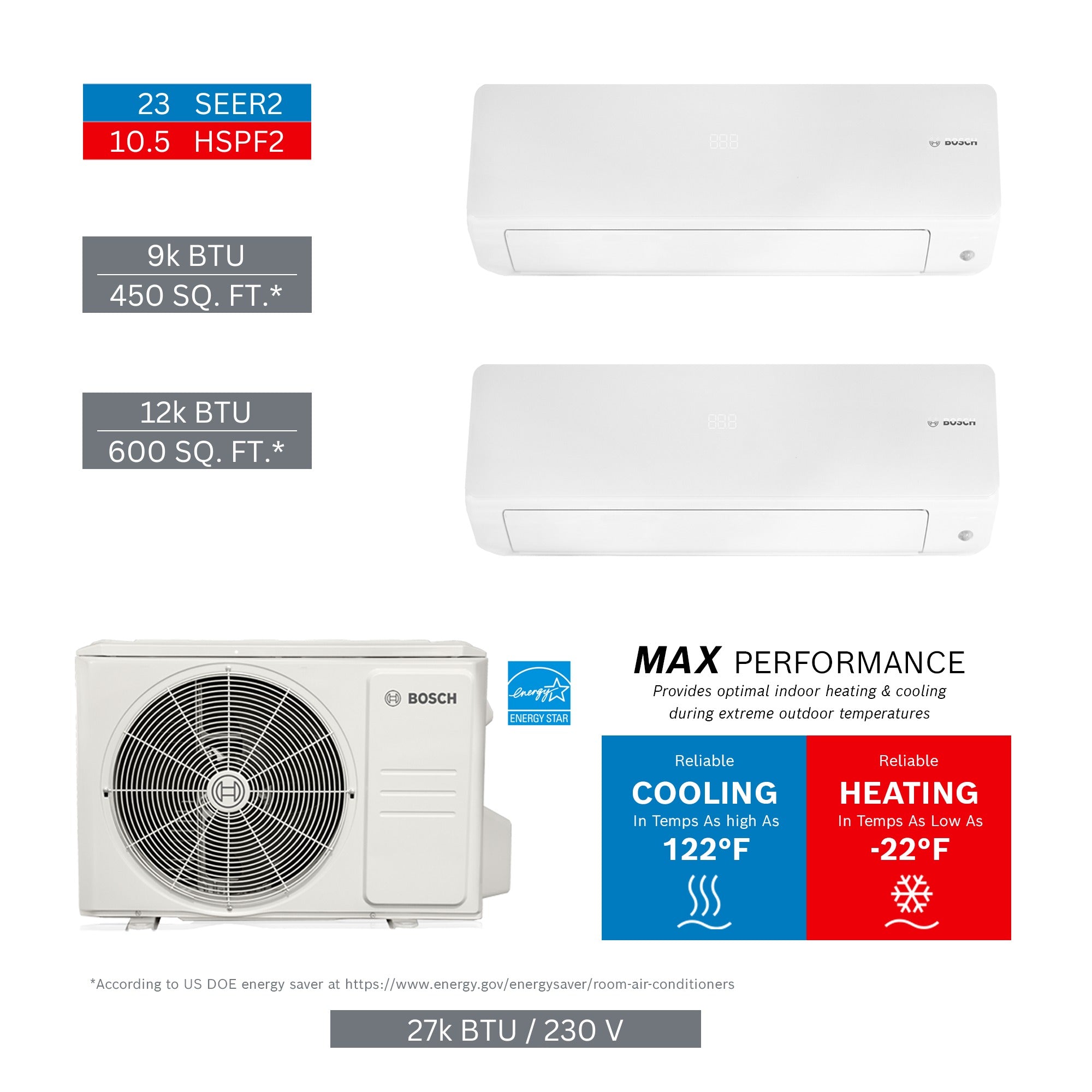

The BOSCH 8733980510 is a 27,000 BTU two-zone ductless mini split system designed for residential and light commercial cooling and heating applications. This kit pairs one 9,000 BTU indoor unit with one 12,000 BTU indoor unit, driven by a single outdoor condensing unit. The system is sold without line sets, meaning refrigerant line sets must be sourced and sized separately at the time of installation. Licensed HVAC technicians install and commission this type of multi-zone ductless equipment. The total system capacity is 27,000 BTU, spread across two independently controlled zones.

This multi-zone ductless system suits applications where two separate spaces require independent temperature control from a single outdoor unit. Typical installs include room additions, converted spaces, multi-room residential builds, or commercial suites where running ductwork is not practical. The kit ships with the two indoor air handlers and the outdoor condensing unit as a matched set. Line sets and any accessories are not included and must be obtained separately before installation can be completed.

Key Features

• 27,000 BTU total system capacity across two zones
• Includes one 9,000 BTU indoor unit (IDU 8733962672) and one 12,000 BTU indoor unit (IDU 8733962673)
• Matched outdoor condensing unit (ODU 8733962700) included in kit
• Two-zone configuration allows independent temperature control per space
• Sold without line sets — field-supplied refrigerant lines required
• G4 generation platform

Compatibility

This kit includes indoor units 8733962672 and 8733962673 paired with outdoor unit 8733962700. All three components are factory-matched for this 27,000 BTU two-zone configuration. Line set selection and sizing should follow the equipment installation manual and applicable local codes.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for handling refrigerants. Power to all circuits must be disconnected before connecting electrical wiring to the indoor or outdoor units. Refrigerant line sets are not included and must be sized according to the manufacturer installation manual and local mechanical codes. Do not attempt to charge the system or modify refrigerant circuit components without proper recovery equipment and certification.

Technical Specifications

• Total System Capacity: 27,000 BTU
• Zone Count: 2
• Indoor Unit 1 Capacity: 9,000 BTU (MPN 8733962672)
• Indoor Unit 2 Capacity: 12,000 BTU (MPN 8733962673)
• Outdoor Unit MPN: 8733962700
• Kit Net Weight: 214.73 pounds
• Kit Gross Weight: 273.97 pounds
• UPC: 52575024103
• Line Sets Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980510
