Bosch 8733980501 Mini Split System 27000 Btu 3 Zone

Product Description

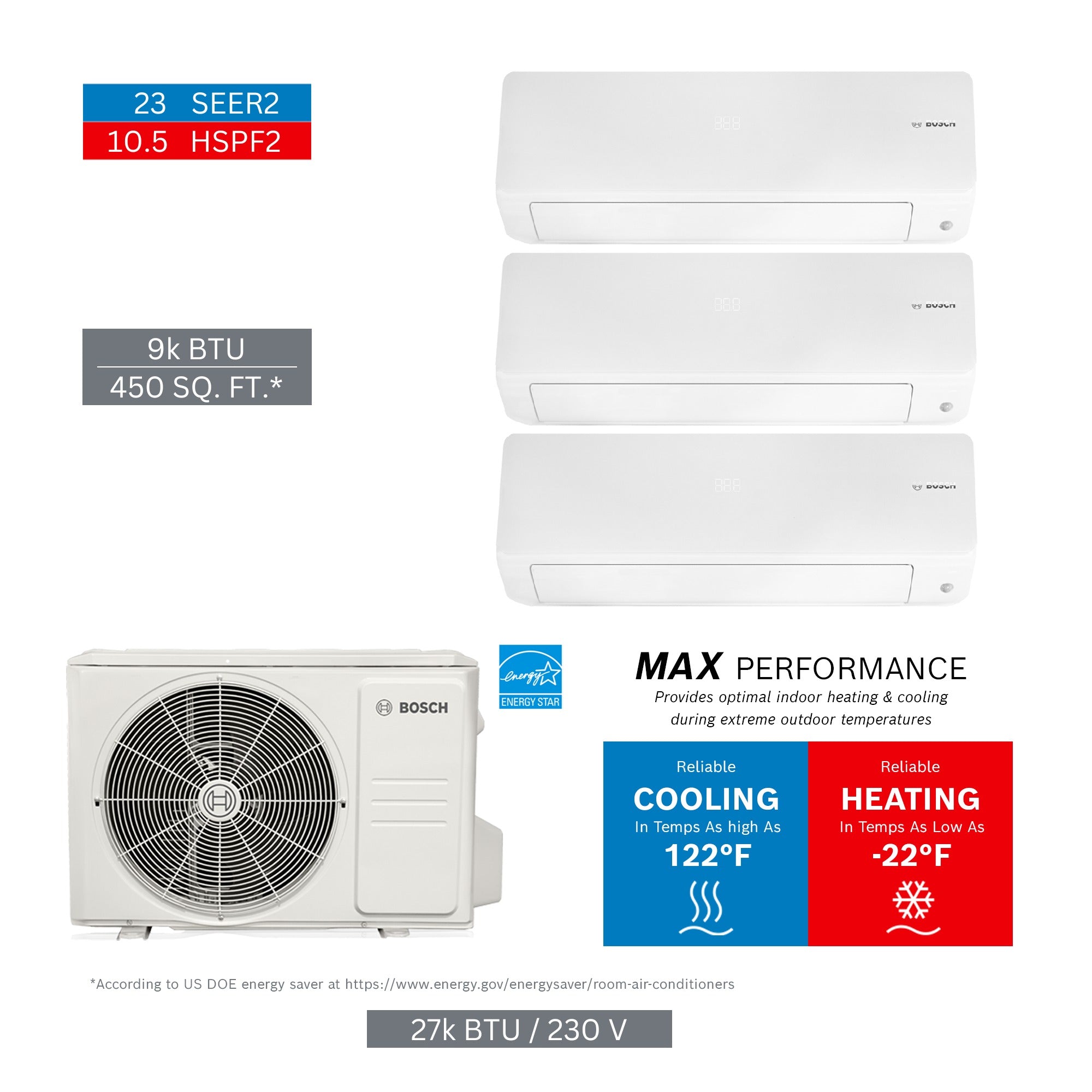

The BOSCH 8733980501 is a 3-zone ductless mini split system rated at 27,000 BTU/h total cooling and heating capacity. The kit pairs one outdoor condensing unit with three 9,000 BTU/h indoor air handlers, covering three separate zones from a single outdoor unit. Line sets are not included with this kit, so they must be sourced separately before installation. Licensed HVAC technicians install this system in residential and light commercial applications where zoned comfort control is required without ductwork.

This system is suited for residential and light commercial buildings where independent temperature control across multiple rooms or zones is needed. The 3-zone configuration allows each space to be conditioned independently, reducing energy use in unoccupied areas. Because line sets are not included, the installer selects line set lengths appropriate to the specific job layout. Typical applications include multi-room residential retrofits, additions, and commercial spaces where running ductwork is impractical.

Key Features

• 27,000 BTU/h total system capacity across three zones
• Three 9,000 BTU/h indoor air handlers included in kit
• One outdoor condensing unit serves all three zones
• Ductless design eliminates the need for forced-air duct systems
• Line sets not included, allowing installer to specify correct run lengths per job
• Kit ships as a matched indoor and outdoor component set (IDU x3, ODU x1)

Compatibility

Kit includes indoor units BOSCH 8733962672 (quantity 3) and outdoor unit BOSCH 8733962700 (quantity 1). These components are factory-matched for this 3-zone configuration. No additional indoor or outdoor unit substitutions are specified in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before servicing any component. Line sets, refrigerant, and interconnecting control wiring are field-supplied and must be sized per the equipment installation manual and applicable local mechanical codes. Do not operate the outdoor unit without confirming refrigerant charge and verifying all electrical connections meet NEC requirements.

Technical Specifications

• System Capacity: 27000 BTU/h
• Number of Zones: 3
• Indoor Unit Capacity (each): 9000 BTU/h
• Indoor Unit Quantity: 3
• Outdoor Unit Quantity: 1
• Kit Net Weight: 191.8 pounds
• Kit Gross Weight: 244.65 pounds
• Line Sets Included: No
• UPC: 52575024011
• Indoor Unit Part Number: 8733962672
• Outdoor Unit Part Number: 8733962700

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980501
