Bosch 8733980499 Mini-split Multi-zone Kit 36000 Btu

Product Description

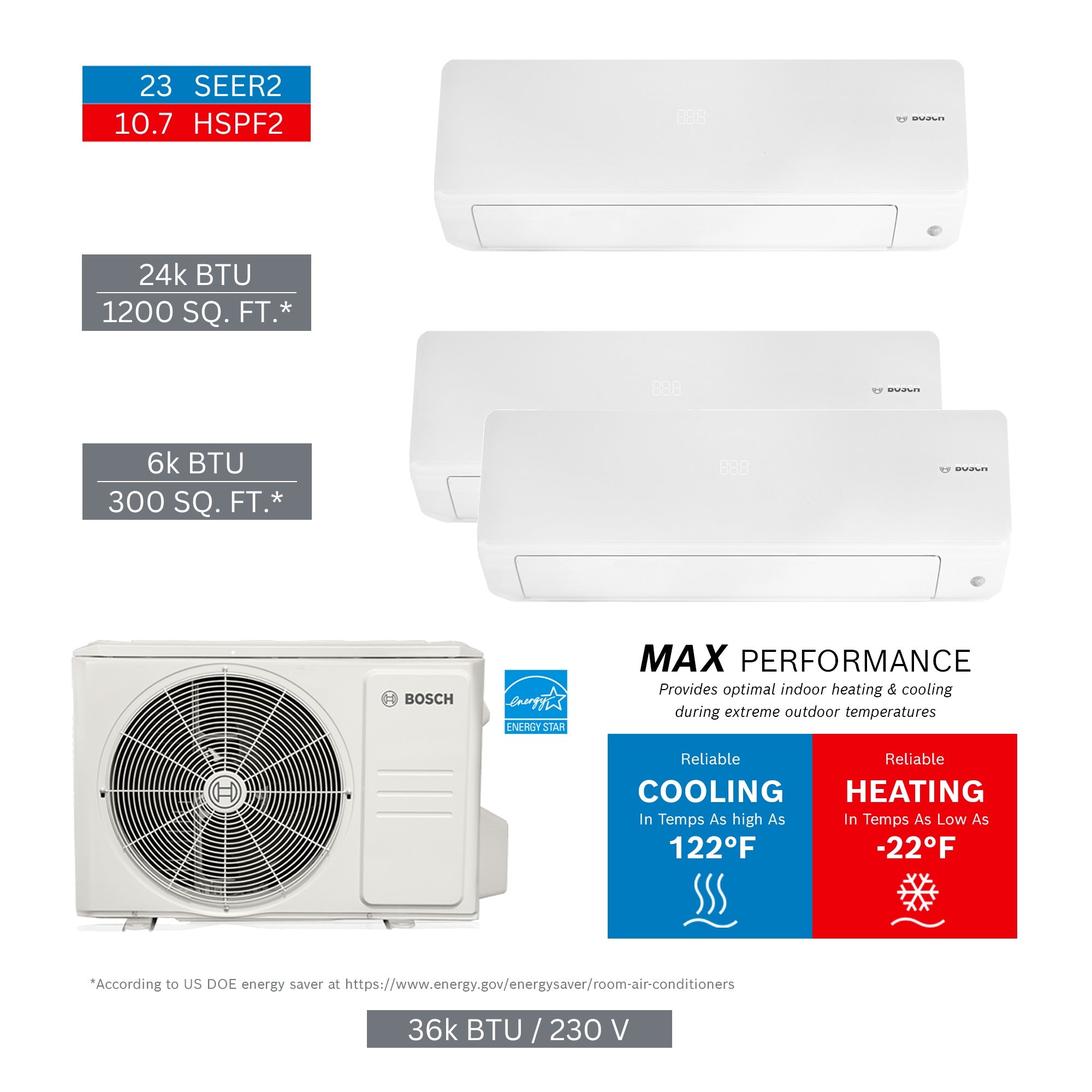

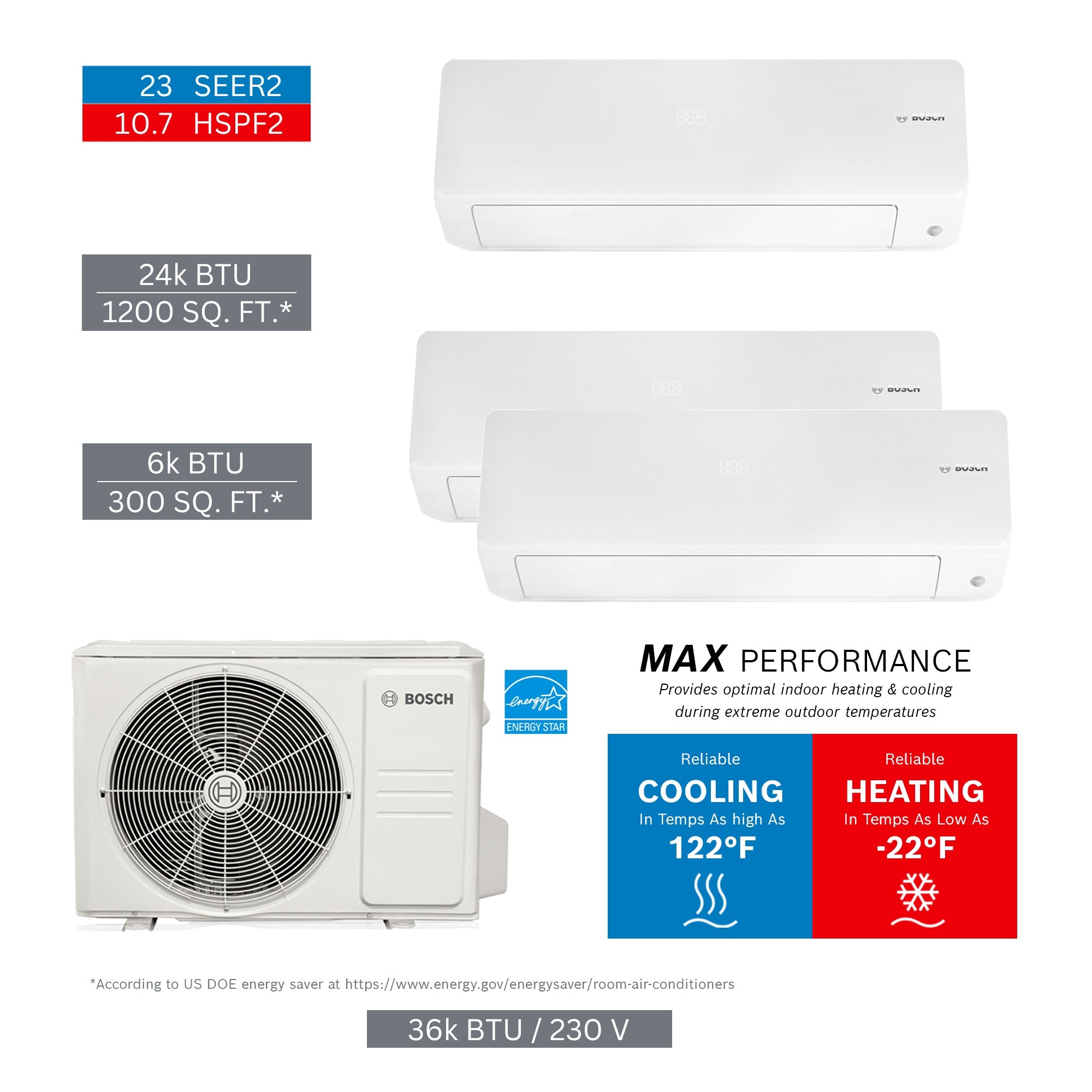

The BOSCH 8733980499 is a multi-zone ductless mini-split kit designed for residential and light-commercial comfort conditioning applications. This three-zone system ships as a complete matched set, pairing one outdoor condensing unit with three indoor air handlers. The kit is sized at 36000 BTU total system capacity and includes one 24000 BTU indoor unit and two 6000 BTU indoor units. Licensed HVAC technicians install and commission this type of system. No line sets are included with this kit.

This kit is suited for applications where three separate zones require independent temperature control from a single outdoor unit. Typical installations include multi-room residential additions, open-plan commercial suites, and retrofit projects where ductwork is not present or not practical. The absence of a line set means the installing contractor supplies refrigerant piping and fittings appropriate to the job site layout and local code requirements.

Key Features

• Three-zone configuration supports independent comfort control across three spaces
• Total system capacity of 36000 BTU serves a meaningful combined load
• Includes one 24000 BTU indoor unit for larger primary zones
• Includes two 6000 BTU indoor units for smaller secondary zones
• Matched component kit reduces sourcing errors and ensures factory-verified compatibility
• No line sets included — contractor supplies refrigerant piping per job requirements

Compatibility

This kit includes indoor units 8733962675 (quantity 1) and 8733962676 (quantity 2), paired with outdoor unit 8733962701 (quantity 1). These components are factory-matched as part of this multi-zone assembly. Do not substitute individual components without verifying system compatibility with BOSCH engineering documentation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant certification. The outdoor unit and all indoor air handlers must be powered down and the system fully de-energized before any service or connection work begins. Refrigerant piping, electrical connections, and condensate drainage must comply with local mechanical and electrical codes. Line sets, mounting hardware, and refrigerant are not included and must be supplied separately by the installing contractor.

Technical Specifications

• System Capacity: 36000 BTU/h
• Zone Count: 3
• Indoor Unit 1 Capacity: 24000 BTU/h (quantity 1, part 8733962675)
• Indoor Unit 2 Capacity: 6000 BTU/h (quantity 2, part 8733962676)
• Outdoor Unit Part Number: 8733962701
• Kit Net Weight: 278.88 pounds
• Kit Gross Weight: 365.25 pounds
• UPC: 52575023991
• Line Sets Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980499
