Bosch 8733980496 36000 Btu 4-zone Mini Split System

Product Description

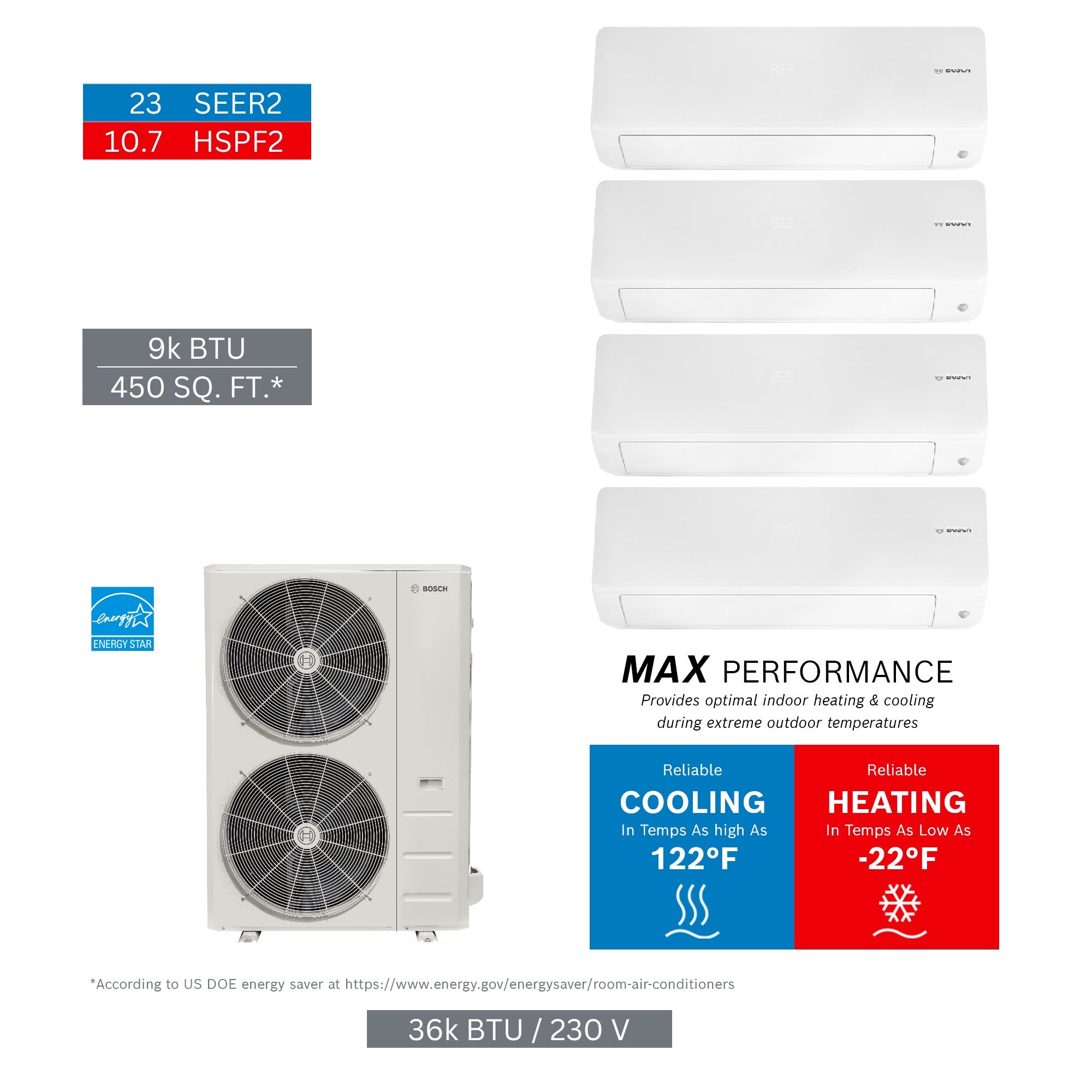

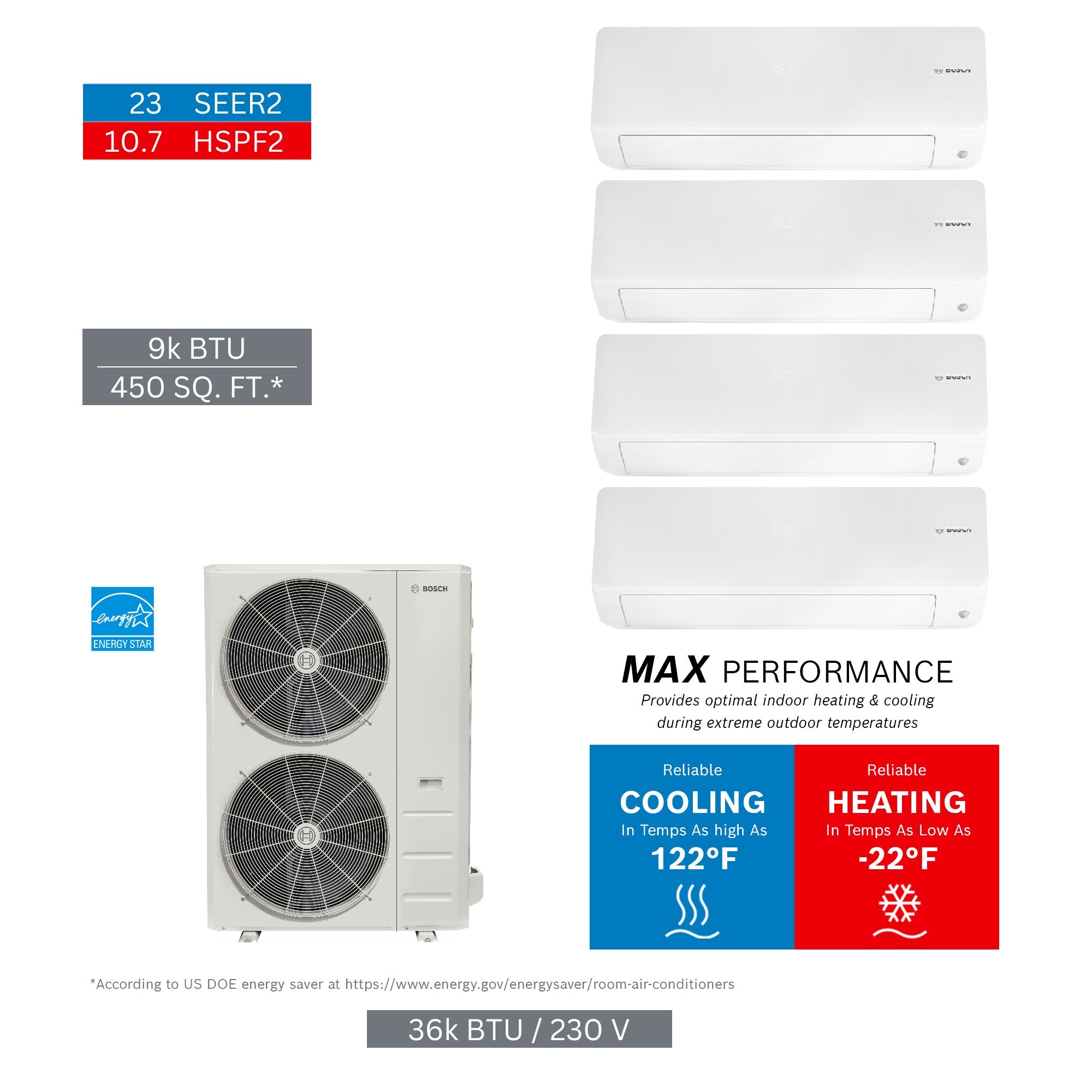

The BOSCH 8733980496 is a multi-zone ductless mini split system rated at 36000 BTU/h, designed for residential and light commercial applications requiring simultaneous climate control across four independent zones. The kit includes one outdoor condensing unit and four 9000 BTU/h indoor air handlers, providing balanced, room-by-room temperature management. Licensed HVAC technicians install this system as a complete matched assembly, avoiding the need to source and match components separately. The kit ships as a coordinated package with a net weight of 235.23 pounds.

This system is suited for multi-room residential installations, small commercial suites, or any application where a single outdoor unit must serve four distinct indoor zones without ductwork. Common install scenarios include new construction room additions, converted spaces, and retrofits where running duct is not practical. Each of the four zones is served by a dedicated 9000 BTU/h indoor unit, allowing independent temperature control in each space.

Key Features

• 36000 BTU/h total system capacity across four zones
• Four matched 9000 BTU/h indoor air handlers included in the kit
• Single outdoor condensing unit serves all four zones
• Complete matched kit reduces component sourcing and compatibility risk
• Kit net weight of 235.23 pounds; gross weight of 309.69 pounds for freight planning

Compatibility

Kit includes indoor units 8733962672 (quantity 4) and outdoor unit 8733962701 (quantity 1). These components are factory-matched for this 4-zone configuration. Consult BOSCH documentation before substituting any individual components within this assembly.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for refrigerant handling. Shut off all electrical power to the installation area before connecting any wiring or refrigerant lines. Follow all local mechanical and electrical codes, including NEC requirements for disconnect and circuit protection sizing. Do not commission the system until all refrigerant line sets are leak-tested and evacuated to manufacturer-specified vacuum levels.

Technical Specifications

• System Capacity: 36000 BTU/h
• Number of Zones: 4
• Indoor Unit Capacity (each): 9000 BTU/h
• Indoor Unit Part Number: 8733962672 (x4)
• Outdoor Unit Part Number: 8733962701 (x1)
• Kit Net Weight: 235.23 pounds
• Kit Gross Weight: 309.69 pounds
• UPC: 52575023960

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980496
