Bosch 8733980485 27000 Btu 2 Zone Mini Split System

Product Description

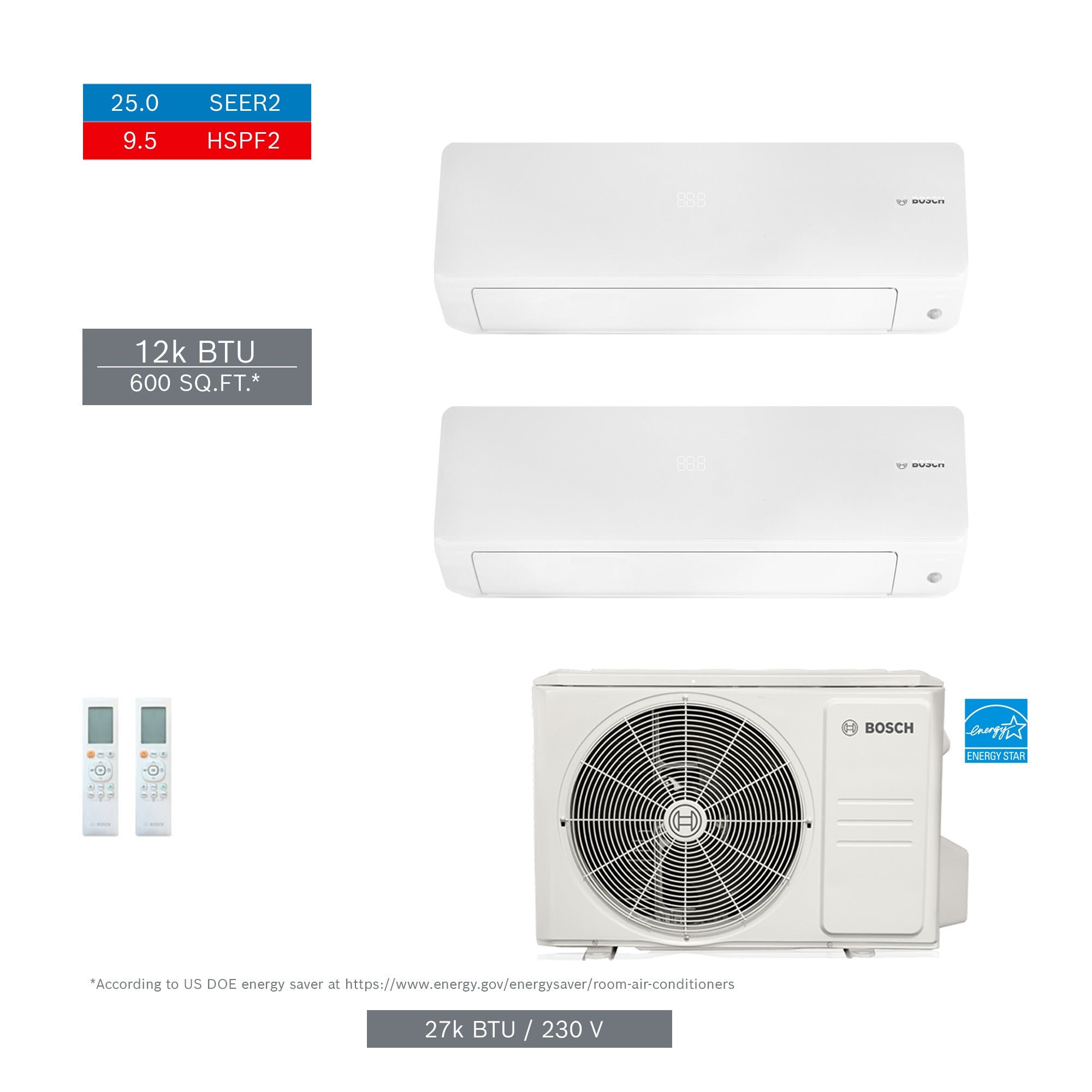

The BOSCH 8733980485 is a multi-zone ductless mini split system rated at 27000 BTU/h and configured for two-zone operation. The kit includes two 12000 BTU/h indoor air handler units and one outdoor condensing unit, providing independent climate control across two separate spaces from a single outdoor unit. This type of system is installed by licensed HVAC technicians and is suited for applications where running ductwork is impractical or where zoned temperature control is required. The kit ships at a gross weight of 214.01 pounds, with a net component weight of 161.82 pounds.

This system is designed for residential and light commercial ductless installations where two zones must be served from one outdoor unit. Typical applications include multi-room residential retrofits, additions, garage conversions, and small commercial spaces. The two included indoor units each provide 12000 BTU/h of capacity, allowing balanced distribution across both zones. Component identification for this kit is as follows: indoor units are 8733962673 (quantity 2) and the outdoor unit is 8733962696 (quantity 1).

Key Features

• 27000 BTU/h total system capacity across two zones
• Includes two 12000 BTU/h indoor air handlers (IDU 8733962673 x2)
• Includes one outdoor condensing unit (ODU 8733962696 x1)
• Ductless design eliminates need for forced-air duct infrastructure
• Kit net weight of 161.82 pounds; gross weight of 214.01 pounds
• UPC 52575023854 for receiving and inventory verification

Compatibility

This kit is configured as a two-zone ductless mini split system. Component part numbers included are indoor unit 8733962673 (x2) and outdoor unit 8733962696 (x1). Confirm refrigerant line set lengths and electrical service requirements against the individual component installation manuals before ordering line sets or disconnect hardware.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 certification for refrigerant handling. Shut off all electrical power at the disconnect and breaker panel before making any wiring connections to indoor or outdoor units. Line set routing, flare connections, and refrigerant charge procedures must follow the manufacturer installation manual for each component. Local codes and the current edition of applicable mechanical and electrical codes govern final installation requirements.

Technical Specifications

• System Capacity: 27000 BTU/h
• Configuration: 2 Zone
• Indoor Unit Capacity (each): 12000 BTU/h
• Indoor Unit Part Number: 8733962673 (quantity 2)
• Outdoor Unit Part Number: 8733962696 (quantity 1)
• Kit Net Weight: 161.82 pounds
• Kit Gross Weight: 214.01 pounds
• UPC: 52575023854

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980485
