Bosch 8733980484 Mini Split System Kit 27000 Btu 2 Zone

Product Description

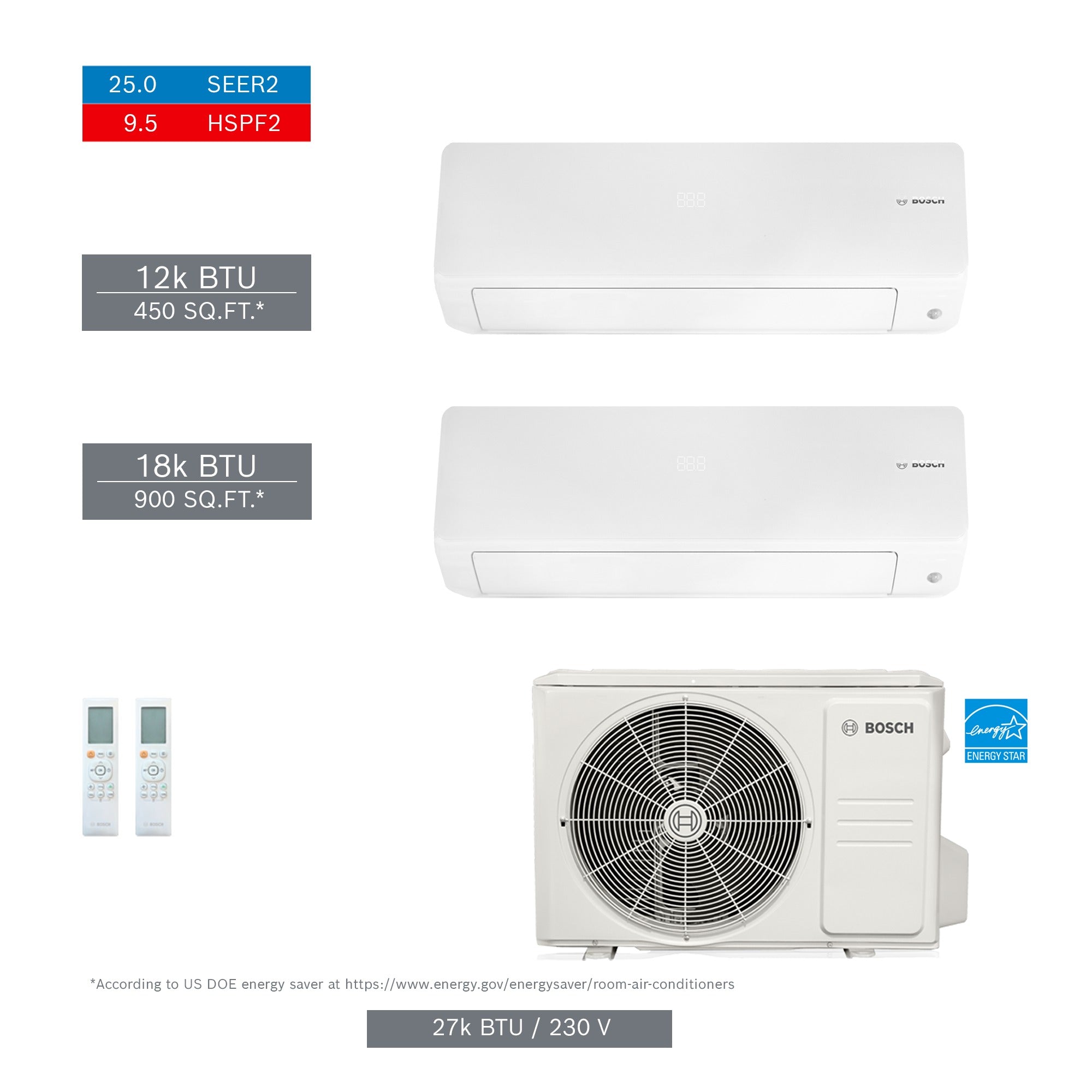

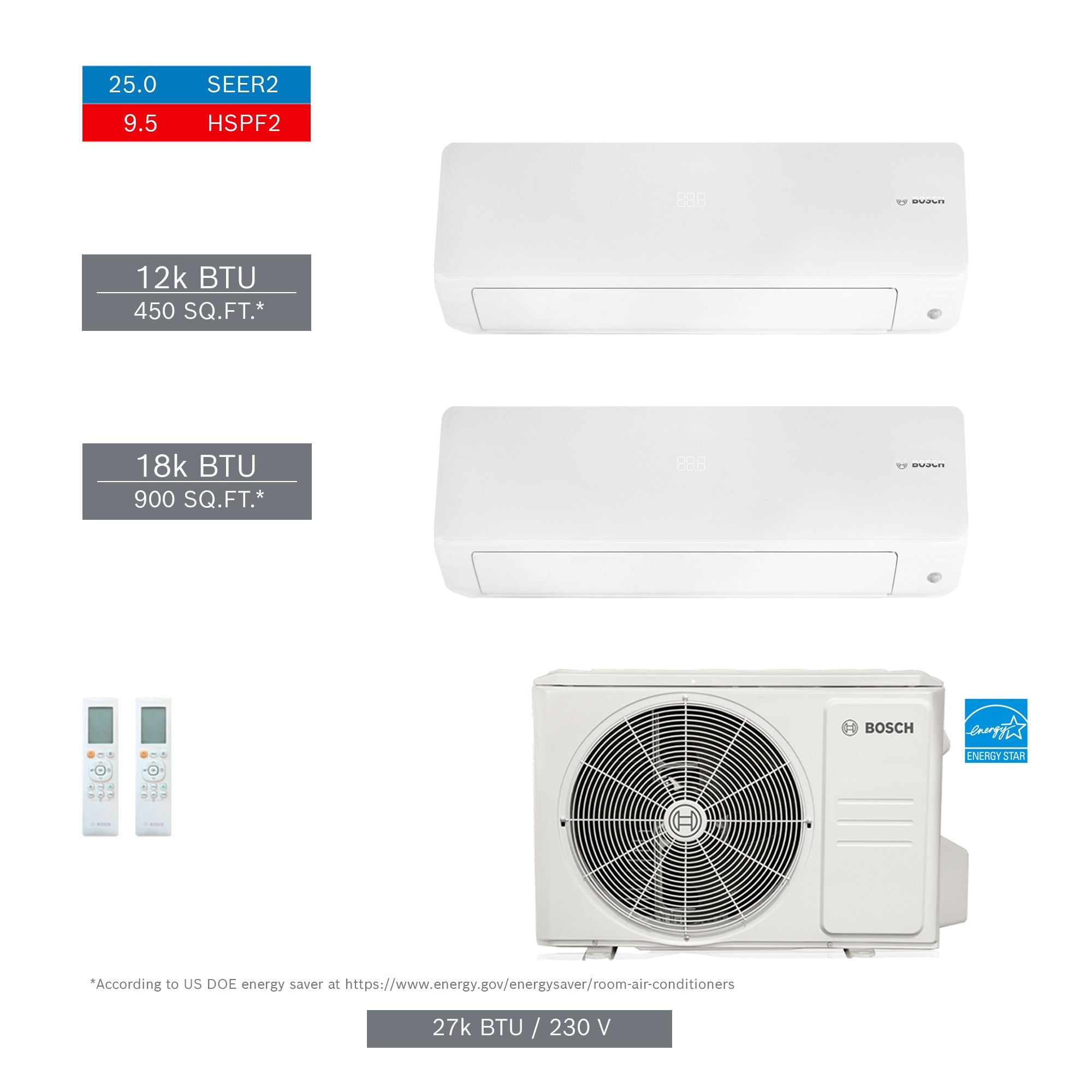

The BOSCH 8733980484 is a multi-zone mini split system kit rated at 27000 BTU, designed for residential and light commercial ductless HVAC applications. The kit ships as a complete matched set including two indoor air handlers and one outdoor condensing unit, ready for a two-zone installation. At 27000 BTU total cooling and heating capacity, the system is sized for configurations pairing one 12000 BTU zone with one 18000 BTU zone. Licensed HVAC technicians install and commission this equipment in accordance with local mechanical codes and manufacturer startup procedures.

This kit is suited for residential and light commercial ductless installations where two independently controlled comfort zones are required. Typical applications include whole-home zoning, room additions, server rooms paired with an adjoining office, or any scenario where a single outdoor unit serves two distinct spaces. The system does not include a line set and is configured without a line set guard at the Generation 4 specification level.

Key Features

• 27000 BTU total system capacity across two independently controlled zones
• Zone 1 indoor unit rated at 12000 BTU (component 8733962673)
• Zone 2 indoor unit rated at 18000 BTU (component 8733962674)
• Matched outdoor condensing unit (component 8733962696) included in kit
• Generation 4 platform — no line set guard configuration
• Complete matched-set kit simplifies procurement for two-zone installs

Compatibility

This kit is a factory-matched two-zone ductless mini split system. Included components are indoor unit 8733962673 (x1), indoor unit 8733962674 (x1), and outdoor unit 8733962696 (x1). Components are matched at the factory and should not be substituted with non-kit units.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for refrigerant handling. Power down and lock out all electrical circuits before connecting or disconnecting any system components. Line sets are not included and must be sized and field-installed per the manufacturer specifications and local mechanical codes. Follow all local building codes and manufacturer startup procedures before commissioning the system.

Technical Specifications

• System Capacity: 27000 BTU
• Number of Zones: 2
• Zone 1 Capacity: 12000 BTU
• Zone 2 Capacity: 18000 BTU
• Kit Net Weight: 189.16 pounds
• Kit Gross Weight: 250.61 pounds
• UPC: 52575023847

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980484
