Bosch 8733980483 Multi-zone Mini-split 27000 Btu 3 Zone

Product Description

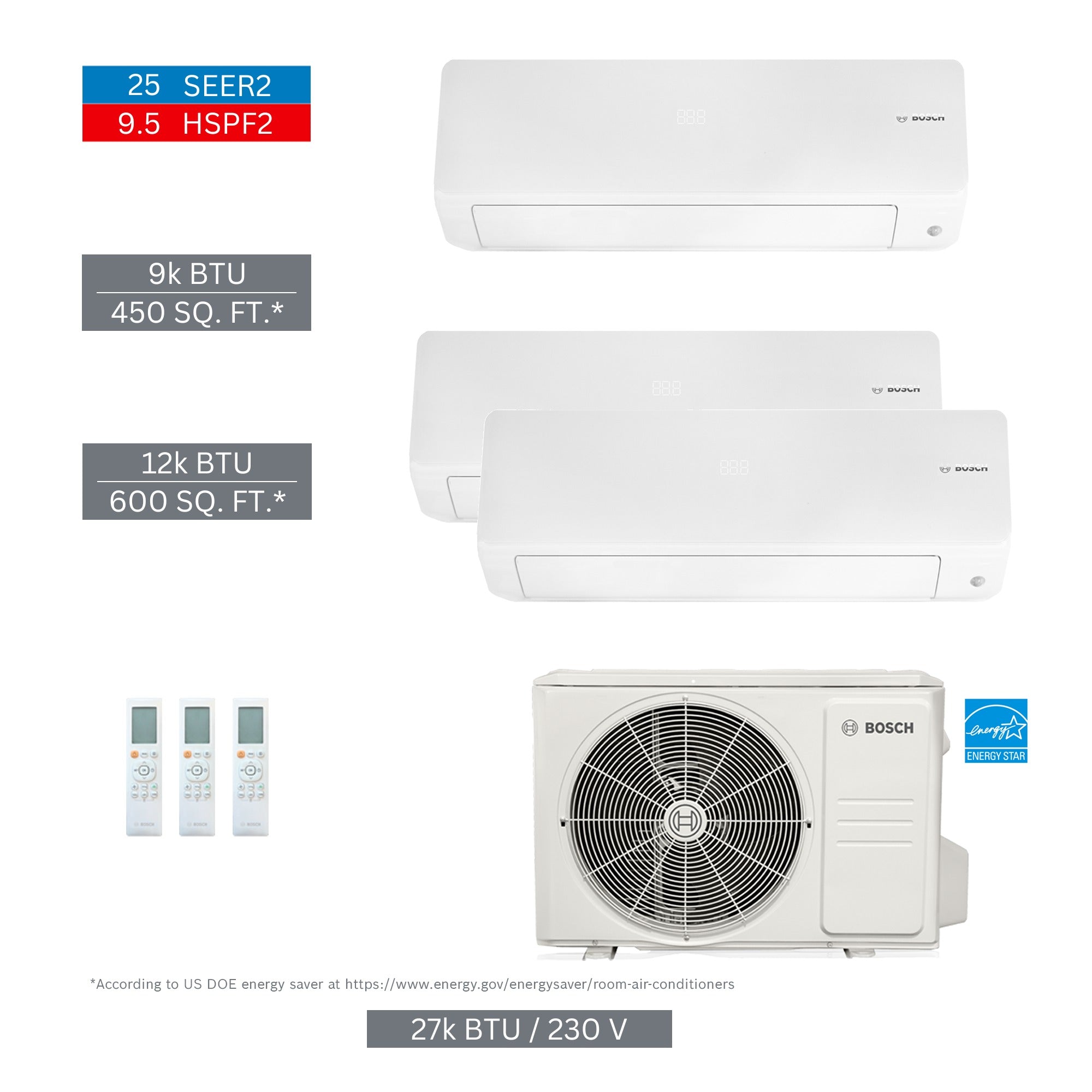

The BOSCH 8733980483 is a multi-zone ductless mini-split system rated at 27000 BTU designed for three-zone residential or light commercial climate control. The kit bundles matched indoor and outdoor units into a single SKU, simplifying procurement and ensuring component compatibility straight out of the box. One 9000 BTU indoor unit and two 12000 BTU indoor units pair with a single outdoor condensing unit, giving installing technicians the flexibility to condition three separate spaces from one refrigerant circuit. Licensed HVAC technicians handle installation, including refrigerant line sizing, electrical connections, and commissioning.

This system is suited for residential applications such as multi-room homes, additions, or open-plan spaces where independent zone temperature control is required. It is also applicable in light commercial settings such as offices or retail suites with distinct thermal zones. The three-zone configuration allows each indoor unit to operate at different setpoints simultaneously, making it a practical replacement for older split systems or an upgrade from window units in buildings without existing ductwork.

Key Features

• 27000 BTU total system capacity across three independent zones
• Includes one 9000 BTU indoor unit (8733962672) and two 12000 BTU indoor units (8733962673)
• Matched outdoor condensing unit (8733962696) included in kit
• Single-kit procurement simplifies ordering and ensures factory-matched components
• Ductless design enables installation in spaces without existing duct infrastructure

Compatibility

Kit includes component units IDU 8733962672, IDU 8733962673 (quantity two), and ODU 8733962696 as factory-matched assemblies. No additional indoor or outdoor unit substitutions are specified for this kit configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Before any service or line set connection work, shut off all electrical power to the system at the disconnect and breaker. Follow local mechanical and electrical codes for line set sizing, drain line routing, and dedicated circuit requirements. Do not mix components from other system kits or brands, as performance and warranty coverage depend on factory-matched unit pairing.

Technical Specifications

• System Capacity: 27000 BTU
• Number of Zones: 3
• Zone 1 Indoor Unit Capacity: 9000 BTU
• Zone 2 and Zone 3 Indoor Unit Capacity: 12000 BTU each
• Indoor Unit 1 Part Number: 8733962672 (quantity 1)
• Indoor Unit 2 Part Number: 8733962673 (quantity 2)
• Outdoor Unit Part Number: 8733962696 (quantity 1)
• Kit Net Weight: 185.19 pounds
• Kit Gross Weight: 243.99 pounds
• UPC: 52575023830

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980483
