Bosch 8733980479 27000 Btu 3-zone Mini-split Kit

Product Description

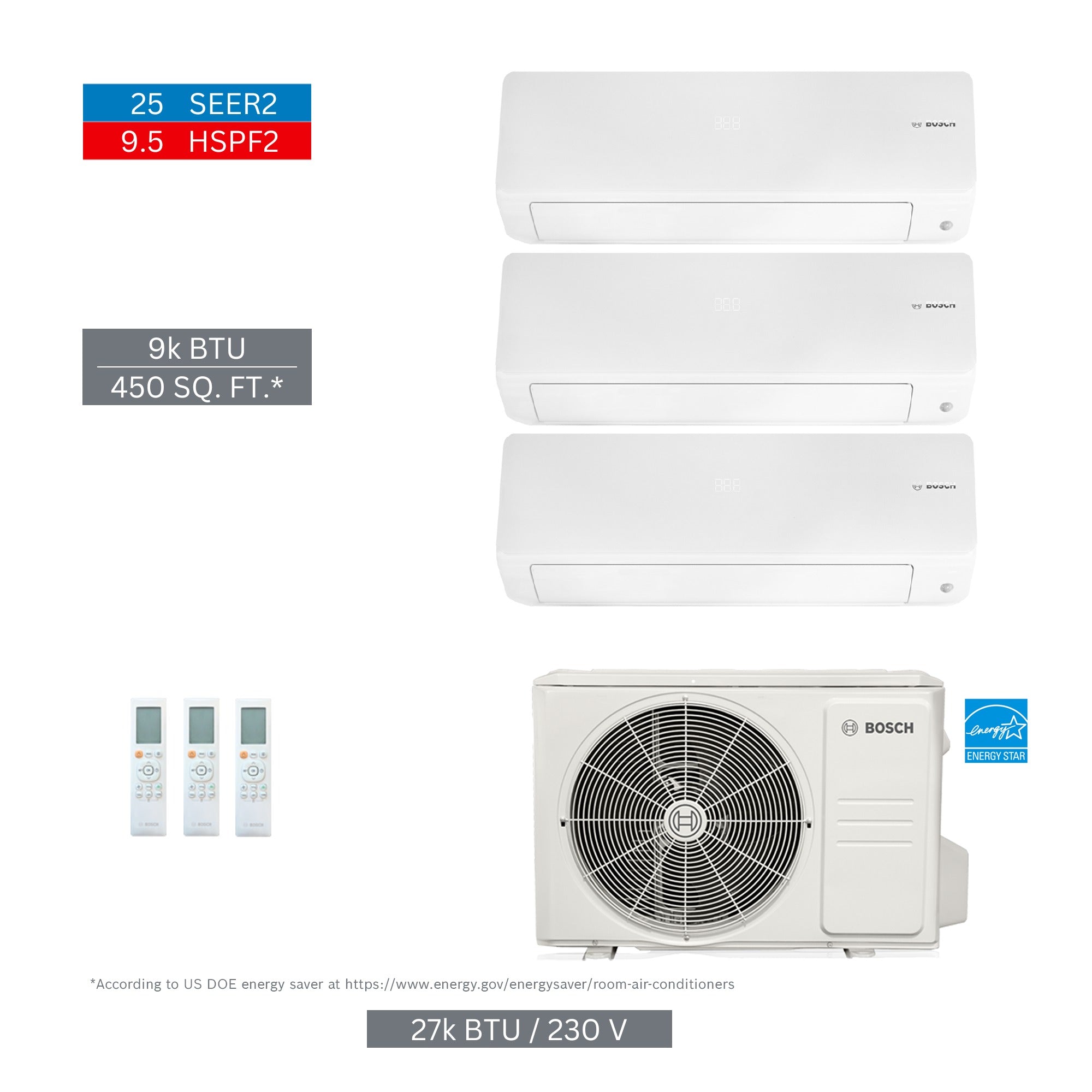

The BOSCH 8733980479 is a multi-zone ductless mini-split kit configured for three-zone residential or light-commercial cooling and heating. The kit is built around a single outdoor unit rated at 27,000 BTU and includes three 9,000 BTU indoor units, giving installers a complete matched set for multi-room climate control. This generation 4 system is designed without a line set, allowing the installing contractor to source line sets to match the specific job layout. Licensed HVAC technicians handle installation and refrigerant work in compliance with EPA Section 608 requirements.

This kit is suited for applications where a single outdoor unit must serve multiple rooms or zones independently, such as multi-room residential additions, condominiums, or small commercial spaces. Each of the three indoor units delivers 9,000 BTU of capacity, allowing individual room control without the need for ductwork. The absence of included line sets gives installers flexibility to cut and flare copper to the exact run lengths required on the job site.

Key Features

• 27,000 BTU total system capacity across three independent zones
• Three matched 9,000 BTU indoor units (IDU model 8733962672) included
• Single outdoor unit (ODU model 8733962696) serves all three zones
• Generation 4 platform with no line sets included, allowing field-specified line runs
• Complete matched kit ships as one assembly for streamlined procurement

Compatibility

This kit pairs outdoor unit 8733962696 with three indoor units 8733962672. No other specific compatible model numbers or system families were provided in the product data. Consult BOSCH product documentation to confirm compatibility with additional accessories or controls before ordering.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off all electrical power to the installation area before mounting or wiring any components. Line sets are not included and must be sized, cut, and flared on site to match the actual refrigerant run lengths. Follow all local mechanical and electrical codes, and verify that the electrical service and breaker sizing meet the outdoor unit nameplate requirements before energizing the system.

Technical Specifications

• System Capacity: 27,000 BTU
• Number of Zones: 3
• Indoor Unit Capacity (each): 9,000 BTU
• Indoor Unit Part Number: 8733962672 (qty 3)
• Outdoor Unit Part Number: 8733962696 (qty 1)
• Kit Net Weight: 162.26 pounds
• Kit Gross Weight: 214.67 pounds
• UPC: 52575023793

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980479
