Bosch 8733980475 Mini Split 36000 Btu 3 Zone 12000 Btu X3

Product Description

The BOSCH 8733980475 is a multi-zone ductless mini split system rated at 36000 BTU/h, configured for three-zone operation with three 12000 BTU/h indoor units. This kit is designed for residential and light commercial applications where independent temperature control across multiple rooms or zones is required. A licensed HVAC technician installs the system, connecting one outdoor condenser unit to three indoor air handlers. The kit ships as a complete matched assembly, which simplifies procurement and helps ensure system compatibility. Net kit weight is 191.8 pounds and gross shipping weight is 244.44 pounds.

This system suits applications such as multi-room residential retrofits, new construction without existing ductwork, or additions where extending central duct systems is not practical. The three-zone configuration allows each indoor unit to operate independently, supporting different comfort settings in separate spaces served by a single outdoor unit. This kit does not include a line set, making it appropriate where line sets are purchased or sized separately to match the specific installation layout.

Key Features

• 36000 BTU/h total system capacity across three zones
• Three 12000 BTU/h indoor units included for balanced multi-zone coverage
• Single outdoor unit serves all three indoor air handlers
• Kit sold without line set, allowing field selection of line set lengths and diameters

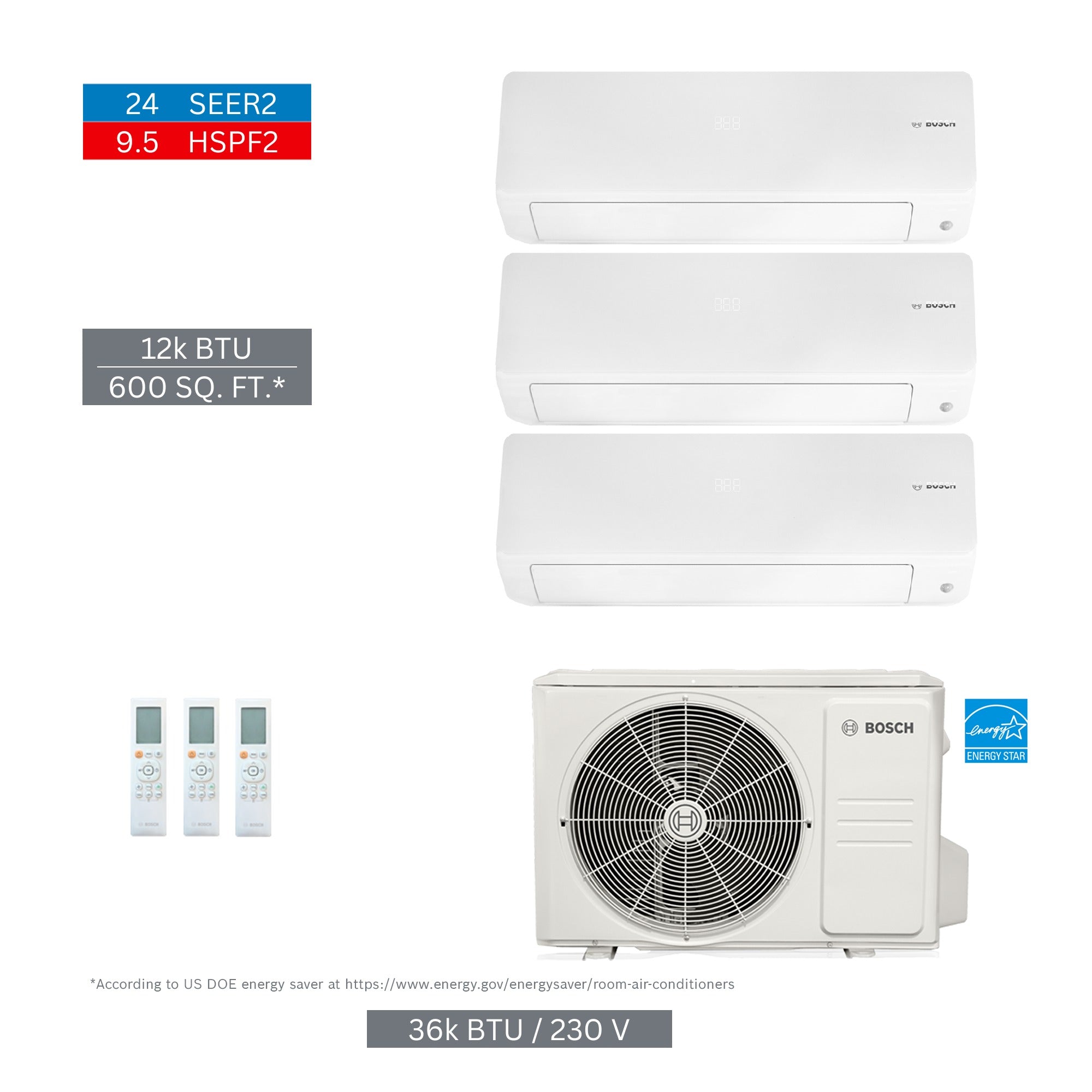

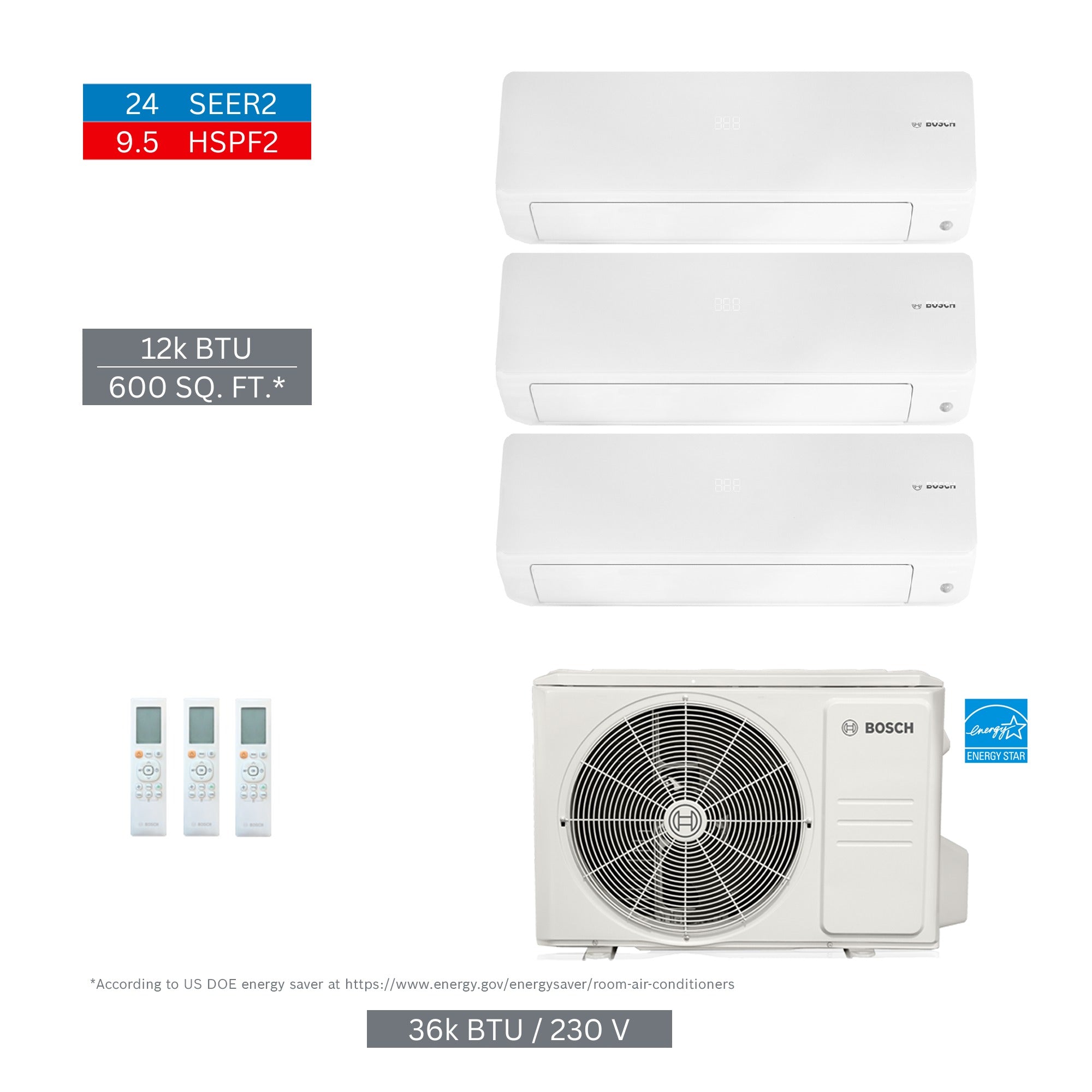

• Complete matched-component kit: three indoor units (part 8733962673) and one outdoor unit (part 8733962697)
• Kit net weight of 191.8 pounds supports logistics and handling planning

Compatibility

This kit contains indoor unit 8733962673 (quantity 3) and outdoor unit 8733962697 (quantity 1), factory-matched for the 36000 BTU/h three-zone configuration. No additional indoor or outdoor units are included.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Shut off all electrical power to the installation area before making any electrical connections. Line sets are not included and must be selected and sized for the specific installation; follow the equipment documentation for allowable line set lengths and elevation differences. All work should comply with applicable local mechanical and electrical codes.

Technical Specifications

• System Capacity: 36000 BTU/h
• Number of Zones: 3
• Indoor Unit Capacity (each): 12000 BTU/h
• Indoor Unit Part Number: 8733962673 (quantity 3)
• Outdoor Unit Part Number: 8733962697 (quantity 1)
• Kit Net Weight: 191.8 pounds
• Kit Gross Weight: 244.44 pounds
• UPC: 52575023755
• Line Set Included: No

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980475
