Bosch 8733980472 Mini Split 48000 Btu 2 Zone Dual 24000 Btu

Product Description

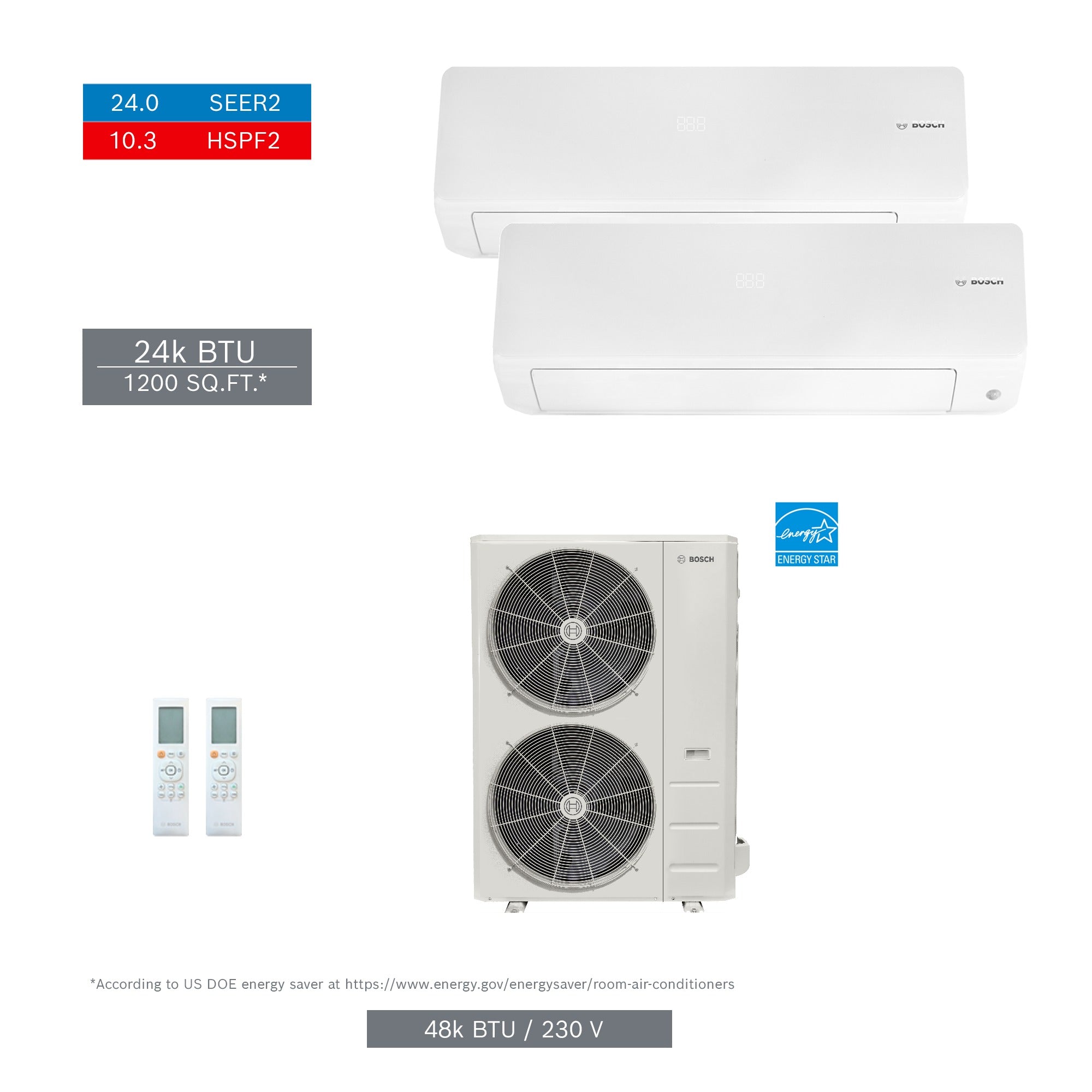

The BOSCH 8733980472 is a 2-zone ductless mini split system rated at 48000 BTU/h, designed for residential and light commercial heating and cooling applications. The kit includes two 24000 BTU/h indoor air handler units and one matched outdoor condensing unit, providing simultaneous climate control across two separate zones from a single outdoor installation. Licensed HVAC technicians install this system as a complete matched set. The outdoor unit and both indoor units are factory-matched components, helping ensure proper refrigerant circuit balance and system efficiency across both zones.

This system is suited for multi-room or multi-zone applications where independent temperature control is required without ductwork. Typical install scenarios include room additions, converted garages, offices, or residential spaces where extending existing duct systems is not practical. The 2-zone configuration allows each indoor unit to be controlled independently, making it appropriate for spaces with different occupancy schedules or comfort requirements. A licensed refrigeration technician handles line set connections, electrical hookup, and system commissioning.

Key Features

• 48000 BTU/h total system capacity across two zones
• Includes two 24000 BTU/h indoor air handler units (IDU 8733962675 x2)
• Includes one matched outdoor condensing unit (ODU 8733962698)
• Ductless design eliminates the need for supply and return duct systems
• Factory-matched components for simplified system commissioning
• Independent zone control for each indoor unit

Compatibility

This kit is a factory-assembled matched system. Compatible indoor units are IDU 8733962675 (quantity 2) and the compatible outdoor unit is ODU 8733962698 (quantity 1), as specified by the manufacturer. Components are intended to be installed as a complete matched set and should not be substituted with unverified units.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Power to the installation area must be shut off at the breaker panel before any electrical connections are made. Follow all local codes and the manufacturer installation manual for line set sizing, refrigerant line routing, electrical disconnect requirements, and drain line slope. Do not mix components from this matched kit with unverified indoor or outdoor units.

Technical Specifications

• System Capacity: 48000 BTU/h total
• Zone Count: 2 zones
• Indoor Unit Capacity: 24000 BTU/h each (x2)
• Indoor Unit Part Number: 8733962675 (x2)
• Outdoor Unit Part Number: 8733962698 (x1)
• Kit Net Weight: 265.65 pounds
• Kit Gross Weight: 344.75 pounds
• UPC: 52575023724

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980472
