Bosch 8733980468 24000 Btu Mini Split System 230V

Product Description

The BOSCH 8733980468 is a 24,000 BTU single-zone ductless mini split heat pump system rated for 230-volt operation. It delivers both cooling and heating through a matched indoor and outdoor unit pair, making it a complete system solution for residential and light-commercial applications. With a SEER2 rating of 21.0 and an HSPF2 of 13.5, this system meets high-efficiency benchmarks that matter on energy audits and utility rebate programs. The COP at 47 degrees F is 3.42, confirming solid low-ambient heating output. Licensed HVAC technicians are the primary installers for this type of equipment.

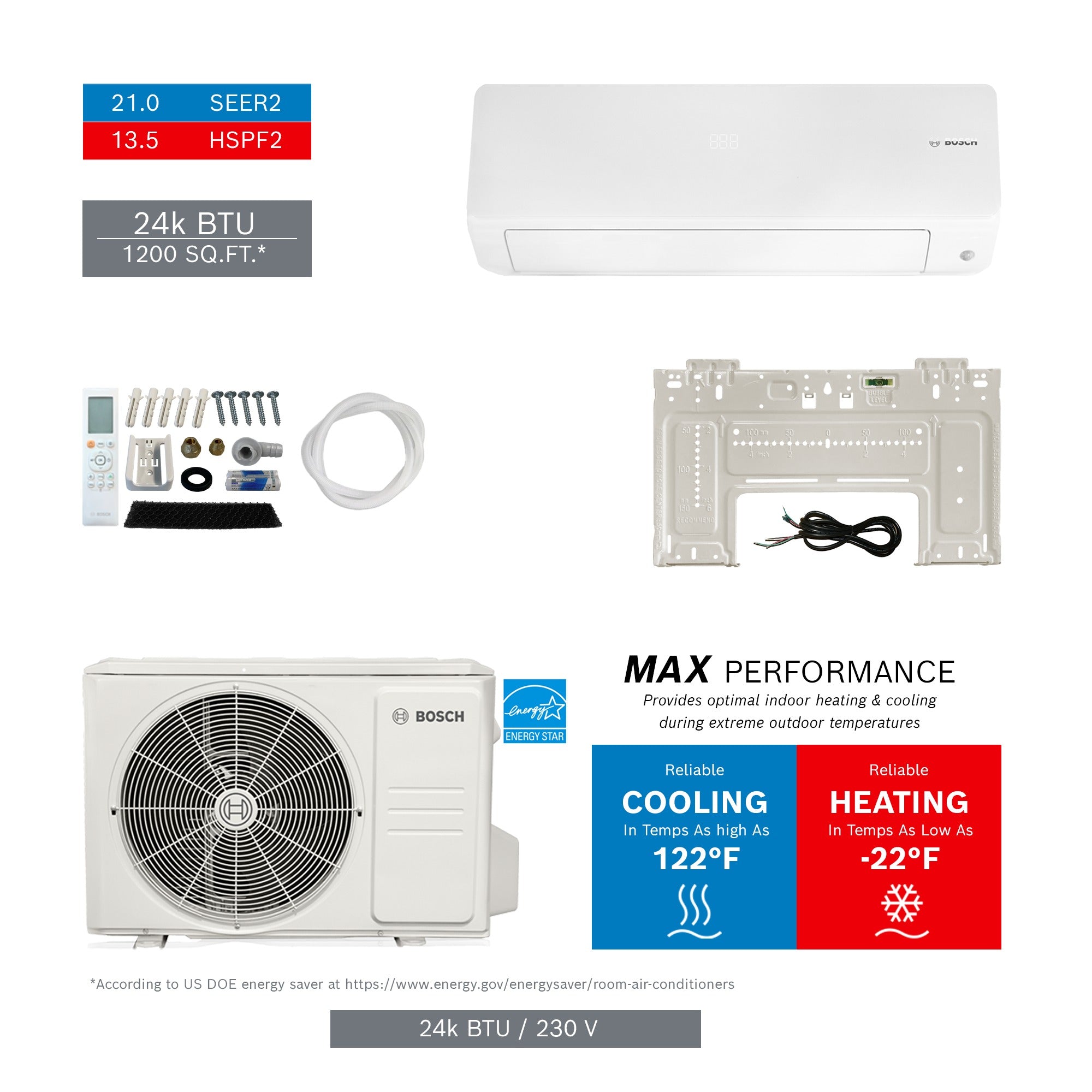

This system is suited for single-zone residential rooms, additions, server rooms, or commercial spaces where ductwork is not available or practical. The kit includes one indoor unit (IDU, part 8733962675) and one outdoor unit (ODU, part 8733962691), shipped together as a matched set. The 230-volt configuration is standard for North American residential and light-commercial mini split installations. The system carries Energy Star certification, which may qualify the installation for utility or federal efficiency incentives.

Key Features

• 24,000 BTU capacity for single-zone heating and cooling
• SEER2 21.0 efficiency rating meets current federal minimum standards with substantial margin
• HSPF2 13.5 for efficient heating performance in cold-weather climates
• EER2 13.0 steady-state cooling efficiency
• COP of 3.42 at 47 degrees F confirms effective low-ambient heating
• Energy Star certified system
• Complete kit includes matched IDU and ODU for straightforward system procurement

Compatibility

This kit is a matched single-zone system comprising indoor unit 8733962675 and outdoor unit 8733962691. Components are factory-matched and should not be paired with alternate indoor or outdoor units outside of BOSCH-approved configurations.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power at the breaker panel before any wiring work on the indoor or outdoor unit. Line set sizing, refrigerant charge verification, and electrical circuit sizing must follow the manufacturer installation manual, NEC requirements, and applicable local codes. Do not operate the system without confirming that the refrigerant circuit is leak-tested and properly evacuated.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER2: 21.0
• EER2: 13.0
• HSPF2: 13.5
• COP at 47 degrees F: 3.42
• Energy Star: Yes
• AHRI Certified: Yes
• Indoor Unit (IDU) Part Number: 8733962675
• Outdoor Unit (ODU) Part Number: 8733962691
• Kit Net Weight: 173.94 pounds
• Kit Gross Weight: 231.87 pounds
• UPC: 52575023687

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980468
