Bosch 8733980466 Mini Split Heat Pump Kit 12000 Btu/h

Product Description

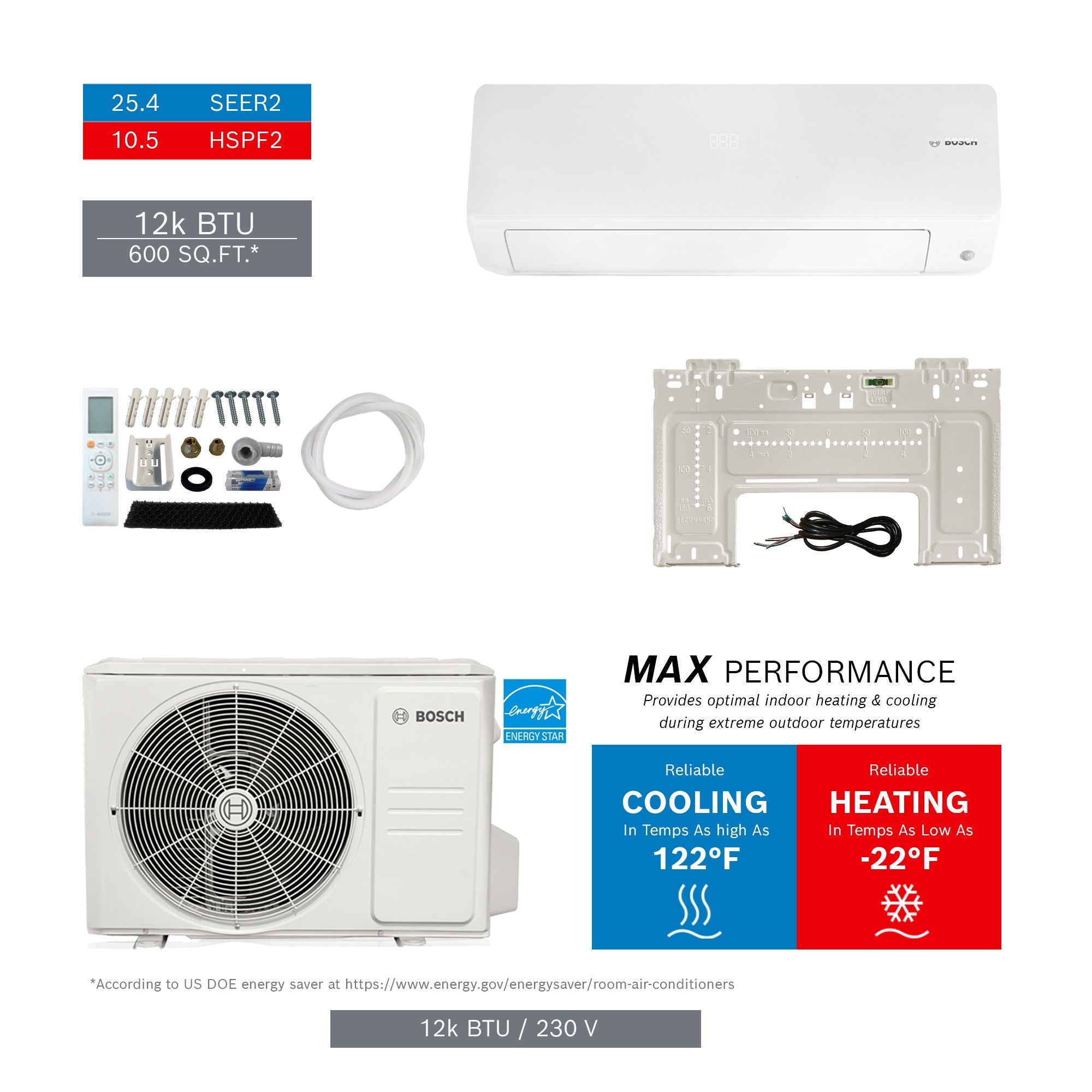

The BOSCH 8733980466 is a single-zone ductless mini split heat pump kit rated at 12,000 BTU/h for both heating and cooling. Operating on 230 volts, this kit achieves a SEER2 rating of 25.4 and an HSPF2 of 10.5, placing it in the high-efficiency category for residential and light-commercial ductless applications. The kit ships as a matched set including one indoor unit (IDU) and one outdoor unit (ODU), ready for installation by a licensed HVAC technician. Energy Star certification confirms it meets current federal efficiency requirements.

This kit is designed for single-zone ductless installations in residential and light-commercial settings where a central ducted system is impractical or unavailable. Typical applications include room additions, converted garages, accessory dwelling units, and supplemental conditioning in existing structures. The 230-volt configuration is standard for mini split systems in North American residential service panels. The matched IDU and ODU pairing ensures the rated efficiency and capacity values are achieved under AHRI test conditions.

Key Features

• 12,000 BTU/h AHRI-rated cooling and heating capacity
• SEER2 25.4 and EER2 13.4 for high-efficiency cooling performance
• HSPF2 10.5 heating efficiency with COP of 3.76 at 47 degrees F
• Energy Star certified — meets current federal efficiency standards
• Single-zone kit includes matched indoor and outdoor units
• 230-volt operation compatible with standard residential electrical service

Compatibility

This kit pairs indoor unit 8733962673 with outdoor unit 8733962689 as a factory-matched single-zone system. These components are rated and certified as a set under AHRI standards.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Shut off all electrical power at the disconnect and breaker before beginning any wiring or refrigerant line work. Line set sizing, electrical disconnect requirements, and low-voltage control wiring must comply with NEC guidelines and local jurisdiction requirements. Do not attempt to alter the factory refrigerant charge or modify the matched indoor-outdoor unit pairing.

Technical Specifications

• Capacity: 12,000 BTU/h
• Voltage: 230 volts
• SEER2: 25.4
• EER2: 13.4
• HSPF2: 10.5
• COP at 47 degrees F: 3.76
• Energy Star: Yes
• Kit Net Weight: 95.68 pounds
• Kit Gross Weight: 143.02 pounds
• UPC: 52575023663

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980466
