Bosch 8733980450 27K 2-zone Mini Split Kit 12K 18K

Product Description

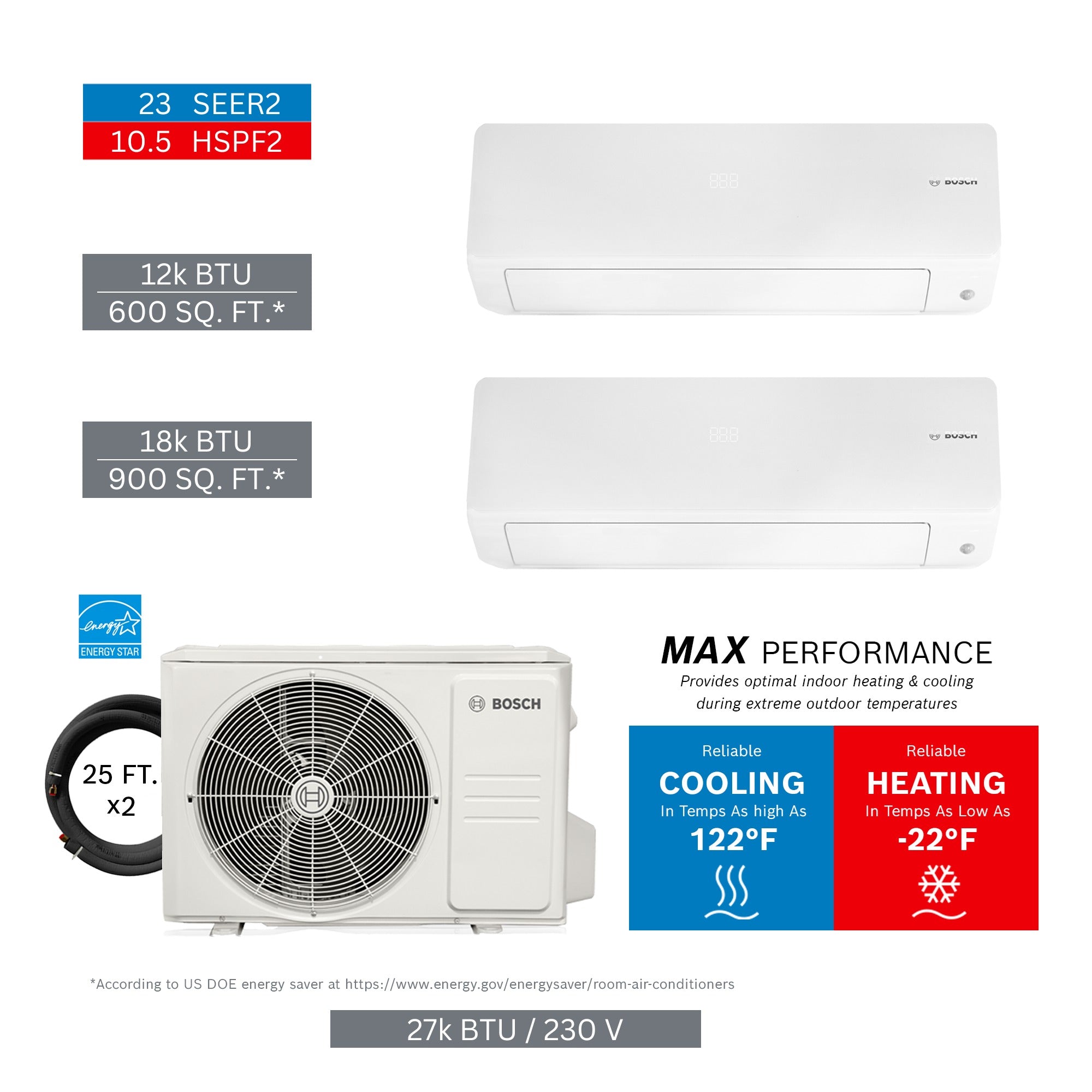

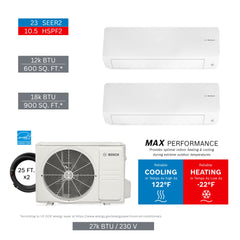

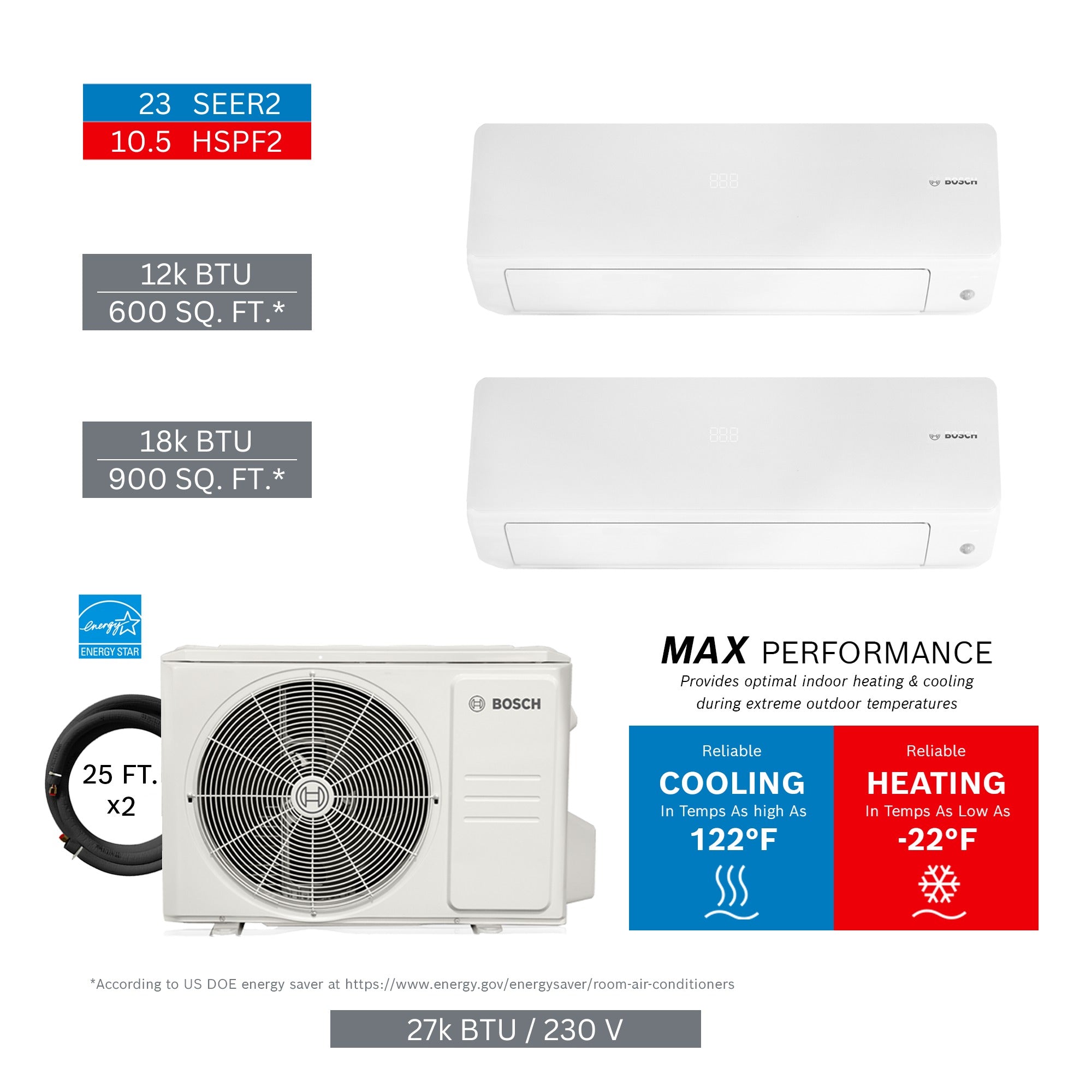

The BOSCH 8733980450 is a complete 2-zone mini split system kit rated at 27,000 BTU/h, designed for residential and light commercial ductless cooling and heating applications. This kit bundles a single outdoor unit with two indoor air handlers and pre-measured line sets, giving HVAC technicians everything needed to complete a multi-zone installation in a single order. The kit ships as a matched-component assembly, which helps ensure refrigerant circuit compatibility across all zones from the start of commissioning.

This system is suited for residential multi-room applications where individual zone control is required without ductwork. Typical installations include single-family homes, additions, garages, or light commercial spaces where two separate zones need independent temperature management. The 27,000 BTU/h total capacity is split across a 12,000 BTU/h indoor unit and an 18,000 BTU/h indoor unit, allowing flexibility in room sizing and load matching. The included 25-foot line sets cover standard through-wall or overhead runs in most residential scenarios.

Key Features

• Complete 2-zone kit includes outdoor unit, two indoor air handlers, and line sets — no separate component sourcing required
• 27,000 BTU/h total system capacity split across 12,000 BTU/h and 18,000 BTU/h zones
• Two 25-foot line sets included for standard residential line runs
• Matched-component assembly supports refrigerant circuit compatibility out of the box
• Kit net weight of 228.55 pounds; kit gross weight of 290.44 pounds for freight and rigging planning

Compatibility

This kit includes indoor unit 8733962673 (12,000 BTU/h), indoor unit 8733962674 (18,000 BTU/h), outdoor unit 8733962700, and line set 8733951011 (x2). Components are factory-matched for use together as a complete 2-zone ductless system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Power to all circuits must be disconnected before connecting or inspecting any electrical components. Line set routing, refrigerant charging, and condensate drainage must comply with local mechanical codes and the manufacturer installation instructions included with each component. Do not mix components from this kit with unmatched outdoor or indoor units without verifying system compatibility through the manufacturer.

Technical Specifications

• Total System Capacity: 27,000 BTU/h
• Zone 1 Indoor Unit Capacity: 12,000 BTU/h
• Zone 2 Indoor Unit Capacity: 18,000 BTU/h
• Number of Zones: 2
• Line Set Length: 25 feet (x2)
• Kit Net Weight: 228.55 pounds
• Kit Gross Weight: 290.44 pounds
• UPC: 52575023502

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980450
