Bosch 8733980442 36000 Btu 2-zone Mini-split Kit

Product Description

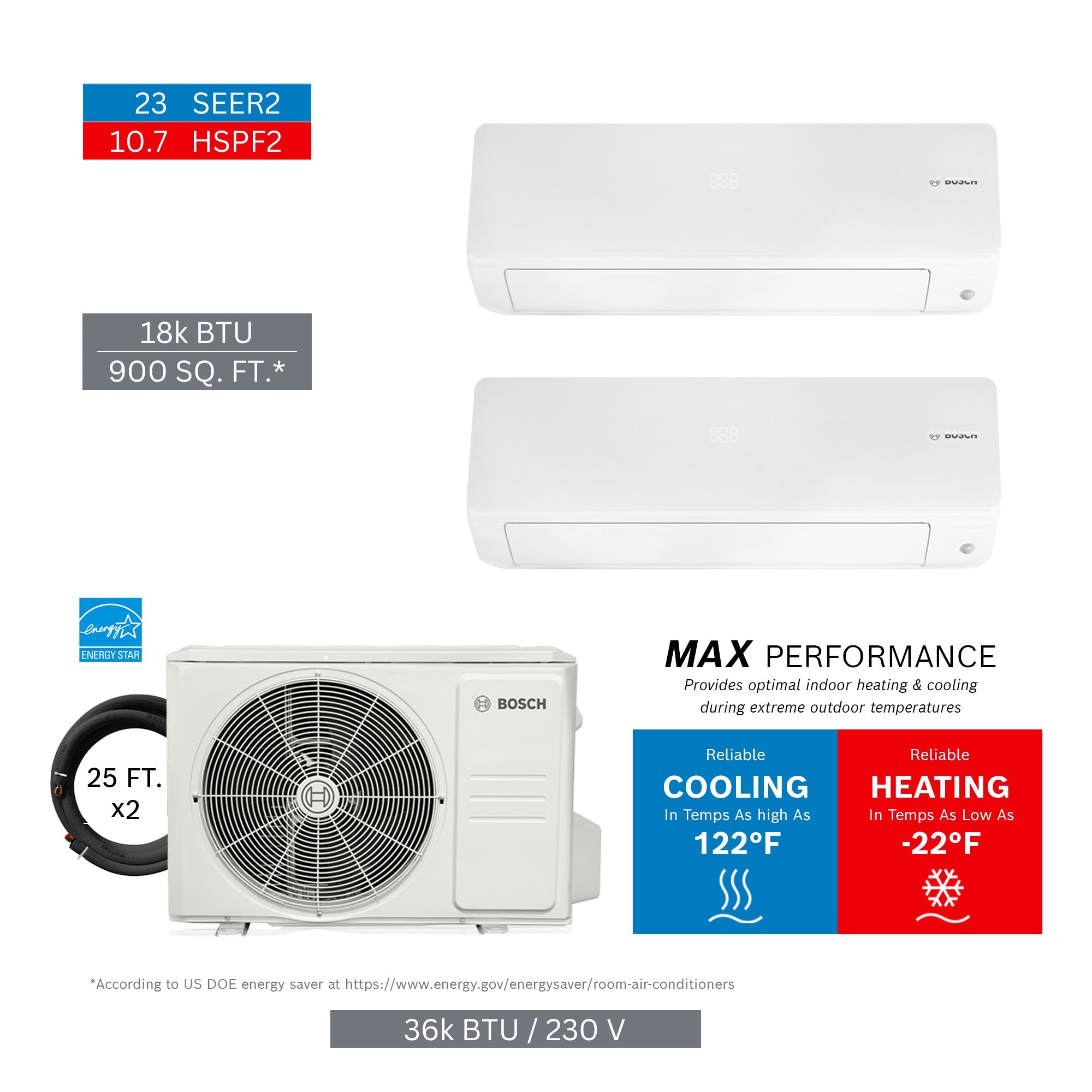

The BOSCH 8733980442 is a complete 2-zone mini-split system kit rated at 36000 BTU/h, designed for residential and light-commercial ductless HVAC applications. This kit ships with all major components needed for a multi-zone installation, including two indoor air handlers, one outdoor condensing unit, and two pre-measured line sets. HVAC technicians handling multi-zone ductless work will find this a practical all-in-one procurement. The kit net weight is 249.05 pounds, with a gross shipping weight of 326.16 pounds.

This system is suited for installations where two separate zones require independent climate control from a single outdoor unit. Typical applications include residential additions, multi-room retrofits, small commercial spaces, and new construction where duct runs are impractical. Each indoor unit is rated at 18000 BTU/h, and each zone includes a 25-foot line set, reducing the need for field-sourced refrigerant tubing in standard layout installations. A licensed HVAC contractor should assess site conditions to confirm line set routing and system placement before ordering.

Key Features

• Complete 2-zone kit with matched indoor and outdoor components from a single manufacturer
• Two 18000 BTU/h indoor air handlers (IDU model 8733962674, quantity 2) for individual zone control
• One outdoor condensing unit (ODU model 8733962701) supporting both zones
• Two 25-foot line sets (model 8733951011, quantity 2) included for straightforward installation
• Total system capacity of 36000 BTU/h suitable for multi-room or multi-zone load coverage

Compatibility

This kit includes component part numbers IDU 8733962674 (x2), ODU 8733962701 (x1), and line set 8733951011 (x2) as specified in the supplier kit manifest. All components are matched within this BOSCH MAX series 2-zone configuration.

Installation Notes

Installation of this multi-zone mini-split system must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power before handling refrigerant lines or making electrical connections at the outdoor unit and air handlers. Verify local mechanical and electrical codes, including NEC requirements for dedicated circuits and disconnect placement, prior to starting work. Do not exceed the included line set lengths without consulting manufacturer guidance on refrigerant charge adjustments.

Technical Specifications

• System Capacity: 36000 BTU/h
• Number of Zones: 2
• Indoor Unit Capacity (each): 18000 BTU/h
• Line Set Length (each): 25 feet
• Kit Net Weight: 249.05 pounds
• Kit Gross Weight: 326.16 pounds
• Indoor Unit MPN: 8733962674 (qty 2)
• Outdoor Unit MPN: 8733962701 (qty 1)
• Line Set MPN: 8733951011 (qty 2)
• UPC: 52575023427

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980442
