Bosch 8733980439 48k 4-zone Mini-split System Kit

Product Description

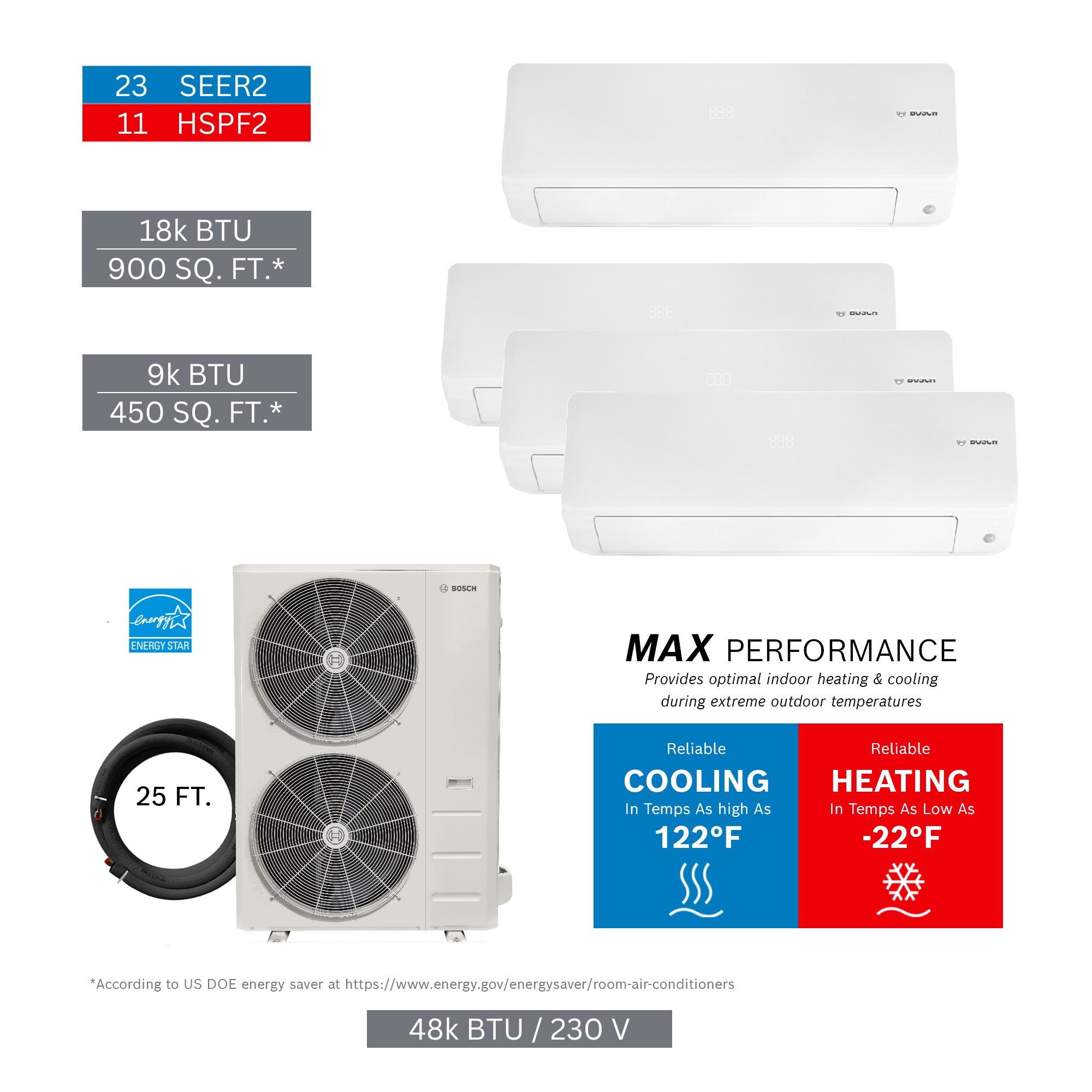

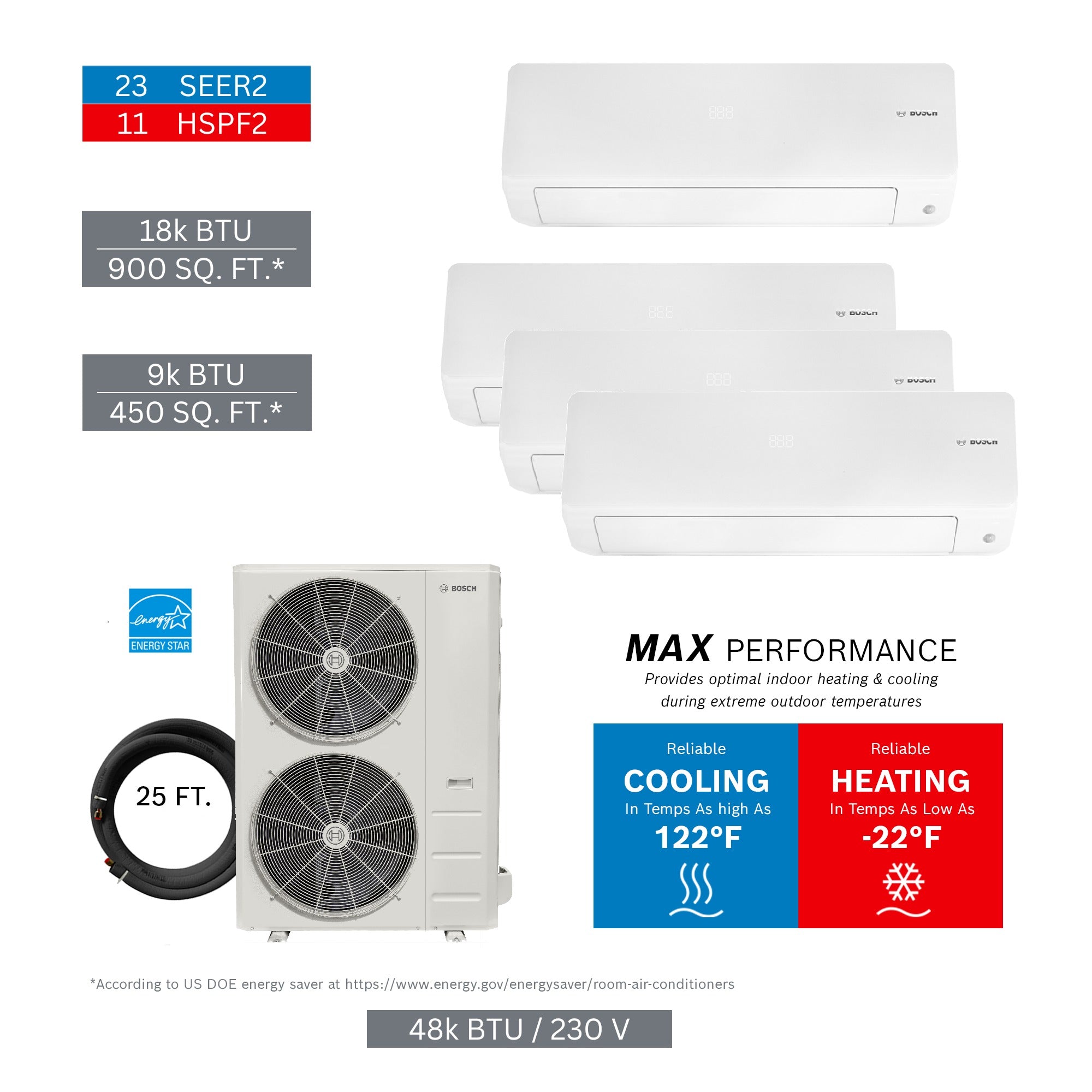

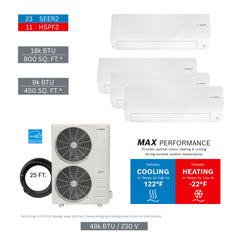

The BOSCH 8733980439 is a 48,000 BTU multi-zone ductless mini-split system kit configured for four zones. It includes three 9,000 BTU indoor air handlers and one 18,000 BTU indoor air handler paired with a single outdoor condensing unit. Each zone ships with 25-foot line sets, making this a complete package for licensed HVAC technicians handling multi-room or multi-zone residential and light commercial installations. The kit arrives ready to install with matched indoor and outdoor components, reducing sourcing time on multi-zone jobs.

This system is suited for residential applications where four independent comfort zones are required — such as multi-bedroom homes, additions, or spaces that cannot support ducted distribution. The three smaller 9,000 BTU heads cover standard-sized rooms while the 18,000 BTU unit handles larger living areas or open-floor-plan spaces. All indoor and outdoor units are factory-matched within this kit, and the included 25-foot line sets cover typical wall-penetration distances in standard residential construction.

Key Features

• 48,000 BTU total system capacity across four independently controlled zones
• Includes three 9,000 BTU indoor units (part 8733962672) and one 18,000 BTU indoor unit (part 8733962674)
• Single outdoor condensing unit (part 8733962702) serves all four zones
• Four 25-foot line sets included — three matching the 9k heads (part 8733951010) and one for the 18k head (part 8733951011)
• Complete kit reduces component sourcing and ensures factory-matched system performance

Compatibility

This kit is a factory-assembled multi-zone system package. Component part numbers are: indoor unit 8733962672 (qty 3), indoor unit 8733962674 (qty 1), outdoor unit 8733962702 (qty 1), line set 8733951010 (qty 3), and line set 8733951011 (qty 1). Install only with the matched components included in this kit.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off all electrical power at the disconnect before making any wiring or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for disconnect sizing and branch circuit protection. Do not mix line sets or indoor units from other system families with the components in this kit, as factory matching is required for rated performance and warranty validity.

Technical Specifications

• System Capacity: 48,000 BTU/h
• Zone Count: 4 zones
• Indoor Unit 1: 8733962672, 9,000 BTU/h (qty 3)
• Indoor Unit 2: 8733962674, 18,000 BTU/h (qty 1)
• Outdoor Unit: 8733962702 (qty 1)
• Line Set 1: 8733951010, 25 feet (qty 3)
• Line Set 2: 8733951011, 25 feet (qty 1)
• Kit Net Weight: 315.53 pounds
• Kit Gross Weight: 396.61 pounds
• UPC: 52575023397

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980439
