Bosch 8733980421 Mini Split 36000 Btu 3-zone System Kit

Product Description

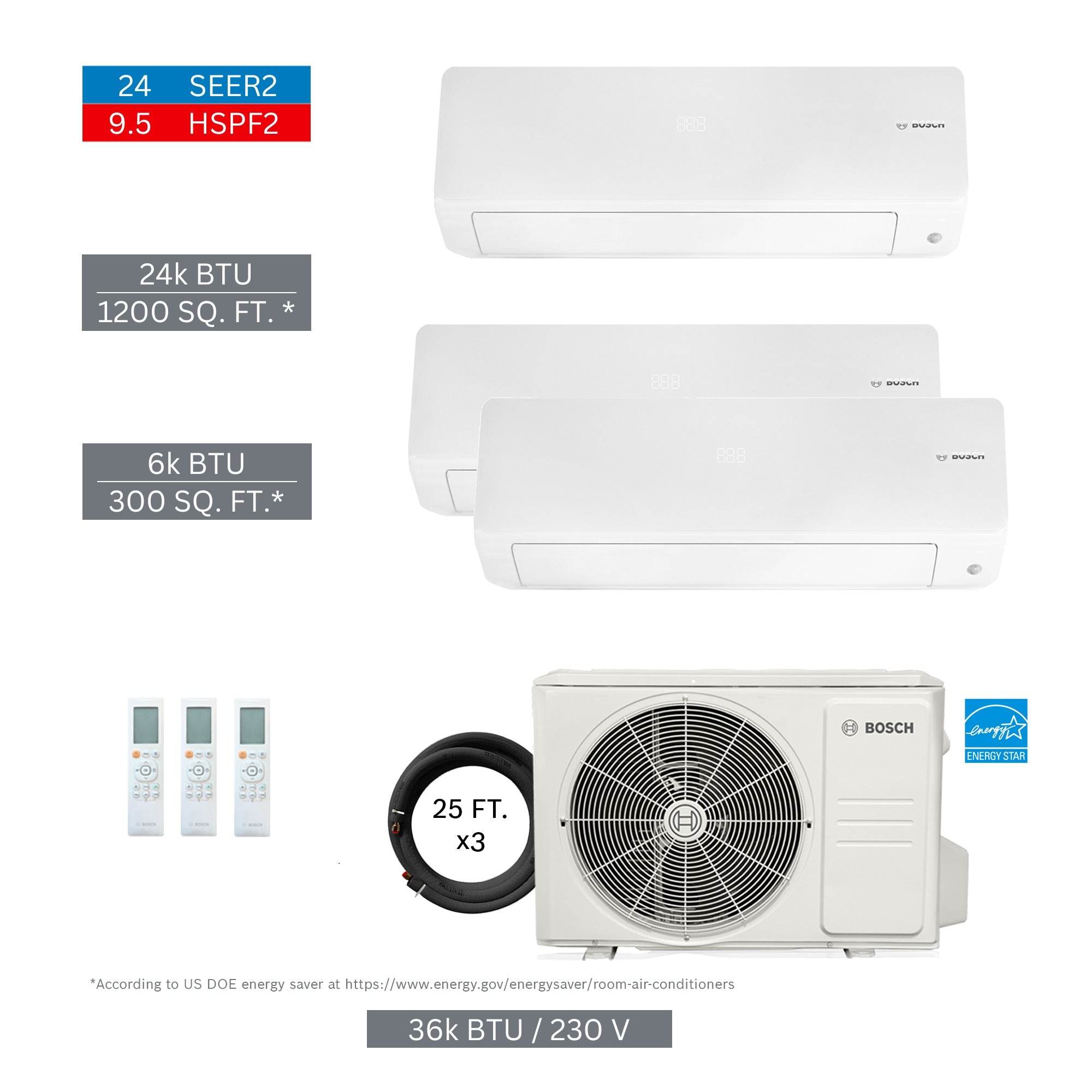

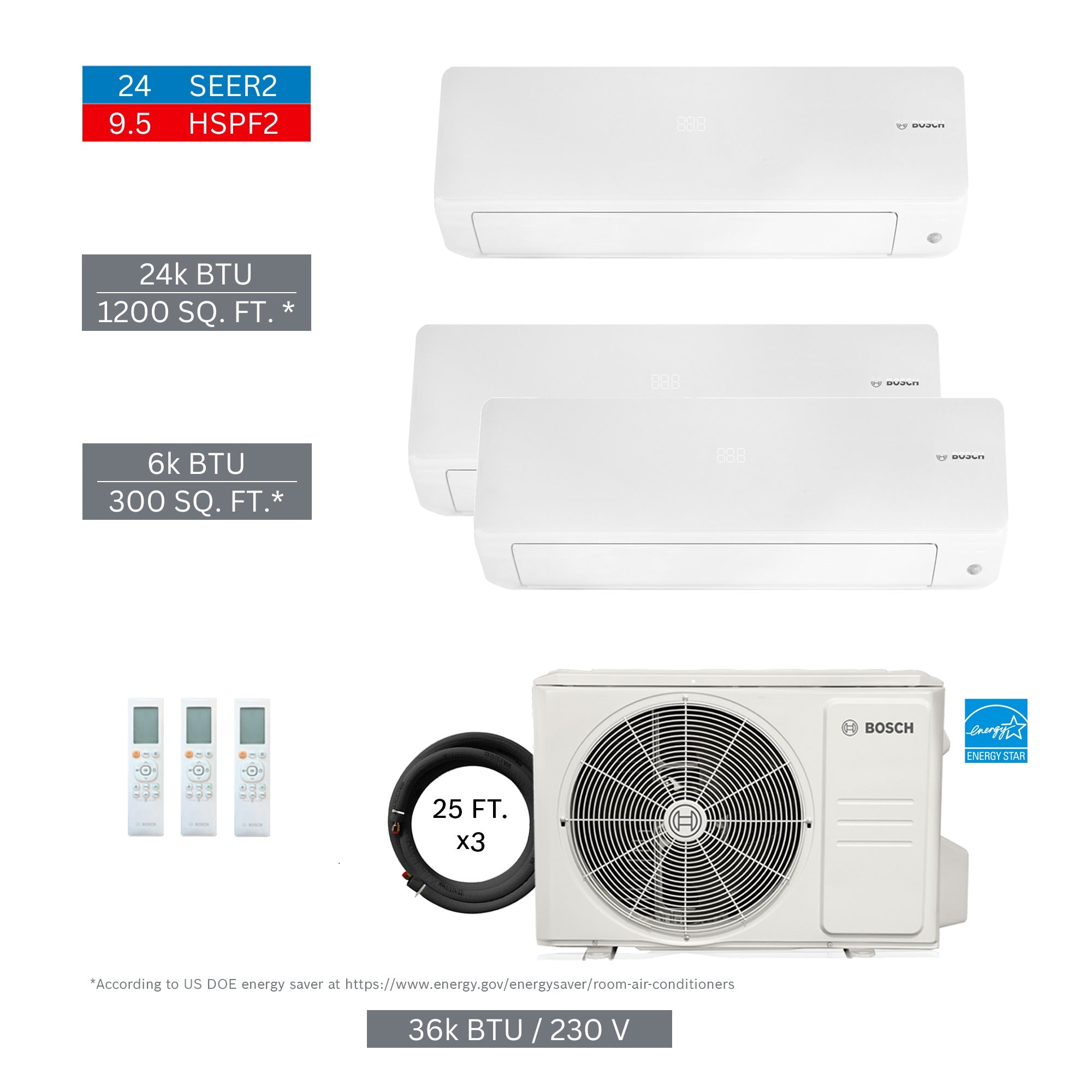

The BOSCH 8733980421 is a multi-zone ductless mini split system kit rated at 36000 BTU, configured for three zones. The kit bundles an outdoor condensing unit, two indoor air handler units, and pre-cut line sets into a single order, reducing procurement steps for the installing contractor. One indoor unit is rated at 24000 BTU and two units are rated at 6000 BTU each, allowing a mix of high-load and low-load zones within a single system. Licensed HVAC technicians handle installation, which involves refrigerant line connection, electrical rough-in, and low-voltage control wiring. The total kit net weight is 257.19 pounds.

This kit is suited for residential and light commercial applications where multiple rooms or zones require independent temperature control without ductwork. Typical scenarios include new construction, additions, or retrofits where running duct is impractical. The 25-foot line sets included in this kit cover standard single-story or short-run multi-story installations. The configuration of one large zone and two smaller zones fits common layouts such as a primary living area paired with two secondary rooms or offices.

Key Features

• 36000 BTU total system capacity across three independently controlled zones
• Includes one 24000 BTU indoor unit and two 6000 BTU indoor units for mixed-load zoning
• 25-foot line sets included for both indoor unit runs, reducing field sourcing
• Complete kit ships as a single assembly including outdoor unit, indoor units, and line sets
• Kit net weight 257.19 pounds; kit gross weight 321.96 pounds for freight and rigging planning

Compatibility

This kit includes the following matched components: indoor unit 8733962675 (qty 1), indoor unit 8733962676 (qty 2), outdoor unit 8733962697 (qty 1), line set 8733951015 (qty 1), and line set 8733951010 (qty 2). Components are factory-matched for this kit configuration and should not be substituted with unverified alternatives.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Power down all electrical circuits at the breaker panel before making any wiring connections. The outdoor unit requires a dedicated circuit sized per the equipment nameplate and local electrical code. Verify line set routing, support spacing, and condensate drain slope before commissioning the system.

Technical Specifications

• System Capacity: 36000 BTU
• Number of Zones: 3
• Zone 1 Capacity: 24000 BTU
• Zone 2 and Zone 3 Capacity: 6000 BTU each
• Included Line Set Length: 25 feet
• Kit Net Weight: 257.19 pounds
• Kit Gross Weight: 321.96 pounds
• UPC: 52575023212

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980421
