Bosch 8733980418 36000 Btu 4-zone Mini Split System

Product Description

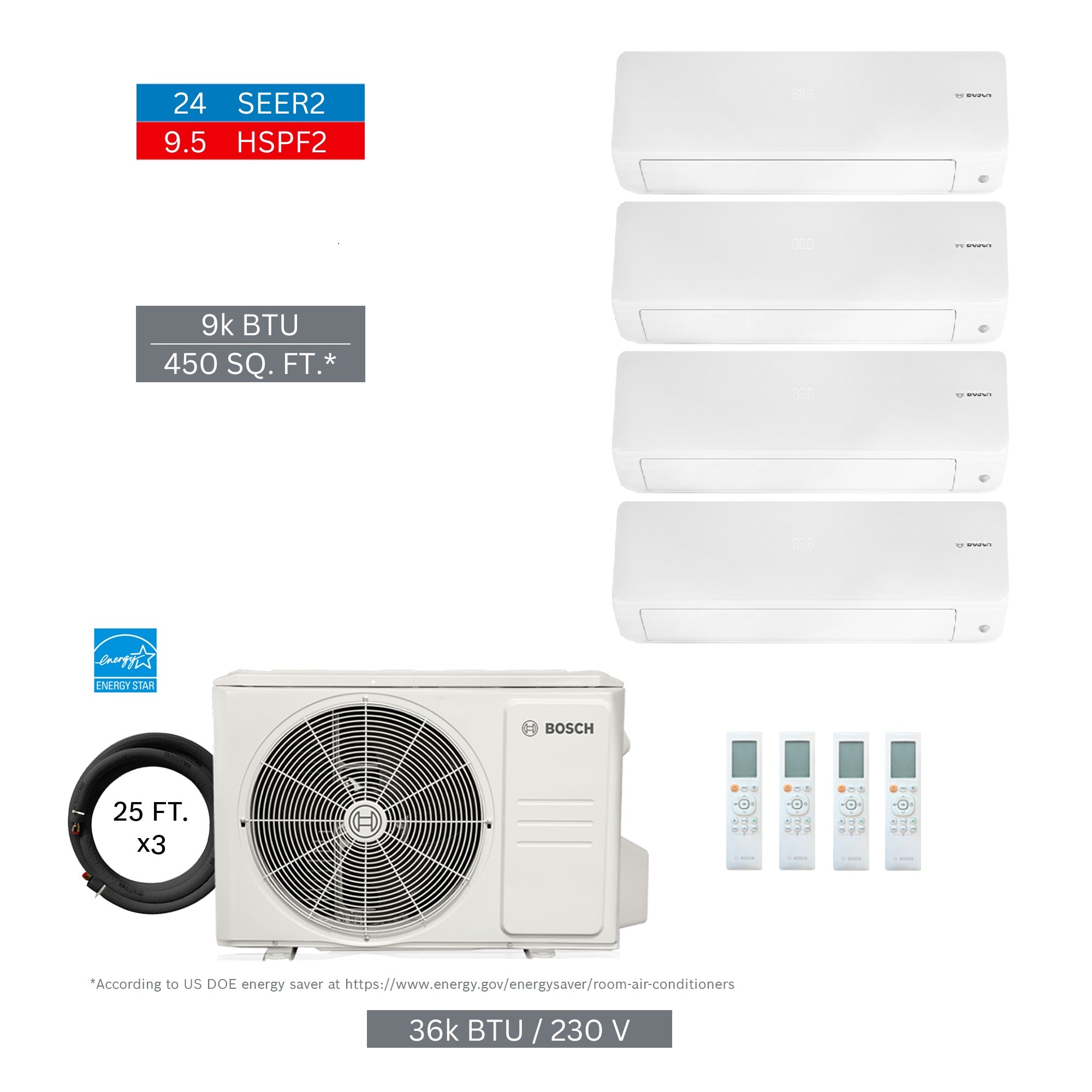

The BOSCH 8733980418 is a 36,000 BTU multi-zone ductless mini split system configured for four zones, each served by a 9,000 BTU indoor unit. The kit ships as a complete system assembly, including four indoor air handlers, one outdoor condensing unit, and four 25-foot line sets. It is designed for residential and light commercial applications where independent temperature control across multiple rooms or zones is required. Licensed HVAC technicians install this type of system as a refrigerant-charged, low-voltage-controlled split system following applicable mechanical and electrical codes.

This system is suited for new construction, retrofit, or addition applications where running ductwork is impractical. The four-zone configuration allows each indoor unit to operate independently, making it appropriate for multi-room residential installations, small offices, or supplemental cooling and heating in mixed-use spaces. Each zone is handled by a dedicated 9,000 BTU indoor unit connected to the single outdoor unit via its own 25-foot line set included in the kit.

Key Features

• 36,000 BTU total system capacity across four independently controlled zones
• Four 9,000 BTU indoor air handlers (model 8733962672) included
• One outdoor condensing unit (model 8733962697) included
• Four 25-foot pre-cut line sets (model 8733951010) included for faster installation
• Complete kit reduces sourcing time — all major system components in one SKU
• Kit net weight of 200.74 pounds; kit gross weight of 253.6 pounds

Compatibility

This kit is built around BOSCH components: four indoor units 8733962672, one outdoor unit 8733962697, and four line sets 8733951010. All components are matched at the factory as a four-zone 36,000 BTU system. No additional compatibility data was provided in the product input.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician, as this system involves refrigerant handling. Before beginning installation, disconnect all electrical power to the work area and verify the outdoor unit location meets local clearance requirements per manufacturer guidelines and applicable mechanical codes. Low-voltage wiring between indoor and outdoor units should be run and connected according to the system wiring diagram included with the equipment. All refrigerant line connections must be leak-tested and the system evacuated to a proper vacuum before charging.

Technical Specifications

• System Capacity: 36,000 BTU/h
• Number of Zones: 4
• Capacity per Zone: 9,000 BTU/h
• Line Set Length: 25 feet per zone
• Kit Net Weight: 200.74 pounds
• Kit Gross Weight: 253.6 pounds
• Indoor Unit MPN: 8733962672 (qty 4)
• Outdoor Unit MPN: 8733962697 (qty 1)
• Line Set MPN: 8733951010 (qty 4)
• UPC: 52575023182

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980418
