Bosch 8733980417 48000 Btu 4-zone Mini-split Kit

Product Description

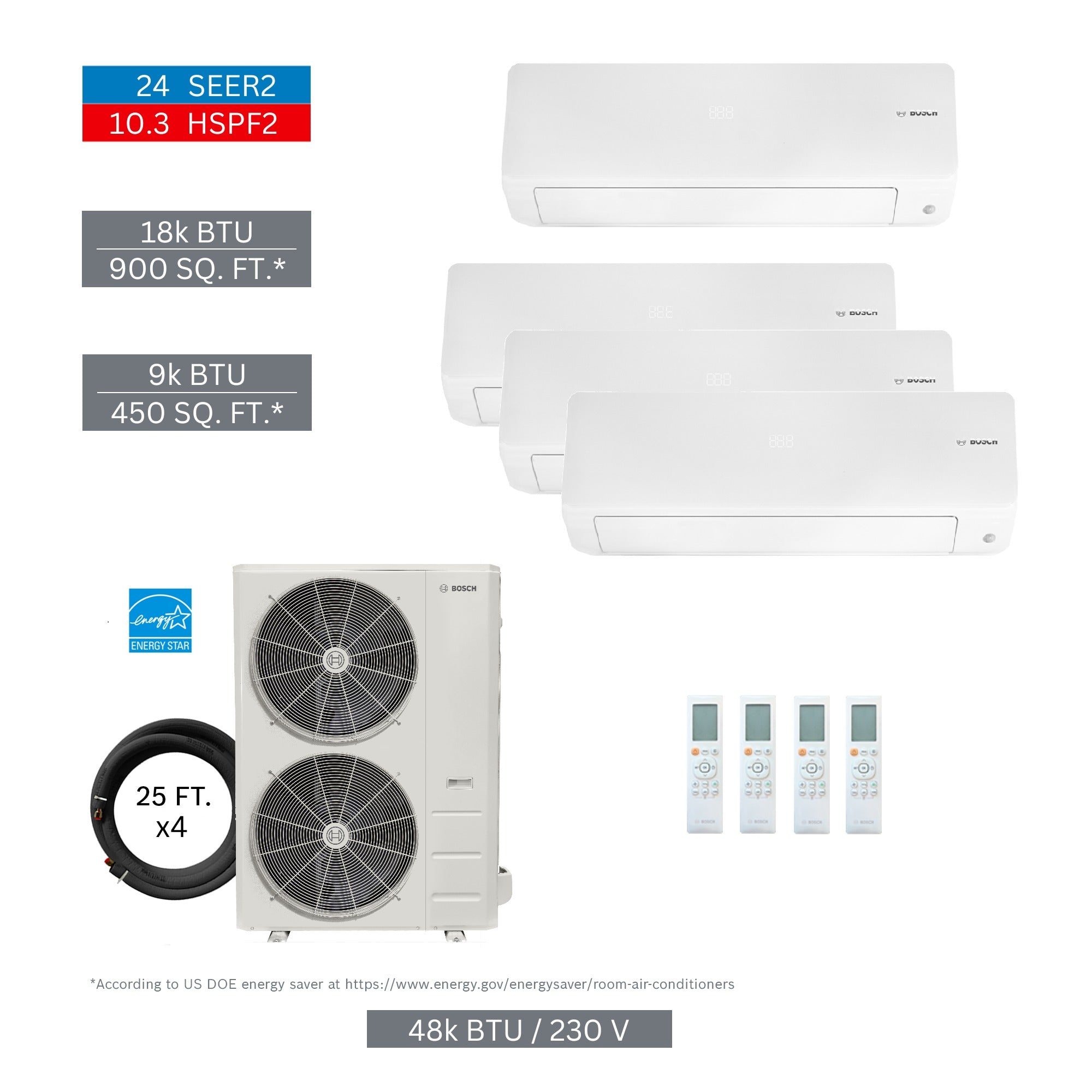

The BOSCH 8733980417 is a complete 48000 BTU multi-zone ductless mini-split system kit designed for four-zone residential or light commercial comfort applications. This G4 generation kit includes three 9000 BTU indoor air handlers, one 18000 BTU indoor air handler, one outdoor condensing unit, and pre-cut 25-foot line sets for each zone. Licensed HVAC technicians install this system where zoned, ductless climate control is required across multiple rooms or areas. The kit format simplifies procurement by bundling matched indoor and outdoor components with refrigerant line sets in a single order.

This kit is suited for residential installations requiring independent temperature control across four separate zones. Typical applications include multi-room homes, additions, or light commercial spaces where ductwork installation is impractical. The three 9000 BTU air handlers handle smaller rooms or individual offices, while the 18000 BTU unit covers larger living areas or open-plan spaces. All components are factory-matched to ensure proper system operation.

Key Features

• 48000 BTU total system capacity split across four independent zones
• Three 9000 BTU indoor air handlers (part 8733962672) for smaller zones
• One 18000 BTU indoor air handler (part 8733962674) for larger zones
• One outdoor condensing unit (part 8733962698) matched to the full kit
• Four 25-foot pre-cut line sets included (three part 8733951010, one part 8733951011)
• G4 generation components for current-production compatibility

Compatibility

This kit includes matched components: indoor units 8733962672 (qty 3) and 8733962674 (qty 1), outdoor unit 8733962698, and line sets 8733951010 (qty 3) and 8733951011 (qty 1). All components are factory-matched within this kit configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA 608 certification for refrigerant handling. Shut off all electrical power to the installation area before mounting indoor or outdoor units and making electrical connections. Follow all local mechanical and electrical codes during line set routing, flaring, and system evacuation. Do not operate the system without first achieving proper vacuum levels and verifying refrigerant circuit integrity.

Technical Specifications

• Total System Capacity: 48000 BTU/h
• Number of Zones: 4
• Zone 1 Capacity (qty 3): 9000 BTU/h
• Zone 2 Capacity (qty 1): 18000 BTU/h
• Line Set Length: 25 feet per zone
• Kit Net Weight: 291.06 pounds
• Kit Gross Weight: 374.12 pounds
• Generation: G4
• UPC: 52575023175

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980417
