Bosch 8733980412 24K Mini Split Heat Pump Kit 21.0 SEER2

Product Description

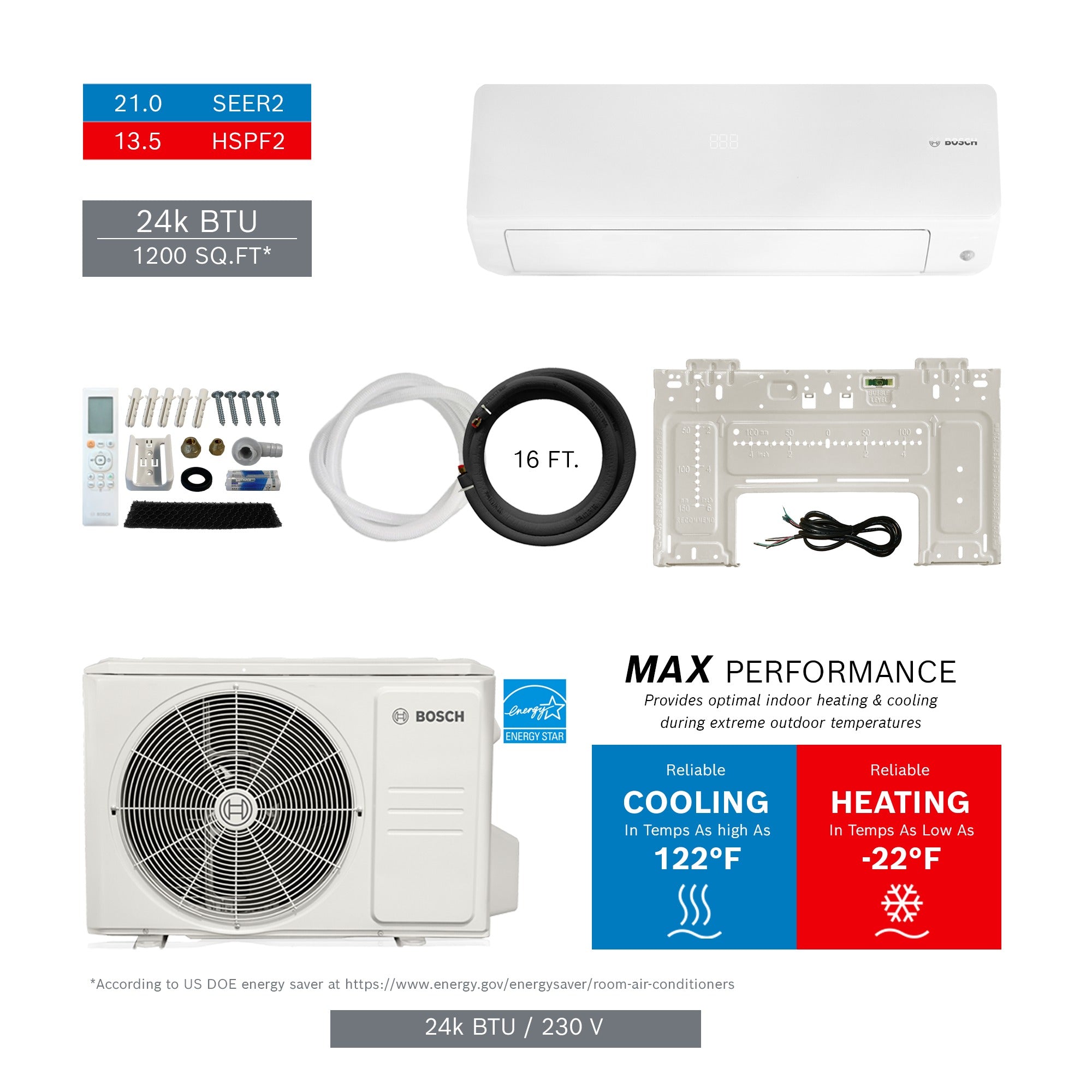

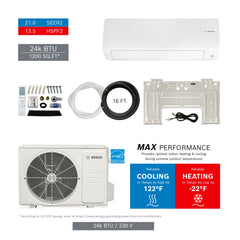

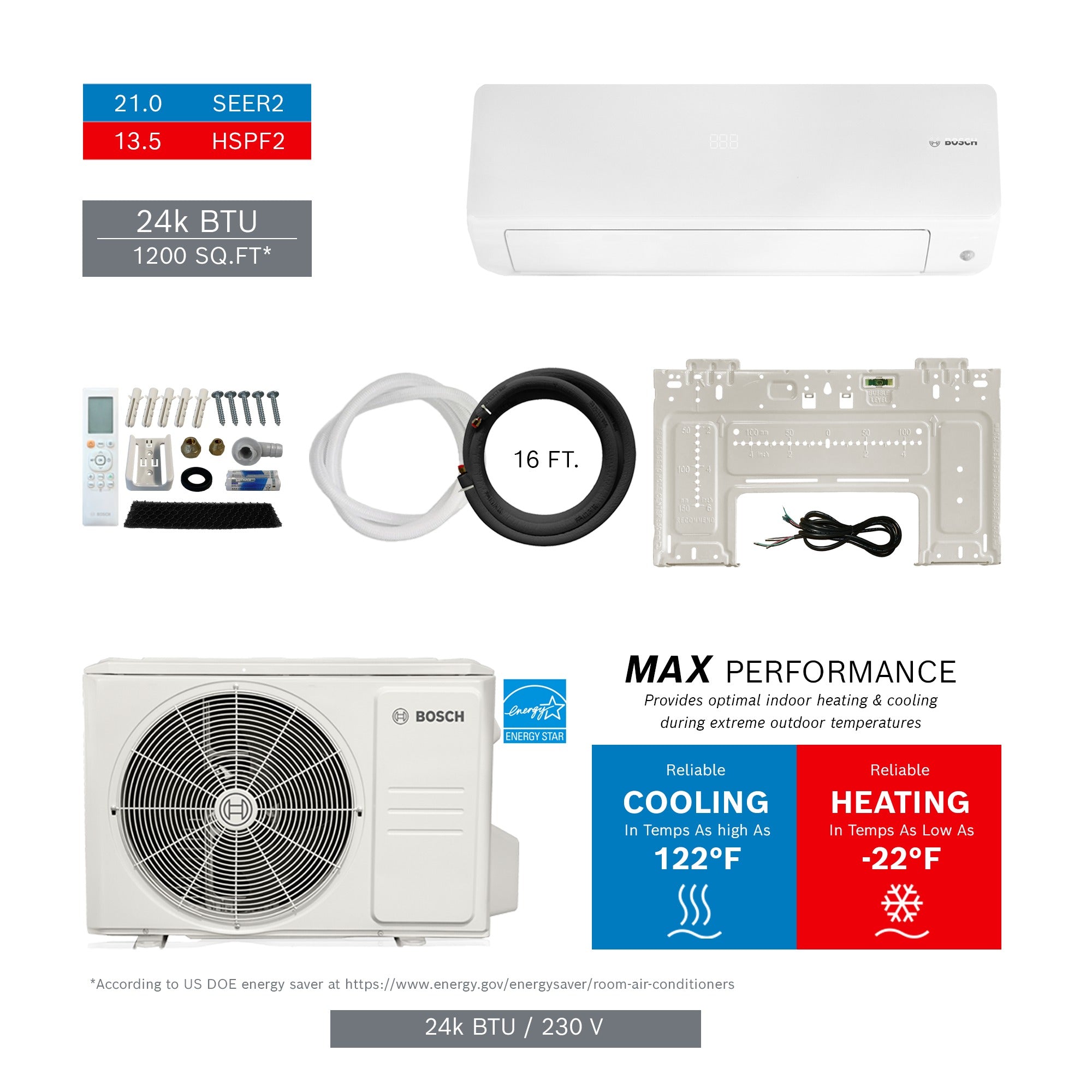

The BOSCH 8733980412 is a single-zone mini split heat pump kit rated at 24,000 BTU/h for both heating and cooling. The kit ships as a complete matched system including an indoor air handler, an outdoor condensing unit, and a 16-foot line set, so installers have everything needed to commission a single zone from one order. Rated at 21.0 SEER2, 13.0 EER2, and 13.5 HSPF2 by AHRI, it qualifies as an Energy Star certified system. Operating on 230-volt single-phase power, the system is suited for residential and light-commercial applications where a high-efficiency ductless solution is required.

This kit is designed for single-zone ductless installations in residential homes, condominiums, additions, or light-commercial spaces where a full ducted system is impractical. The 16-foot line set included in the kit covers typical wall-penetration scenarios in standard construction. The matched indoor unit (IDU), outdoor unit (ODU), and line set ship together as a factory-configured set, reducing sourcing complexity for HVAC contractors. The system provides year-round comfort with both cooling and heat pump heating capability, supported by a COP of 3.42 at 47 degrees F.

Key Features

• 24,000 BTU/h AHRI-rated single-zone mini split heat pump system
• 21.0 SEER2 and 13.0 EER2 cooling efficiency ratings
• 13.5 HSPF2 heating efficiency with 3.42 COP at 47 degrees F
• Energy Star certified matched system
• 230-volt operation for standard residential electrical service
• Complete kit includes indoor unit, outdoor unit, and 16-foot line set

Compatibility

This kit is a factory-matched system consisting of indoor unit 8733962675, outdoor unit 8733962691, and line set 8733951018. All three components are pre-specified to work together as an AHRI-certified combination and should not be substituted with unmatched components.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut off and lock out all electrical power at the disconnect before connecting refrigerant lines or making low-voltage wiring connections. Line set routing, electrical disconnect sizing, and circuit protection must comply with the NEC and all applicable local codes. Do not mix components from this matched kit with components from a different system family, as doing so will void AHRI certification and may affect equipment performance and warranty.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• SEER2: 21.0
• EER2: 13.0
• HSPF2: 13.5
• COP at 47 degrees F: 3.42
• Voltage: 230 volts
• Line Set Length: 16 feet
• Energy Star Certified: Yes
• Kit Net Weight: 179.72 pounds
• Kit Gross Weight: 237.65 pounds
• UPC: 52575023120

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980412
