Bosch 8733980409 Single-zone Mini-split 18000 Btu/h 230V

Product Description

The BOSCH 8733980409 is a Generation 4 single-zone mini-split system rated at 18,000 BTU/h, designed for maximum-performance residential and light-commercial heating and cooling applications. Operating on 230 volts, this system achieves a SEER2 rating of 21.4 and an EER2 of 12.5, placing it firmly in the high-efficiency tier. The heating performance is rated at HSPF2 11.0 with a COP of 3.26 at 47 degrees F. The kit ships as a complete assembly including an indoor unit, outdoor unit, and a 25-foot line set, making it a streamlined solution for new installations. It carries Energy Star certification. Licensed HVAC technicians handle installation and system commissioning.

This system is suited for single-zone residential rooms, additions, sunrooms, garages, and small commercial spaces where a ducted system is impractical or not present. The 25-foot pre-measured line set supports straightforward wall-penetration installations where the outdoor unit can be positioned nearby. The Generation 4 platform is designed for high-efficiency operation across a broad outdoor temperature range, making it appropriate for both cooling-dominant and heating-dominant climates. The complete kit format reduces sourcing steps for installing contractors.

Key Features

• 18,000 BTU/h capacity for single-zone heating and cooling
• SEER2 21.4 and EER2 12.5 for high-efficiency cooling performance
• HSPF2 11.0 and COP 3.26 at 47 degrees F for efficient heating operation
• Energy Star certified

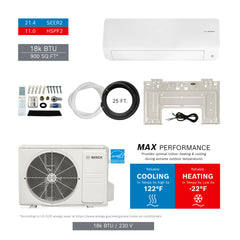

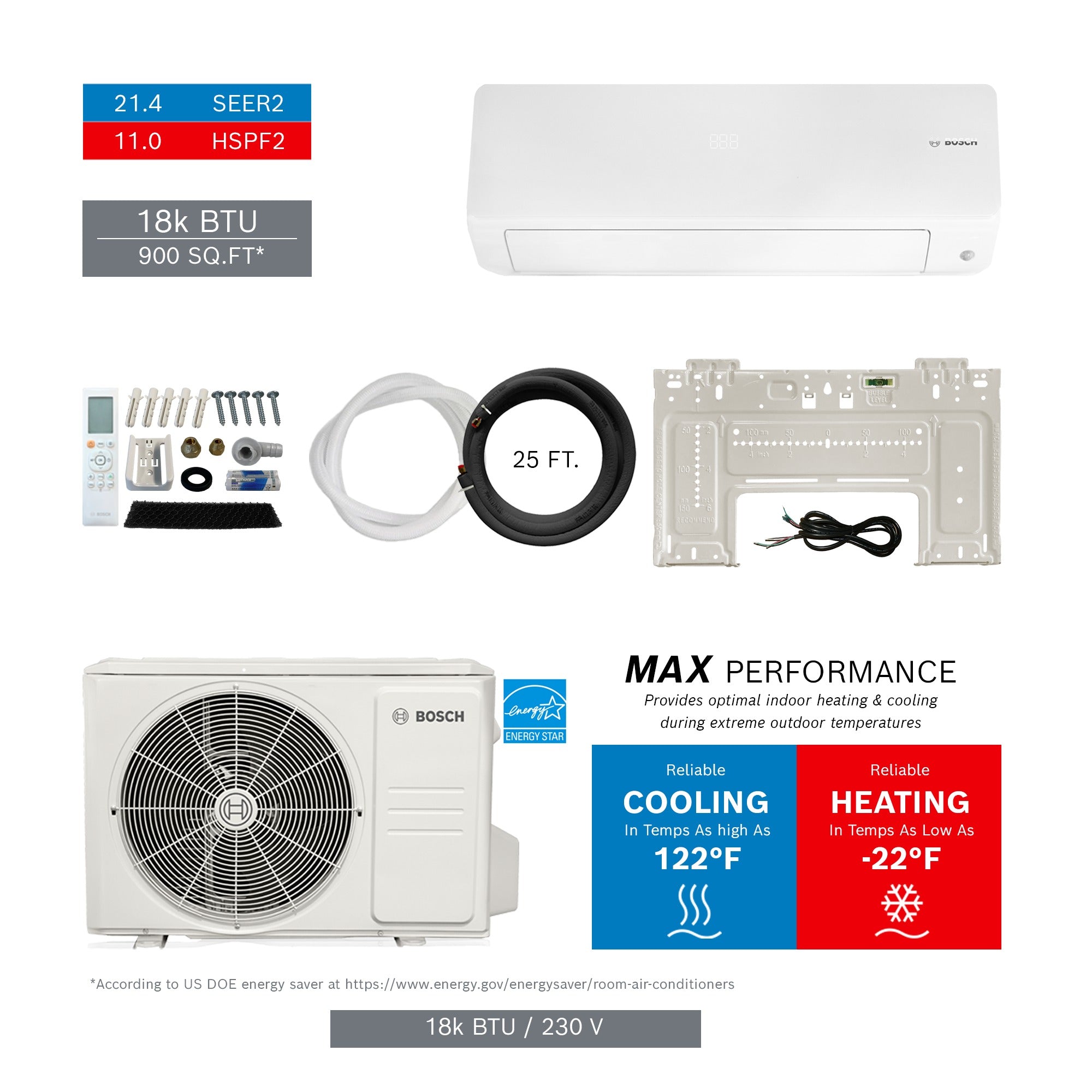

• Complete kit includes indoor unit (8733962674), outdoor unit (8733962690), and 25-foot line set (8733951011)
• 230-volt operation suitable for standard residential single-phase service

Compatibility

This kit includes indoor unit 8733962674, outdoor unit 8733962690, and line set 8733951011, matched and rated together as a single-zone maximum-performance system under AHRI certification at 18,000 BTU/h.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before handling any system components. The refrigerant circuit must be pressure-tested and properly evacuated before charging; refrigerant handling requires EPA Section 608 certification. Verify that the electrical supply circuit matches the 230-volt system requirement and is properly sized and protected before energizing.

Technical Specifications

• Capacity: 18,000 BTU/h
• SEER2: 21.4
• EER2: 12.5
• HSPF2: 11.0
• COP at 47 degrees F: 3.26
• Voltage: 230 volts
• Line Set Length: 25 feet
• Energy Star Certified: Yes
• Kit Net Weight: 137.06 pounds
• Kit Gross Weight: 189.25 pounds
• UPC: 52575023090
• AHRI Certified: Yes

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980409
