Bosch 8733980408 Single Zone Mini Split Kit 12000 Btu/h

Product Description

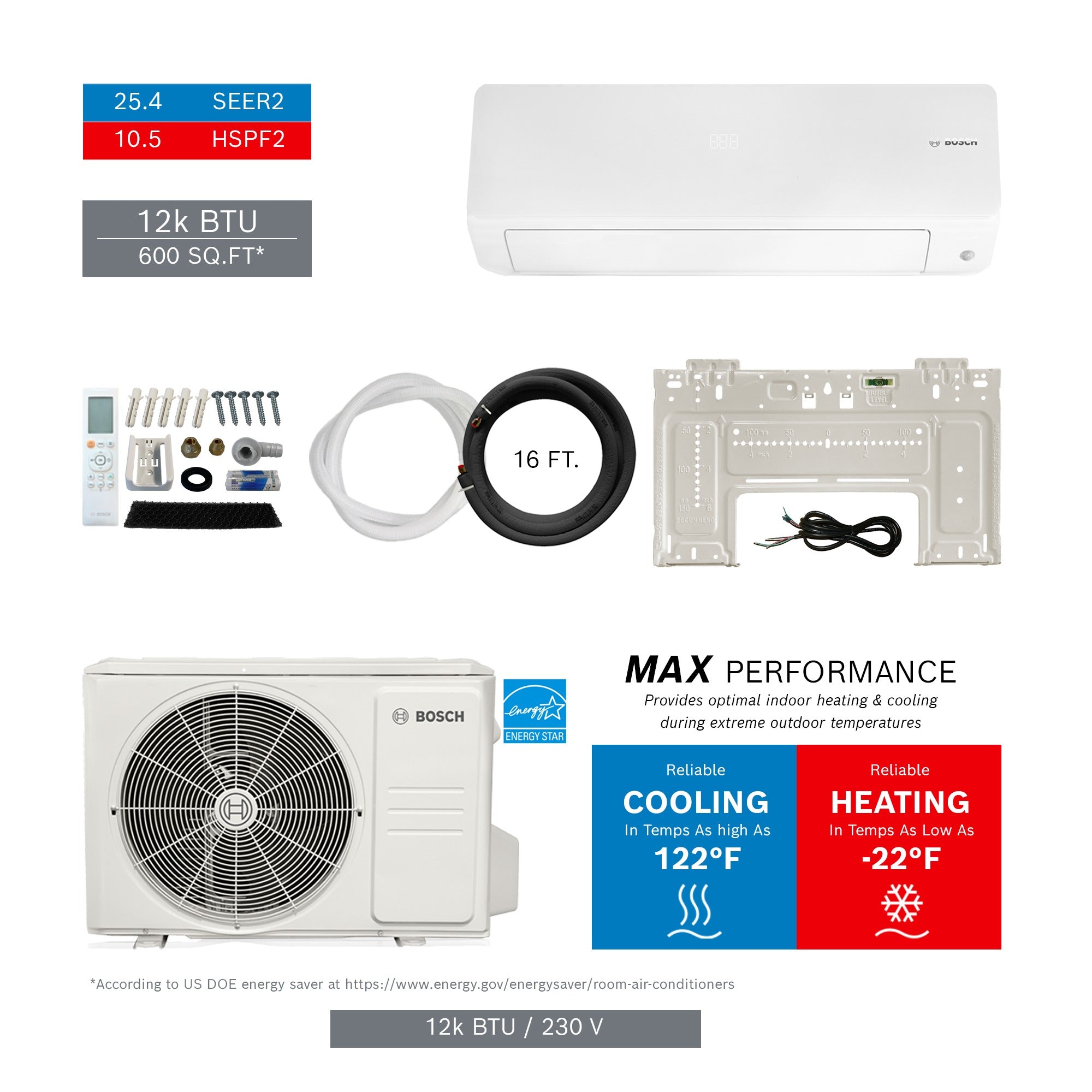

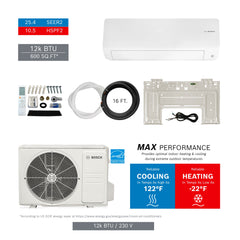

The BOSCH 8733980408 is a single-zone mini split kit rated at 12000 BTU/h for both heating and cooling applications. Running on 230 volts, this fourth-generation system ships as a complete kit including one indoor unit, one outdoor unit, and a 16-foot line set, so the installing technician has all core components in one order. AHRI-certified efficiency ratings stand at SEER2 25.4 and EER2 13.4 for cooling, with an HSPF2 of 10.5 and a COP of 3.76 at 47 degrees F for heating. The kit is Energy Star qualified and is intended for installation by licensed HVAC technicians.

This kit is suited for single-zone residential or light-commercial applications where a high-efficiency ductless system is required. The included 16-foot line set covers standard short-run installations such as a single room, apartment, or added living space. Because the kit bundles the indoor air handler, outdoor condensing unit, and line set together, it reduces sourcing time on new construction or retrofit projects. The system is designed for wall-mounted indoor unit placement in typical residential split system configurations.

Key Features

• Complete kit includes indoor unit (8733962673), outdoor unit (8733962689), and line set (8733951017)
• AHRI-rated at SEER2 25.4 and EER2 13.4 for high-efficiency cooling
• HSPF2 10.5 and COP 3.76 at 47 degrees F for heating performance
• Energy Star certified for residential efficiency programs
• 12000 BTU/h capacity suitable for single-zone applications
• 16-foot line set included for standard short-run installations

Compatibility

This kit is a factory-matched single-zone ductless mini split system. Included components are indoor unit 8733962673, outdoor unit 8733962689, and line set 8733951017. Designed for use as a complete matched system and not intended to be mixed with components from other kit configurations.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before connecting or servicing any components. The outdoor unit location must provide adequate clearance for airflow and drainage per the manufacturer requirements and local mechanical codes. Do not operate the system before verifying that all refrigerant line connections are leak-tested and that electrical supply matches the 230-volt specification of the unit.

Technical Specifications

• Capacity: 12000 BTU/h
• Voltage: 230 volts
• SEER2: 25.4
• EER2: 13.4
• HSPF2: 10.5
• COP at 47 degrees F: 3.76
• Energy Star: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 99.62 pounds
• Kit Gross Weight: 146.96 pounds
• UPC: 52575023083
• AHRI Certified: Yes

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980408
