Bosch 8733980407 Single Zone Mini Split Kit 12000 Btu/h

Product Description

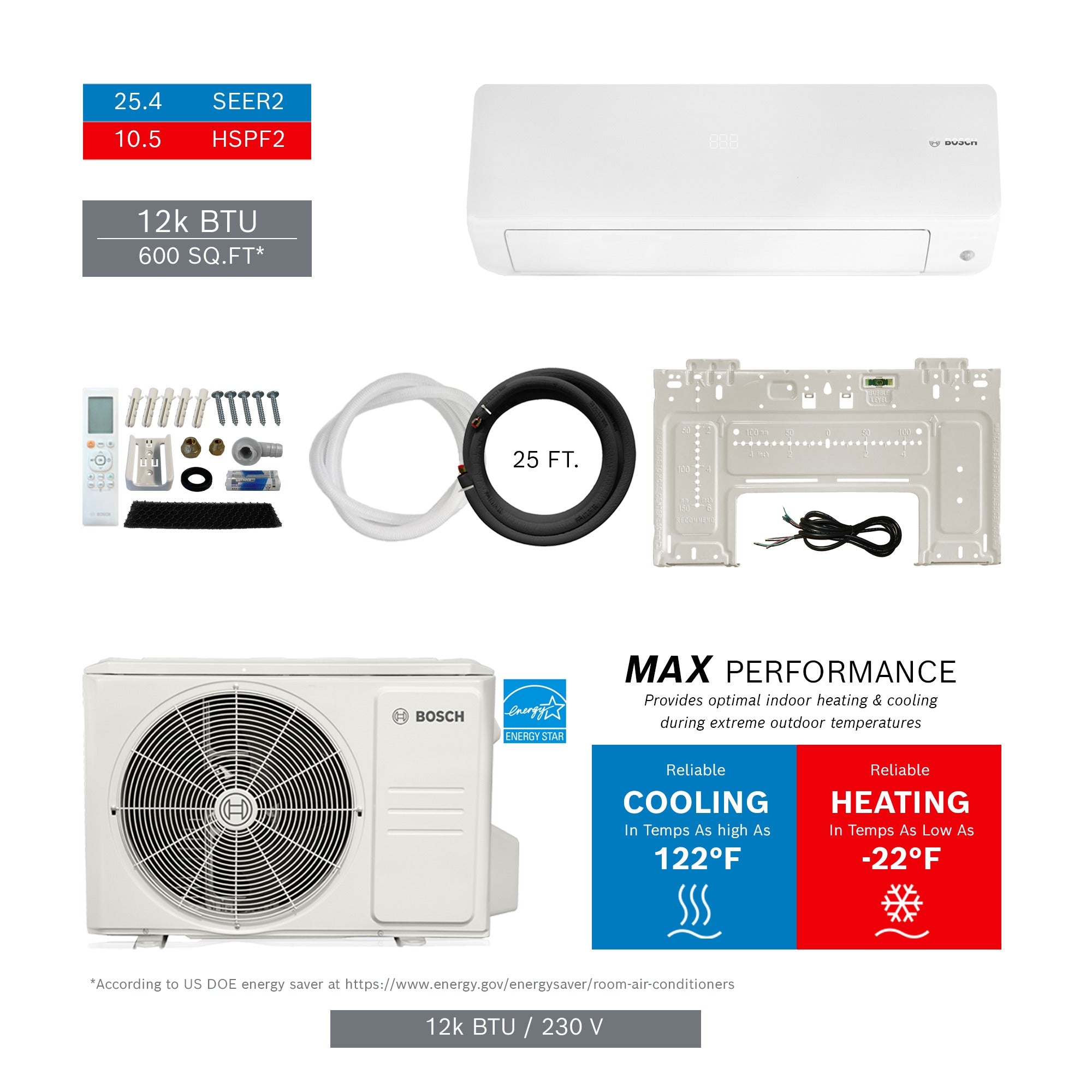

The BOSCH 8733980407 is a single-zone mini split system kit rated at 12000 BTU/h, designed for residential and light commercial heating and cooling applications. Operating on 230 volts, the kit achieves a SEER2 rating of 25.4 and an HSPF2 of 10.5, placing it in the high-efficiency tier of ducted and ductless climate control equipment. The system carries Energy Star certification. It ships as a complete kit including an indoor unit, outdoor unit, and a 25-foot line set, reducing jobsite sourcing time for installing contractors.

This kit is suited for single-zone applications where an independent, high-efficiency heating and cooling source is needed. Typical installations include room additions, converted spaces, server rooms, and residential bedrooms or living areas where extending existing ductwork is impractical. The 25-foot line set included in the kit accommodates standard residential installation layouts without requiring additional line set components in most cases. The system is appropriate for installation by a licensed HVAC technician in both new construction and retrofit scenarios.

Key Features

• 12000 BTU/h capacity for single-zone heating and cooling
• SEER2 25.4 and EER2 13.4 for high-efficiency cooling performance
• HSPF2 10.5 and COP at 47 degrees F of 3.76 for efficient heating
• Energy Star certified
• Complete kit includes indoor unit (8733962673), outdoor unit (8733962689), and 25-foot line set (8733951011)
• 230-volt operation suitable for standard residential electrical service

Compatibility

This kit includes component part numbers 8733962673 (indoor unit), 8733962689 (outdoor unit), and 8733951011 (line set) as a factory-matched single-zone mini split system. Install only the matched components supplied within this kit to maintain AHRI certification and rated performance.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before beginning any work on indoor or outdoor units. Line set connections, refrigerant charge verification, and electrical terminations must comply with NEC requirements and local mechanical codes. Do not modify the supplied line set length or substitute non-matched components, as doing so may void the AHRI rating and manufacturer warranty.

Technical Specifications

• Capacity: 12000 BTU/h
• Voltage: 230 volts
• SEER2: 25.4
• EER2: 13.4
• HSPF2: 10.5
• COP at 47 degrees F: 3.76
• Energy Star Certified: Yes
• Line Set Length: 25 feet
• Kit Net Weight: 105.53 pounds
• Kit Gross Weight: 152.87 pounds
• UPC: 52575023076

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980407
