Bosch 8733980406 Single Zone Mini Split Kit 9000 Btu/h

Product Description

The BOSCH 8733980406 is a complete single-zone mini split system kit rated at 9000 BTU/h and designed for 230-volt residential and light-commercial applications. The kit ships with an indoor air handler, an outdoor condensing unit, and a 16-foot line set, giving installers everything needed to complete a standard installation in one order. With a SEER2 rating of 27.4 and an EER2 of 15.2, this system meets Energy Star requirements and delivers high-efficiency heating and cooling performance. A heating seasonal performance factor (HSPF2) of 12.5 and a COP at 47 degrees F of 3.76 confirm strong cold-weather heating capability. Licensed HVAC technicians typically install this kit in bedrooms, home offices, or small commercial spaces where ducted systems are impractical.

This kit is suited for single-zone installations in residential and light-commercial buildings. The included 16-foot line set covers typical wall-penetration setups where the outdoor unit is mounted close to the conditioned space. The system operates on 230-volt power, which is standard for dedicated mini split circuits. Component part numbers included in this kit are indoor unit 8733962672, outdoor unit 8733962688, and line set 8733951016, allowing separate component identification for warranty and service purposes.

Key Features

• 9000 BTU/h cooling and heating capacity for single-zone applications
• SEER2 27.4 and EER2 15.2 efficiency ratings meet Energy Star certification requirements
• HSPF2 12.5 and COP of 3.76 at 47 degrees F for reliable heating performance in cooler climates

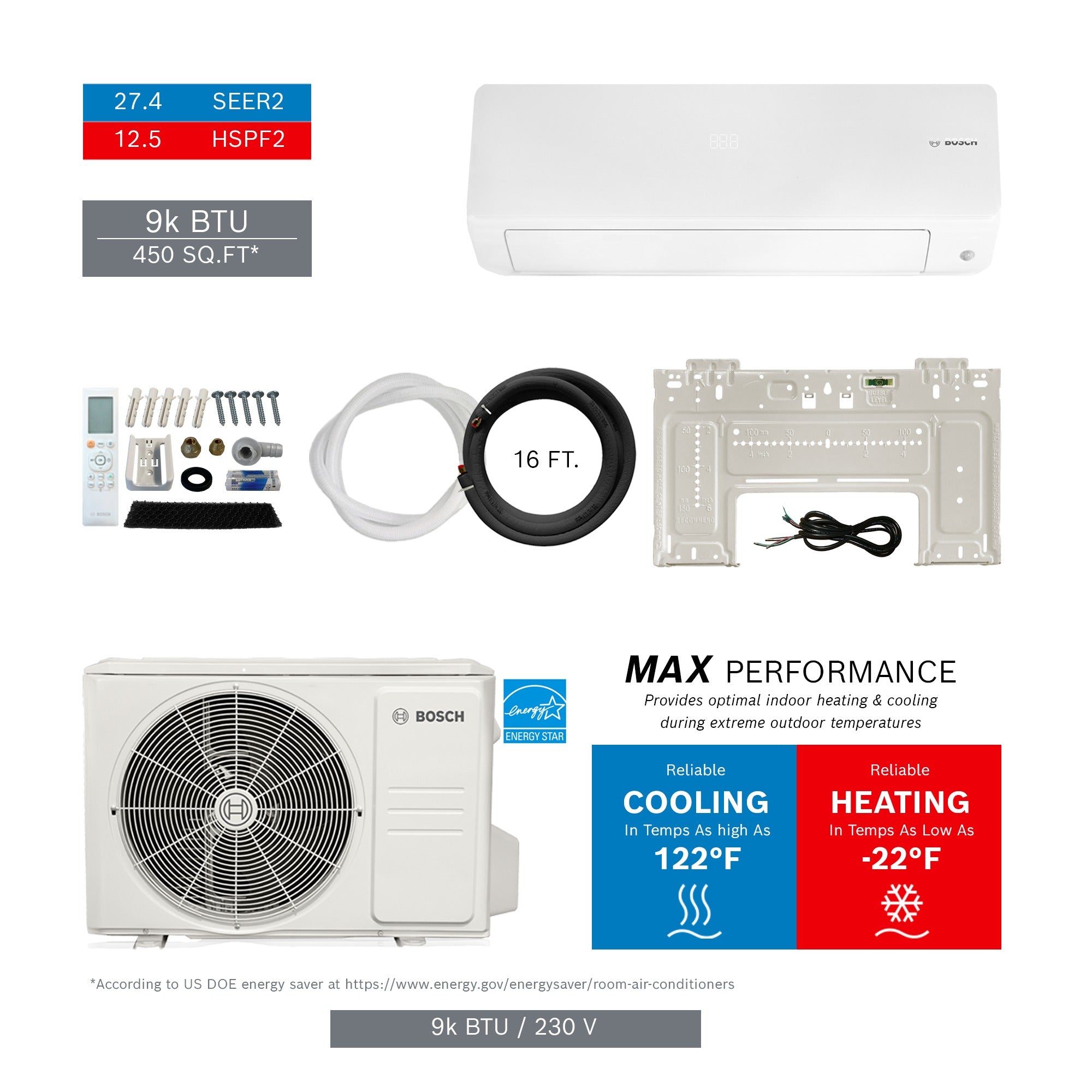

• Complete kit includes indoor unit, outdoor unit, and 16-foot line set
• 230-volt operation compatible with standard dedicated mini split branch circuits
• AHRI-certified performance ratings for verified field efficiency

Compatibility

This kit includes indoor unit 8733962672, outdoor unit 8733962688, and line set 8733951016 as factory-matched components. These components are paired and rated together under AHRI certification for the published efficiency values.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for refrigerant handling. Disconnect and lock out all electrical power before any work on the indoor or outdoor unit. The outdoor unit should be mounted on a level pad or wall bracket with adequate clearance per the manufacturer installation manual and local mechanical codes. Do not exceed the included line set length without consulting engineering guidelines for refrigerant charge adjustment.

Technical Specifications

• Capacity: 9000 BTU/h
• Voltage: 230 volts
• SEER2: 27.4
• EER2: 15.2
• HSPF2: 12.5
• COP at 47 degrees F: 3.76
• Energy Star Certified: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 102.02 pounds
• Kit Gross Weight: 149.58 pounds
• UPC: 52575023069

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980406
