Bosch 8733980400 24000 Btu Single Zone Mini Split 230V

Product Description

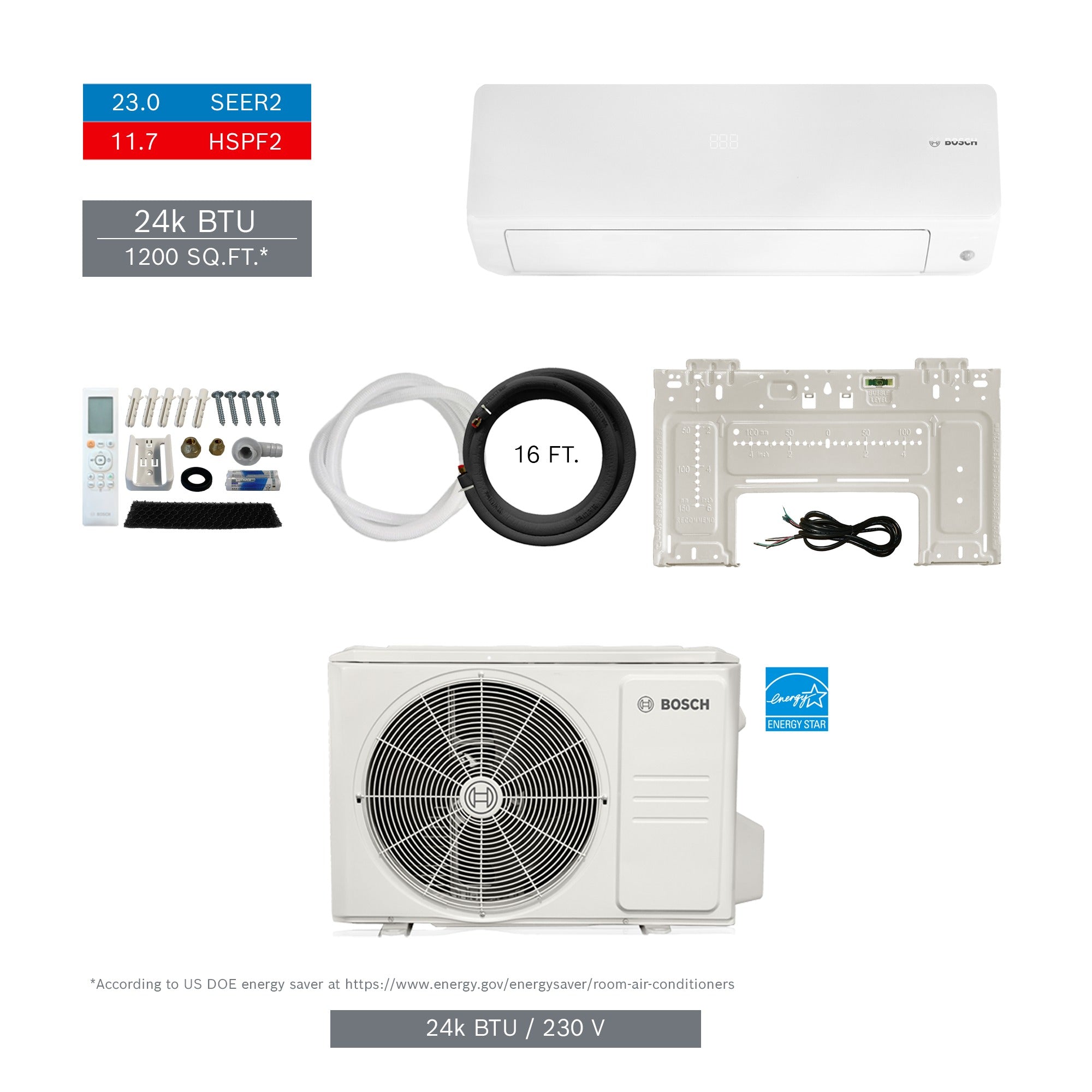

The BOSCH 8733980400 is a 24,000 BTU single-zone mini split system designed for residential and light-commercial heating and cooling applications. This Generation 4 system operates on 230 volts and ships as a complete kit, including an indoor air handler, outdoor condensing unit, and a 16-foot line set. Rated at SEER2 23.0 and HSPF2 11.7, it meets Energy Star requirements, making it a strong candidate for utility rebate programs. The EER2 rating of 14.0 and COP at 47 degrees F of 3.96 reflect solid part-load and heating performance for its class.

This system is suited for single-room or single-zone installations where a ducted system is impractical or unavailable. Typical applications include bedroom additions, converted garages, sunrooms, accessory dwelling units, and small commercial spaces. The included 16-foot line set covers standard wall-penetration distances in most single-story or straightforward two-story installations. The kit format reduces sourcing time by bundling the indoor unit, outdoor unit, and line set as matched components.

Key Features

• 24,000 BTU capacity for single-zone heating and cooling
• SEER2 23.0 efficiency rating meets current federal minimum standards and qualifies for Energy Star
• HSPF2 11.7 for efficient cold-weather heating performance
• EER2 14.0 steady-state cooling efficiency
• COP of 3.96 at 47 degrees F for reliable heating in mild to moderate climates
• Includes matched indoor unit, outdoor unit, and 16-foot line set as a complete kit

Compatibility

This kit includes indoor unit 8733962675, outdoor unit 8733962687, and line set 8733951018 as factory-matched components. All three are engineered to work together as a complete single-zone system.

Installation Notes

Installation should be performed by an EPA 608-certified HVAC technician. Shut off all electrical power at the disconnect before making any wiring connections to the indoor or outdoor unit. Refrigerant line sets must be properly leak-tested and evacuated before charging; do not add refrigerant without first pulling a deep vacuum. Local codes and the manufacturer installation manual govern final line set routing, electrical disconnect sizing, and condensate drainage requirements.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER2: 23.0
• EER2: 14.0
• HSPF2: 11.7
• COP at 47 degrees F: 3.96
• Energy Star Certified: Yes
• Line Set Length: 16 feet
• Kit Net Weight: 171.56 pounds
• Kit Gross Weight: 228.62 pounds
• UPC: 52575023007

Standard Information

• Brand: BOSCH
• Manufacturer Part Number: 8733980400
